2-SEAL™ THERMAL WING NUT ANCHOR

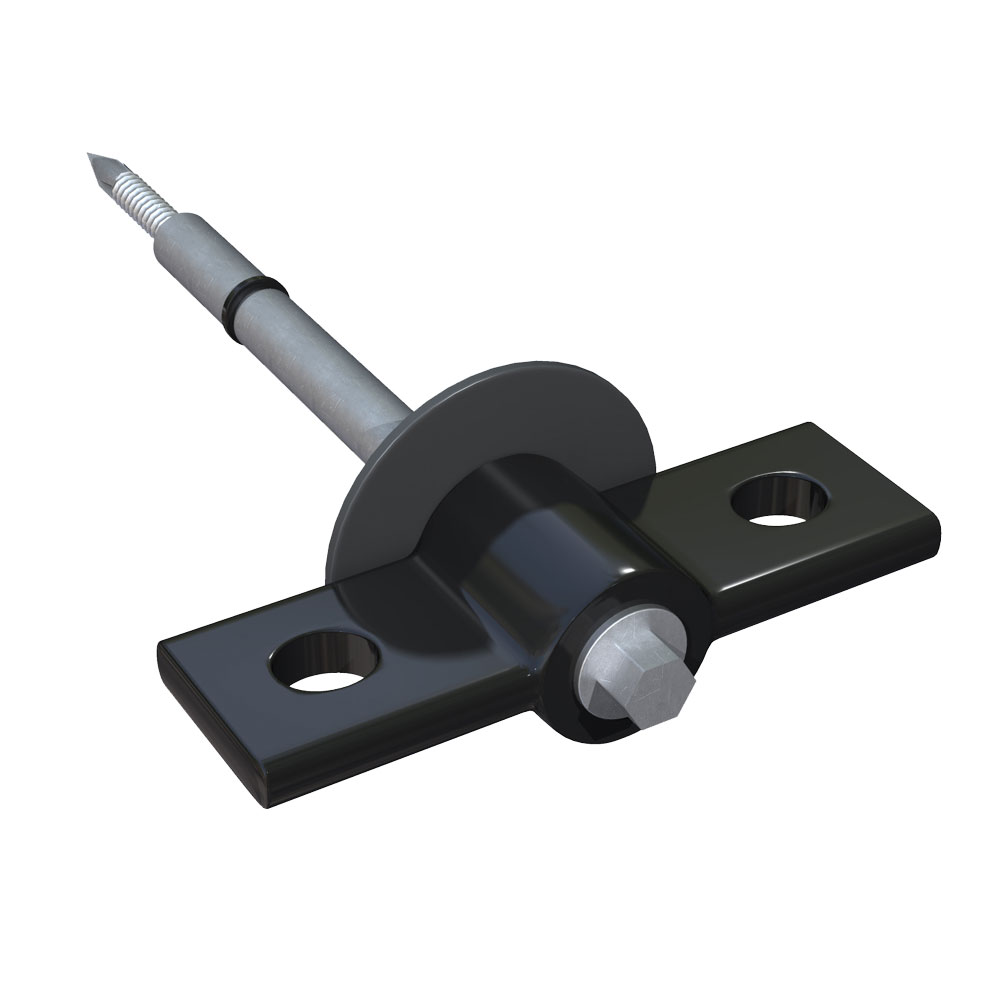

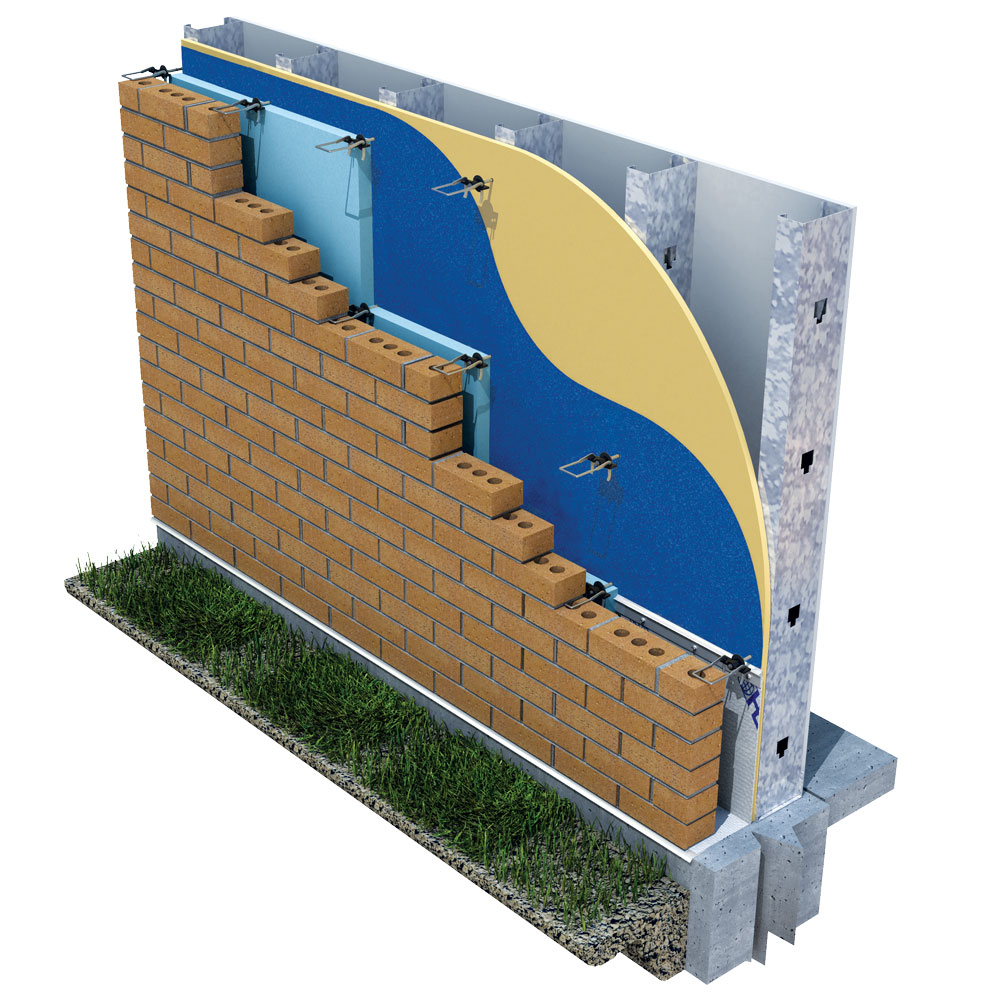

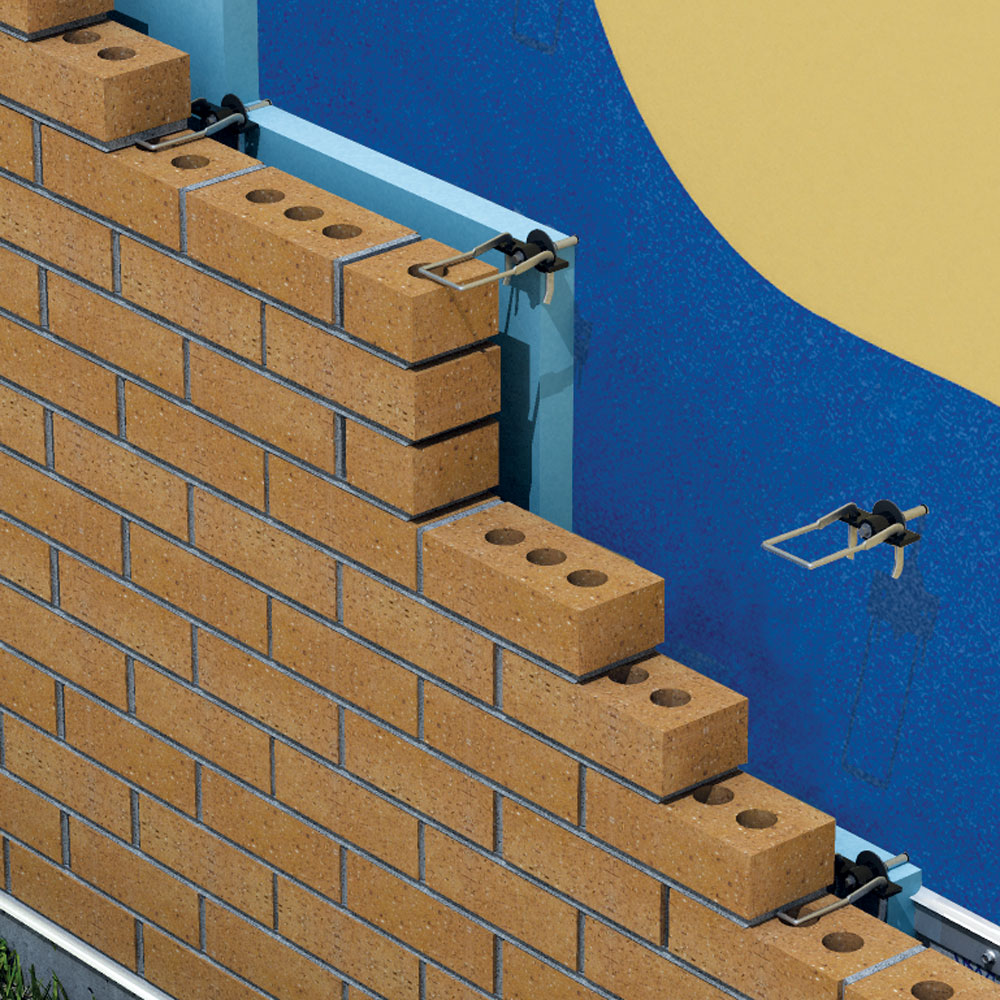

The Thermal 2-Seal™ Wing Nut Anchor is an innovative single screw veneer tie for metal stud construction, it features a dual-diameter barrel with factory-installed EPDM washers to seal both the face of the insulation and the air/vapor barrier, and unique Thermal Wings that are designed to decrease thermal transfer through rigid insulation.

• The projecting Thermal Wings:
  • Are made from steel encapsulated in plastic to create a thermal break, the plastic is highly flame resistant

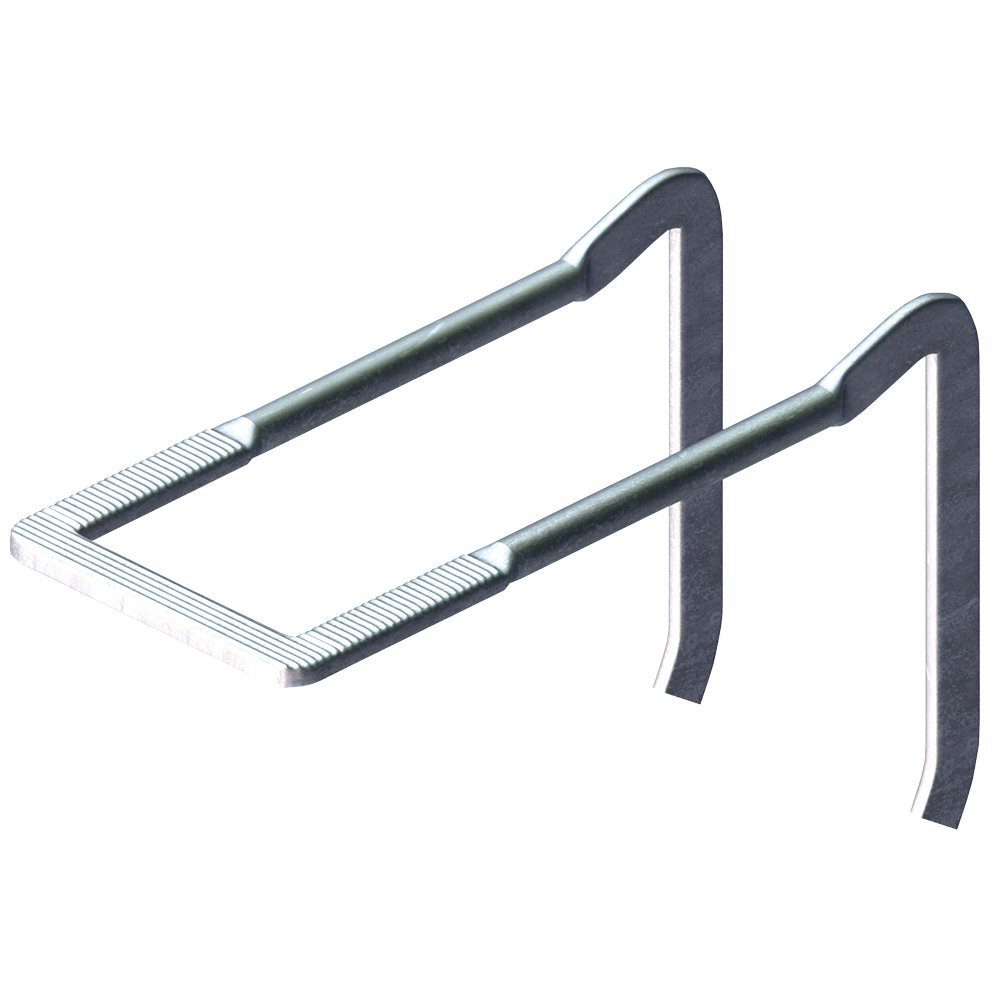

  • Accept a 2X-HOOK™ or Seismic 2X-HOOK™ and spin to easily orient pintles/hooks parallel to masonry joints
  • Up to 1/2” of inward adjustability to account for variations in wall thickness
• H&B's Stainless Steel barrels have one-third the thermal conductivity of carbon steel barrels and one-seventh the thermal conductivity of the zinc barrels of our competitors products (refer to chart below)

• Made with a 5/16” hex head, install with a standard hex socket

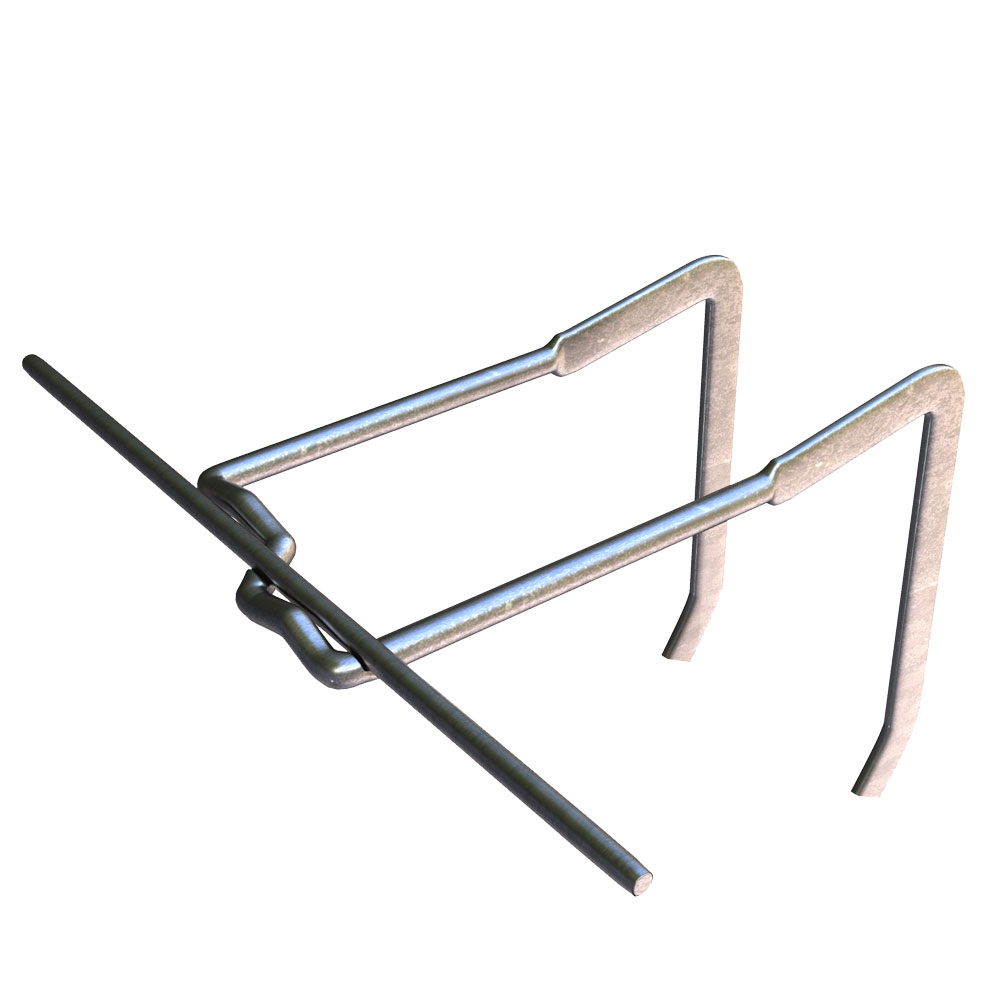

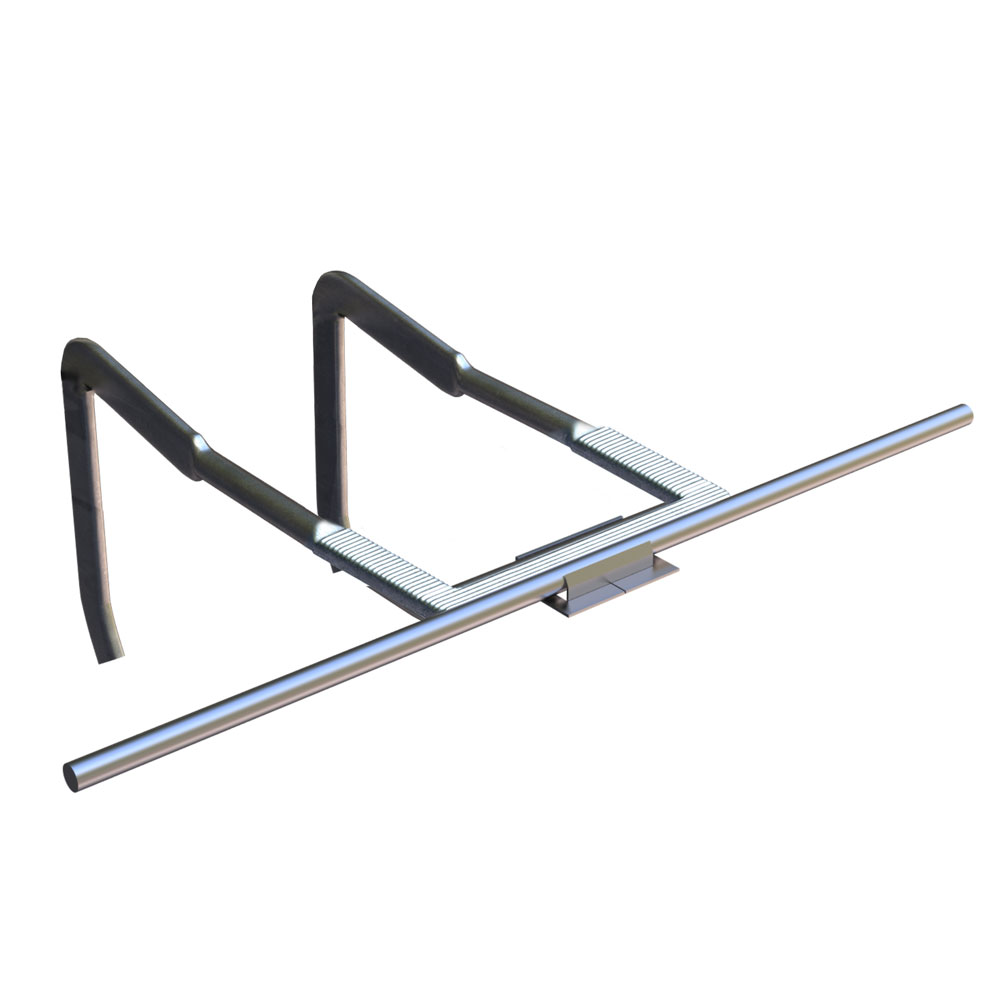

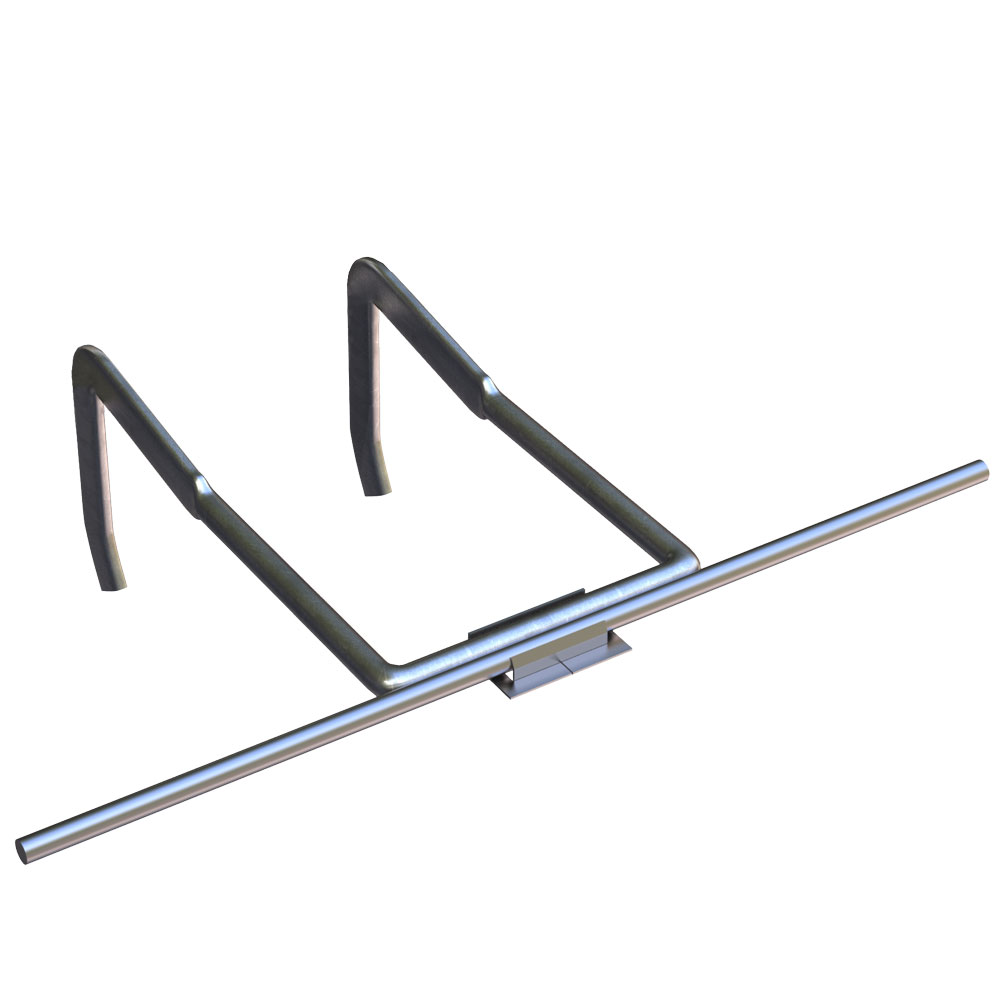

• Adaptable for seismic zones with the simple addition of 9 gauge or 3/16" continuous wire and a 2X-HOOK™ Seismic Pintle (SH)

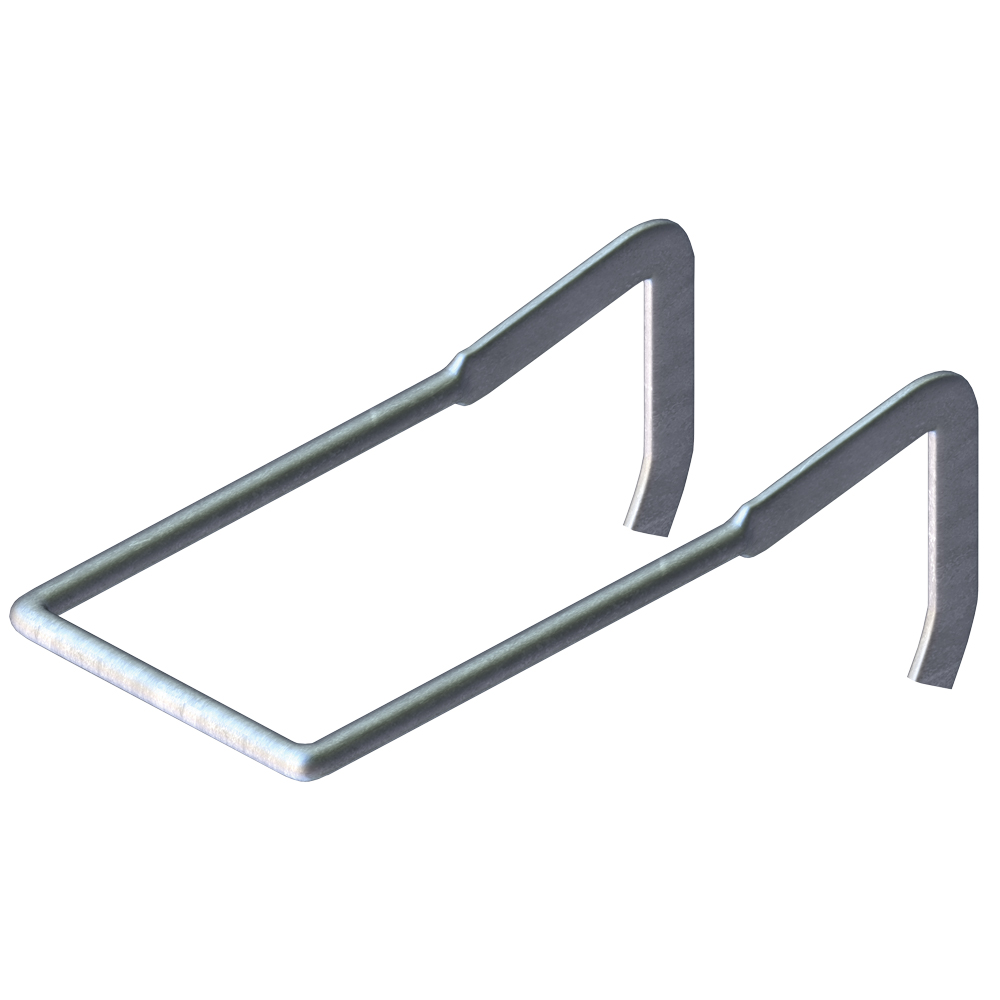

The compressed leg 2X-HOOK™ has been tested and designed to withstand over 200-lbf, in tension or compression, at maximum allowed offset (ACI 530 6.2.2.5.5.4) of 1-1/4” (disengagement of the pintle from the veneer anchor). These results exceed BIA recommendations and the capabilities of standard “round wire” hooks or pintles by over 100%!

• NOTE: 2X-HOOK™ CAN BE INSTALLED WITH LEGS POINTING UP OR DOWN.
• The embedded portion of the 2X-Hook is 3/16”DIA round wire, satisfying the code requirement that the mortar bed thickness (typically 3/8”) must be twice the diameter of the wire.
• 2X-Hook: U.S. Pat. No. 8,613,175 Test results available upon request.

AVAILABLE FINISHES:

• Type 304 Stainless Steel Barrel with Polymer Coated Screw

DIMENSIONS:

• Available in 5/8", 1", 1-1/2", 2", 2-1/2", 3", 3-1/2", 4", 4-1/2", 5", 5-1/2", 6", and 6-1/2" sizes (Equal to thickness of wallboard and/or insulation)


NOTES:

• Thermal Concrete 2-Seal™ Wing Nut Anchor is available for concrete, CMU, masonry or wood stud backup.
• H&B recommends 16" x 16" spacing
• U.S. Patent Numbers. 7,415,803
