2X-SH COMPRESSED LEG SEISMIC HOOK

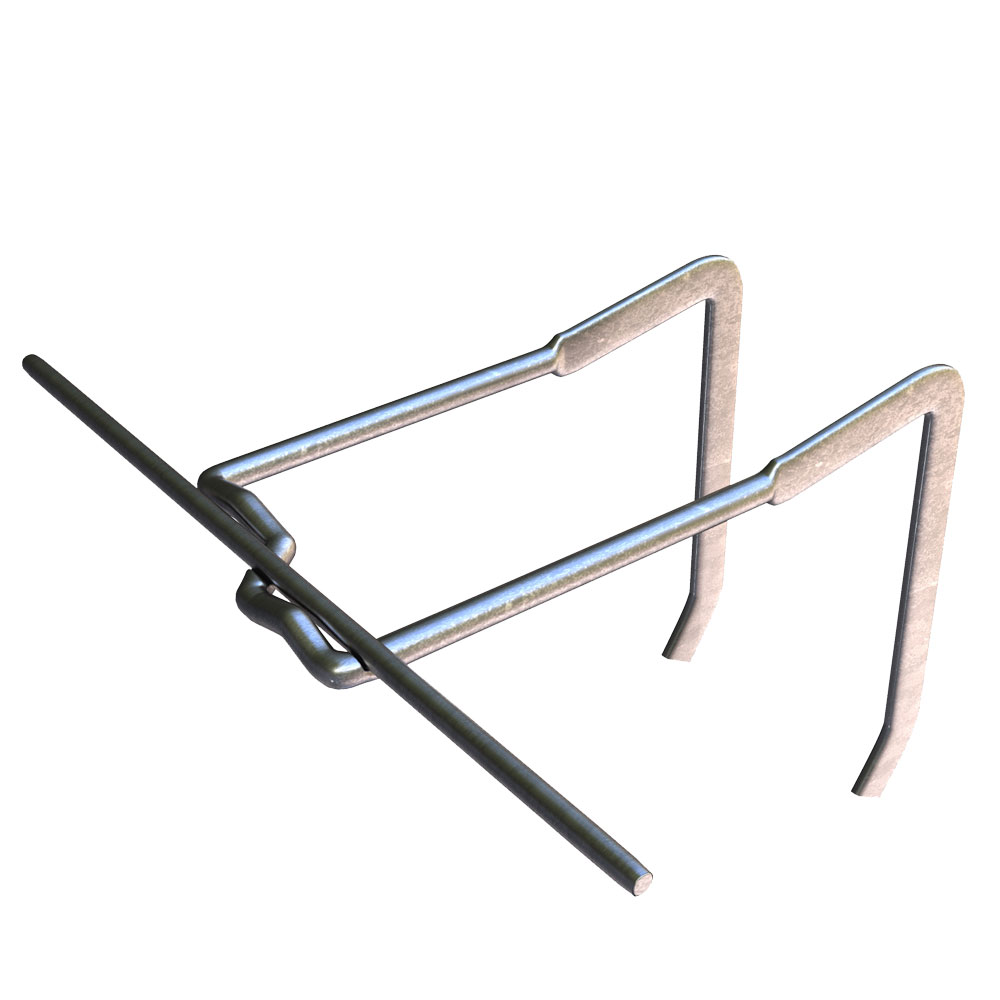

Hohmann & Barnard's SH-Seismic Hook:

• This hook is "swaged" (indented) in two places to accommodate either a 9 gauge or 3/16" continuous wire
• A channel is formed that braces the continuous wire and holds it in place
• Suitable for standard 3/8" joints
• Rectangular hook/pintle acts as a vertically adjustable anchor to bond exterior masonry, while restraining in and out movement.
• Design of hook/pintle serves to mechanically secure insulation to masonry backup.
• Features the same compressed leg design as the 2X-HOOK™ and has been tested and designed to withstand over 200-lbf, in tension or compression, at maximum allowed offset (ACI 530 6.2.2.5.5.4) of 1-1/4” (disengagement of the pintle from the veneer anchor). These results exceed BIA recommendations and the capabilities of standard “round wire” hooks or pintles by over 100%!

AVAILABLE FINISHES:

• Hot Dip Galvanized
• Stainless Steel
• NOTE: H&B Recommends Stainless Steel for maximum protection against corrosion

NOTE:

• U.S. Pat. No. 6,789,365, 7,325,366 & 8,096,090

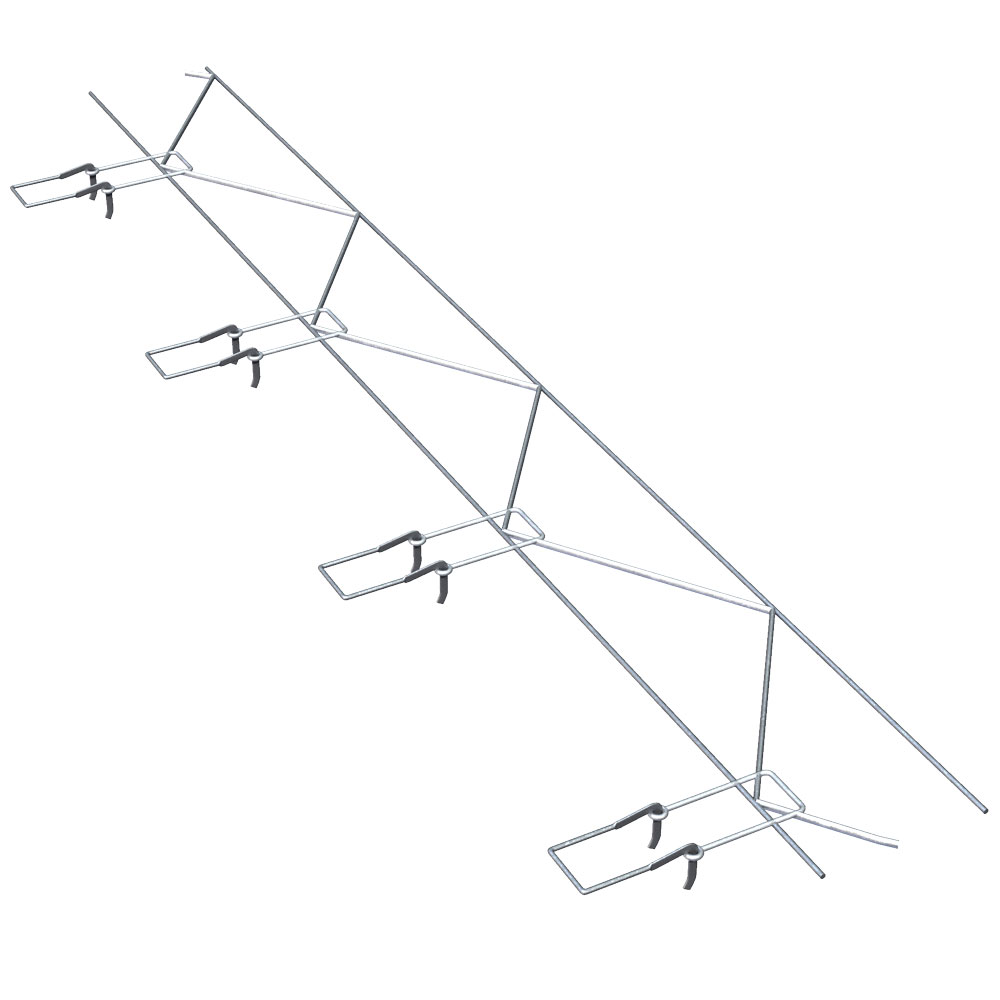

• Specify "SH" Seismic Hook with: 170 Eye-Wire, 270 Eye-Wire, HB-213, and 2-SEAL Thermal Wing Nuts
