2X-HOOK™ WITH WELDED SEISMIC CLIP
Click on the text link below to download
Submittal SheetsPDF Downloads
Click on the text link below to download
Safety Data SheetsPDF Downloads
Click on the text link below to download
LEED / TransparencyPDF Downloads

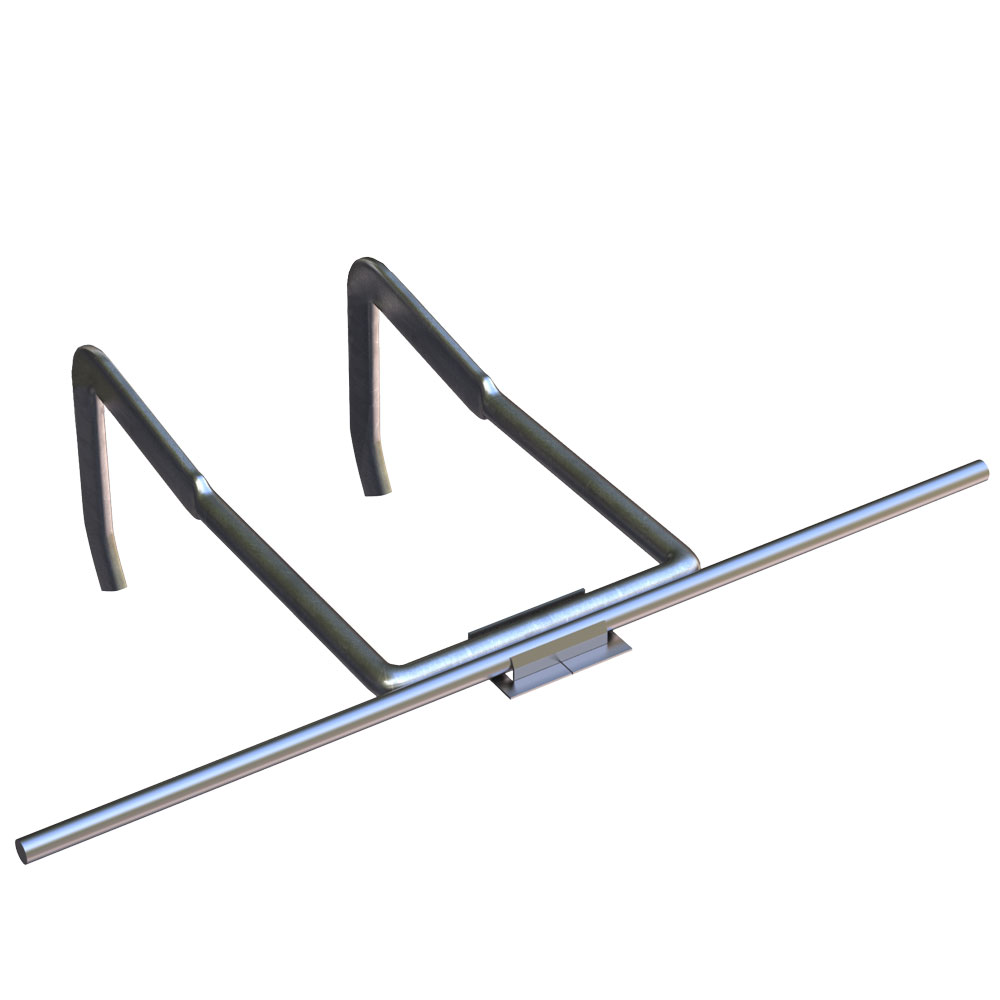

A seismic clip is welded to the 2X-HOOK™ to accept either 9 gauge or 3/16" continuous wire. The compressed leg 2X-HOOK™ has been tested and designed to withstand over 200-lbf, in tension or compression, at maximum allowed offset (ACI 530 6.2.2.5.5.4) of 1-1/4” (disengagement of the pintle from the veneer anchor).
AVAILABLE FINISHES:
- Hot Dip Galvanized
- Type 304 Stainless Steel
- Type 316 Stainless Steel
DIMENSIONS:
- Available lengths: 3", 4", or 4 3/4"
3"4"5"6"7"
3/16" Ø
Hot-Dip GalvanizedType 304 - Stainless SteelType 316 - Stainless Steel (Special Order)
