MIGHTY-LOK® 2X-HOOK™
Click on the text link below to download
Submittal SheetsPDF Downloads
Click on the text link below to download
Safety Data SheetsPDF Downloads
Click on the text link below to download
LEED / TransparencyPDF Downloads

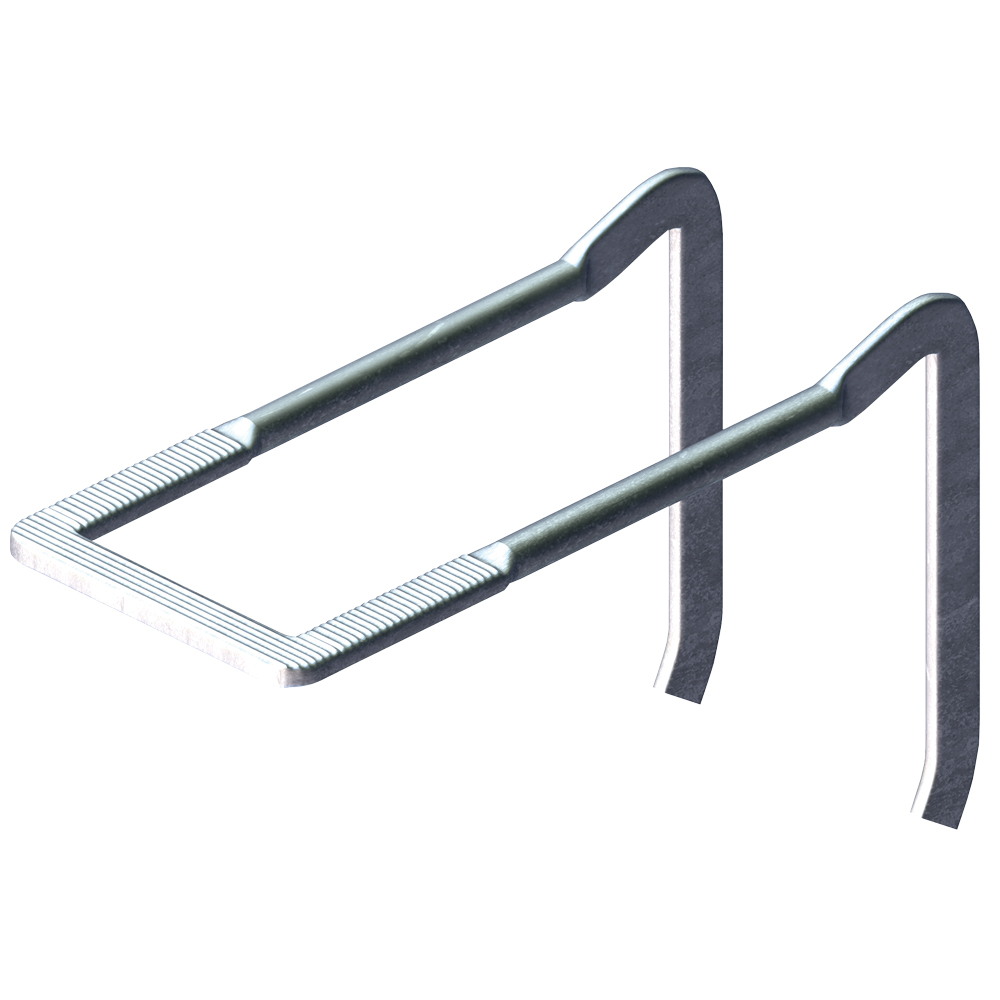

The new Mighty-Lok™ HOOK, is a Heavy Duty 1/4” diameter compressed leg pintle that is flattened and serrated to fit a 3/8” mortar joint satisfying code requirements for mortar bed thickness.1
- The Mighty-Lok® Hook CAN BE INSTALLED WITH LEGS POINTING UP OR DOWN.
- Works with H&B Eye wire products and is available truss style (170-ML) or ladder style (270-ML), features super-heavy-duty eyelets and pintles for superior strength and performance. This is especially beneficial for today's multi-wythe construction with extra-wide cavity walls or when mortar joints are not in close alignment.

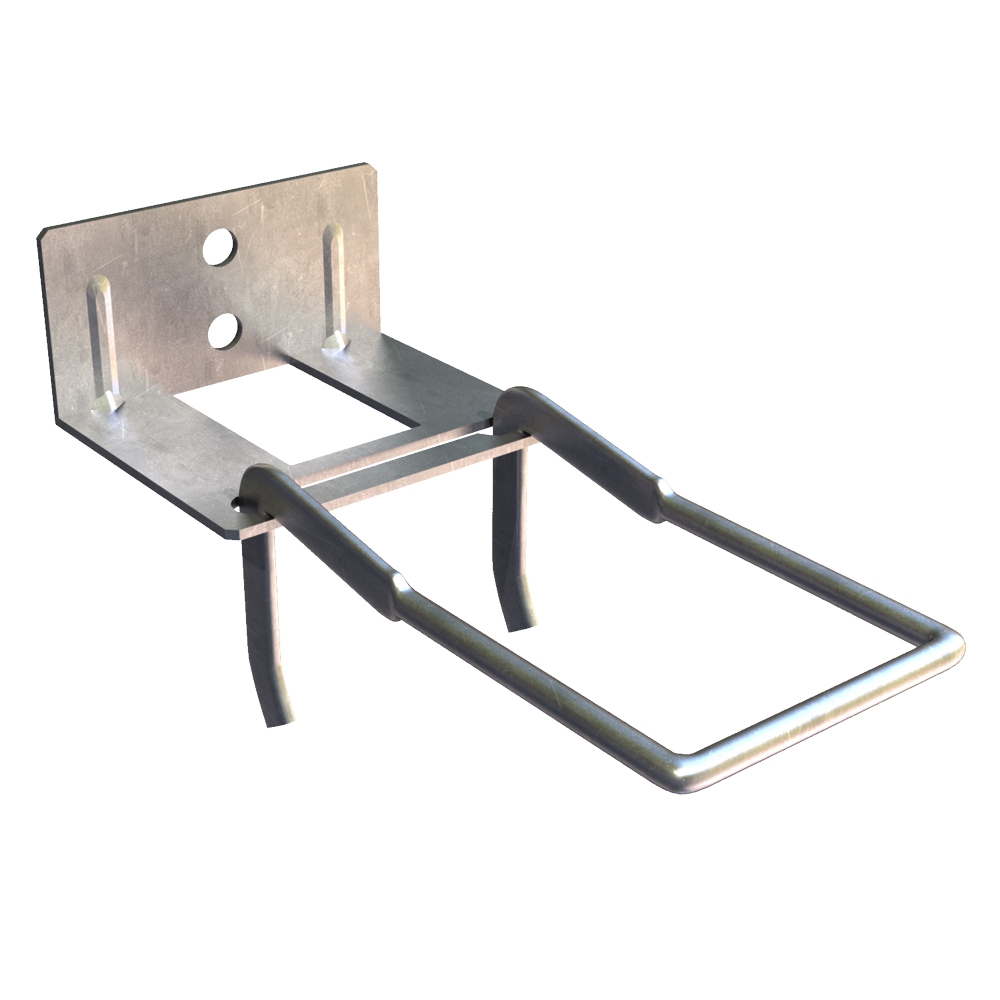

- Also works with HB-213 Veneer Anchors
- Mighty-Lok™ HOOK is flattened and serrated for superior bonding with mortar.
- Mighty-Lok™ HOOKs are designed to mechanically secure insulation to masonry backup.
- For seismic applications a Welded Seismic Clip is available: Truss style (170-ML with Welded Seismic Clip) or Ladder style (270-ML with Welded Seismic Clip)
NOTE:
- U.S. Patent No.
6,279,283
6,668,505
Other Patents Pending.
3"4"5"CUSTOM
Hot-Dip GalvanizedType 304 - Stainless SteelType 316 - Stainless Steel (Special Order)
1/4" Ø
