2X-HOOK™
Click on the text link below to download
Submital SheetsPDF Downloads
Click on the text link below to download
Safety Data SheetsPDF Downloads
Click on the text link below to download
LEEDPDF Downloads

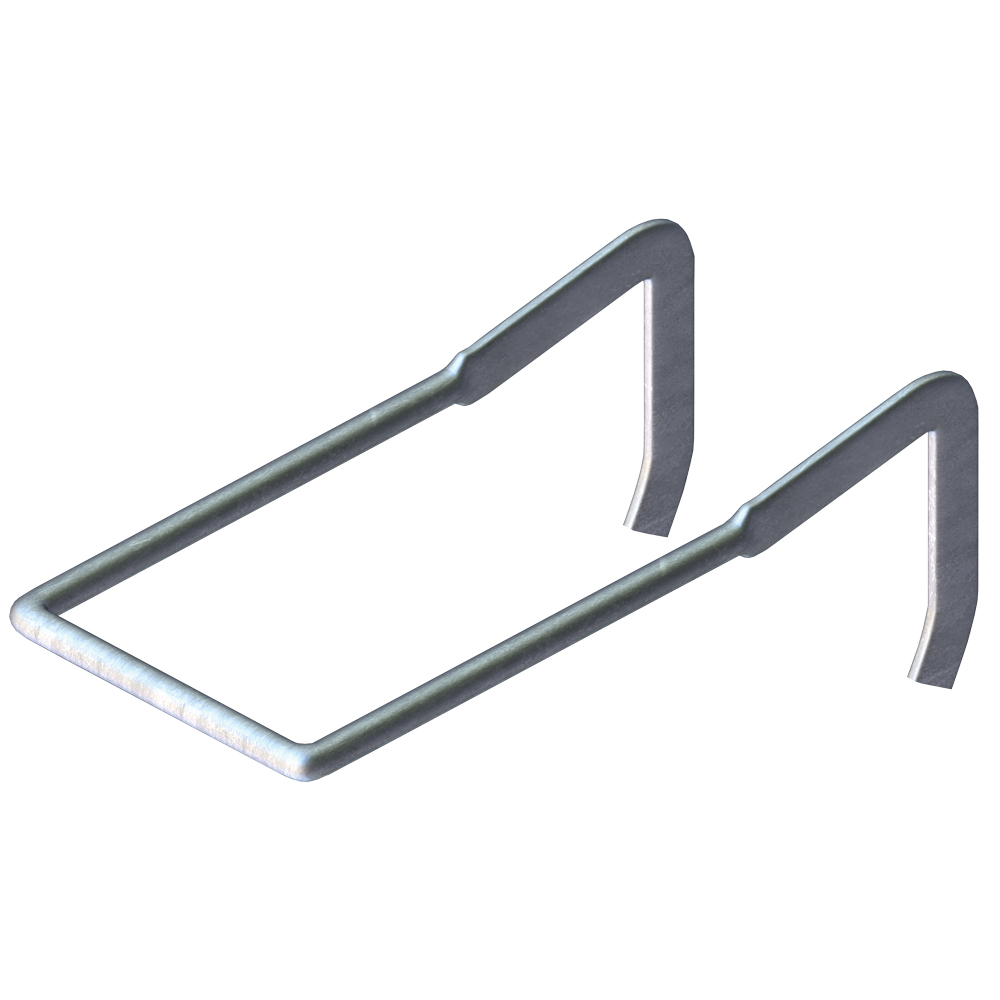

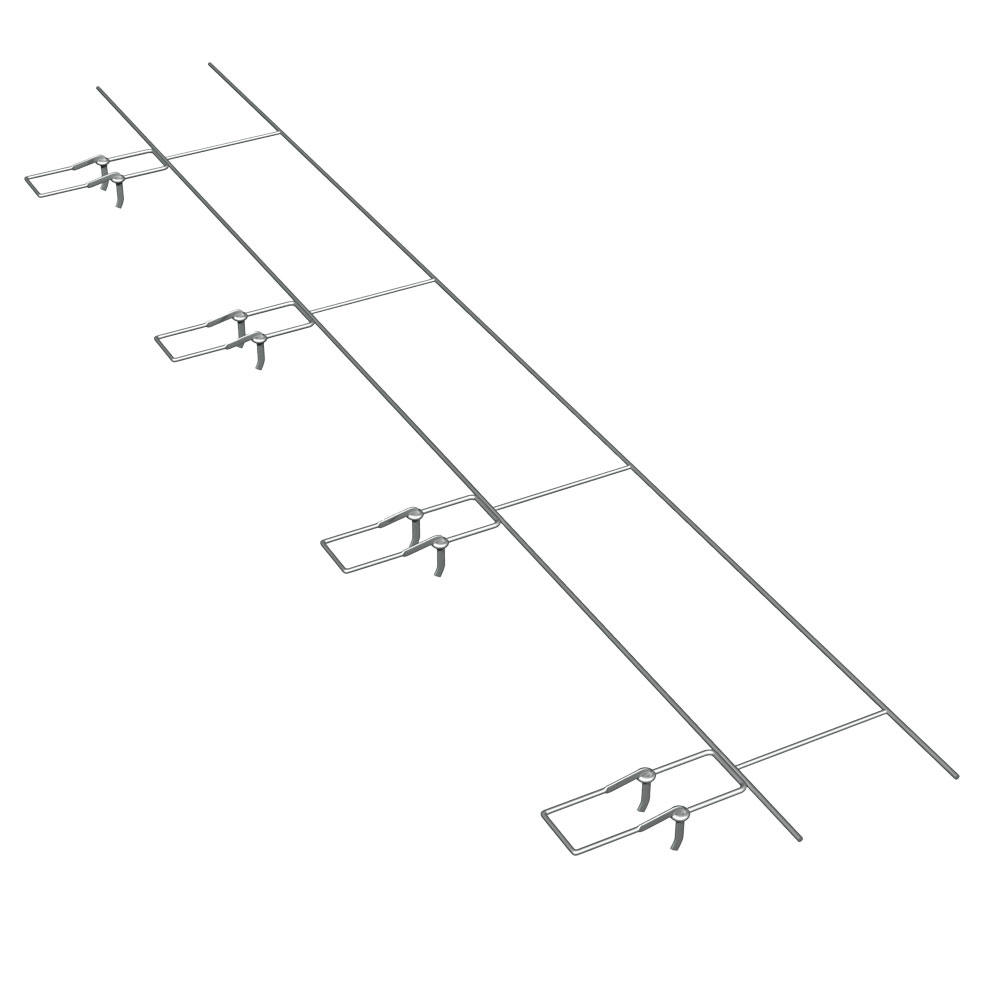

The compressed leg 2X-HOOK™ has been tested and designed to withstand over 200-lbf, in tension or compression, at maximum allowed offset (ACI 530 6.2.2.5.5.4) of 1-1/4” (disengagement of the pintle from the veneer anchor). These results exceed BIA recommendations and the capabilities of standard “round wire” hooks or pintles by over 100%!
- 2X-HOOK™ CAN BE INSTALLED WITH LEGS POINTING UP OR DOWN.
- The embedded portion of the 2X-HOOK is 3/16”DIA round wire, satisfying the code requirement that the mortar bed thickness (typically 3/8”) must be twice the diameter of the wire.
- U.S. Pat. No. 8,613,175
- Test results available upon request.
AVAILABLE FINISHES:
- Hot Dip Galvanized
- Stainless Steel
- NOTE: H&B Recommends Stainless Steel for maximum protection against corrosion
| Vertical Adjustability | |||||
|---|---|---|---|---|---|
| 1 1/4" | Lengths | ||||
| 3" | 4" | 5" | 6" | 7" | CUSTOM | Wire Diameter |
| 3/16" Ø | Finishes/Materials | ||||
| Hot-Dip Galvanized | Type 304 - Stainless Steel | Type 316 - Stainless Steel (Special Order) |
