PRODUCT DESCRIPTION

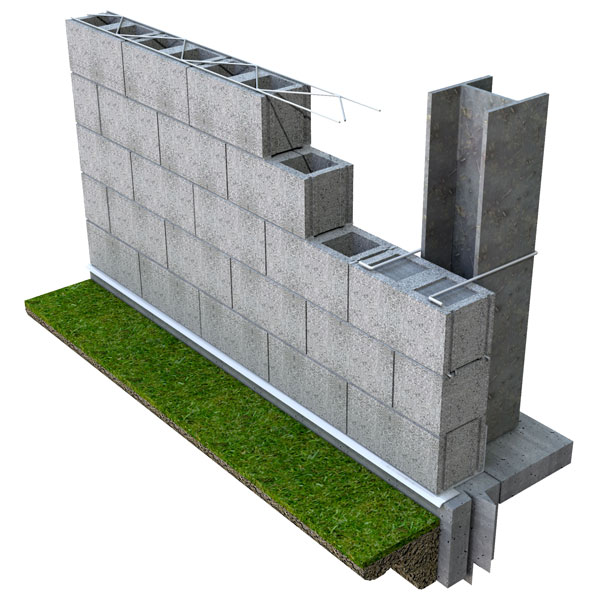

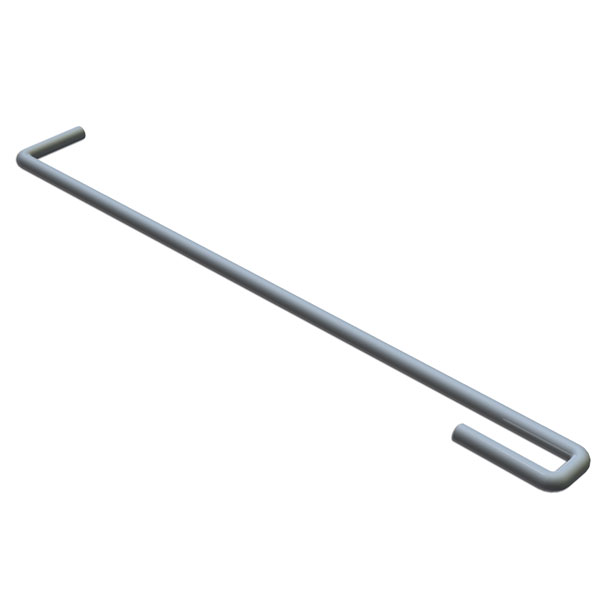

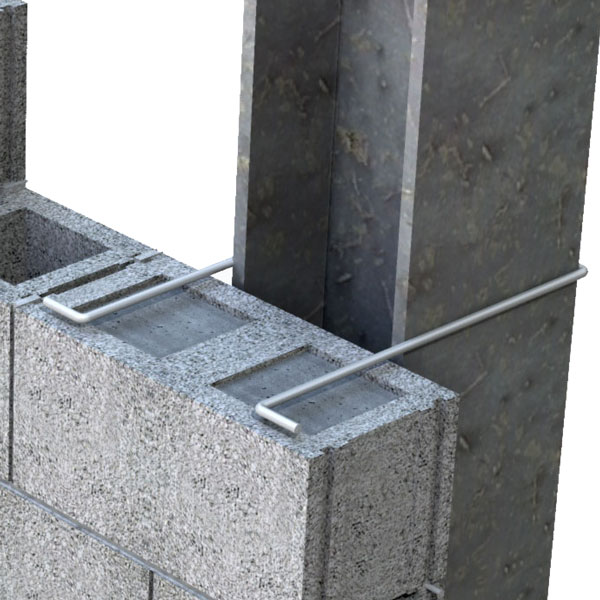

The 352 - Wire Column Tie is for anchoring masonry to structural columns when masonry is perpendicular to column flange

DIMENSIONS/GAUGES:

  • 3/16" or 1/4" diameter
  • 8", 10" 12" or 14" long (Custom lengths also available)
  • 2" Bend and 2 1/2" Hook with 1/2" opening standard

AVAILABLE FINISHES:

  • Mill Galvanized
  • Hot Dip Galvanized
  • Stainless Steel

Lengths

8"10"12"14"CUSTOM

Backup Type

Structural Steel (Column & Beam)

Wire Diameter

3/16" Ø1/4" Ø

Finishes/Materials

Hot-Dip GalvanizedType 304 - Stainless SteelType 316 - Stainless Steel (Special Order)

Bend Length

2" (Standard)
