PRODUCT DESCRIPTION

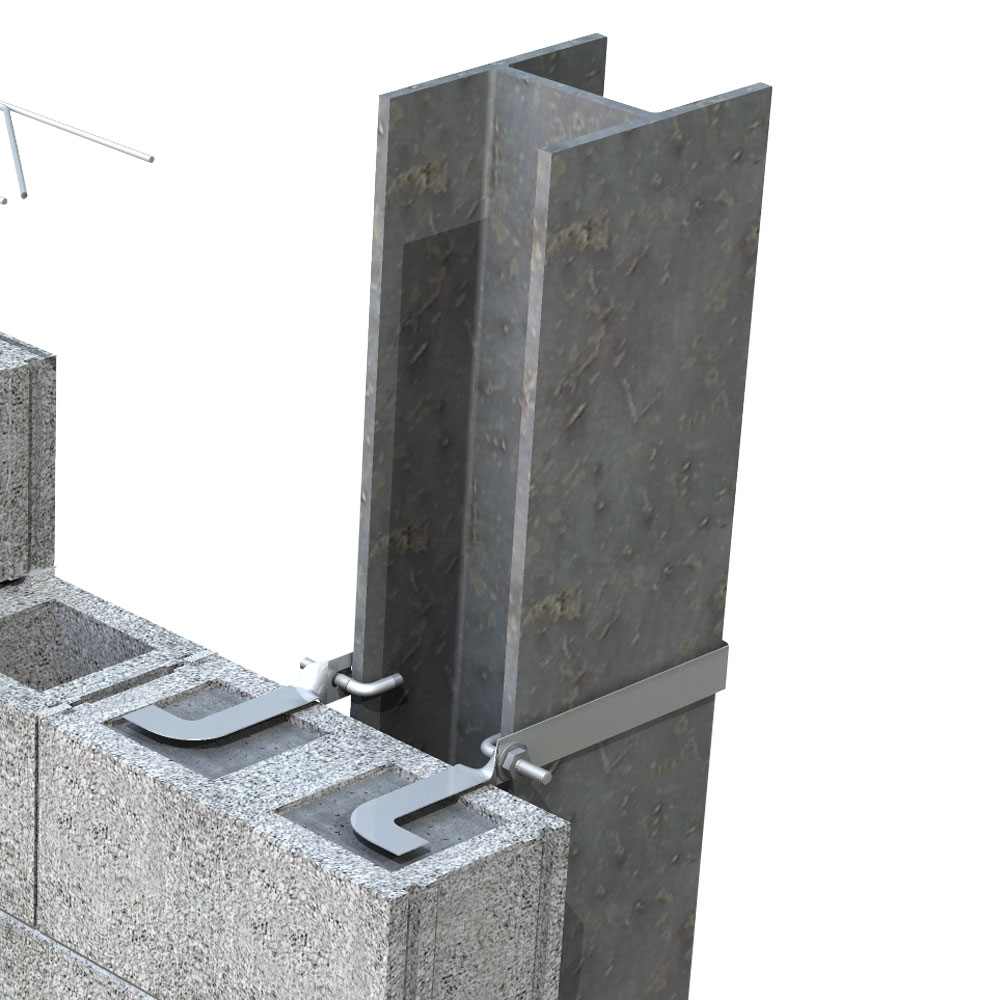

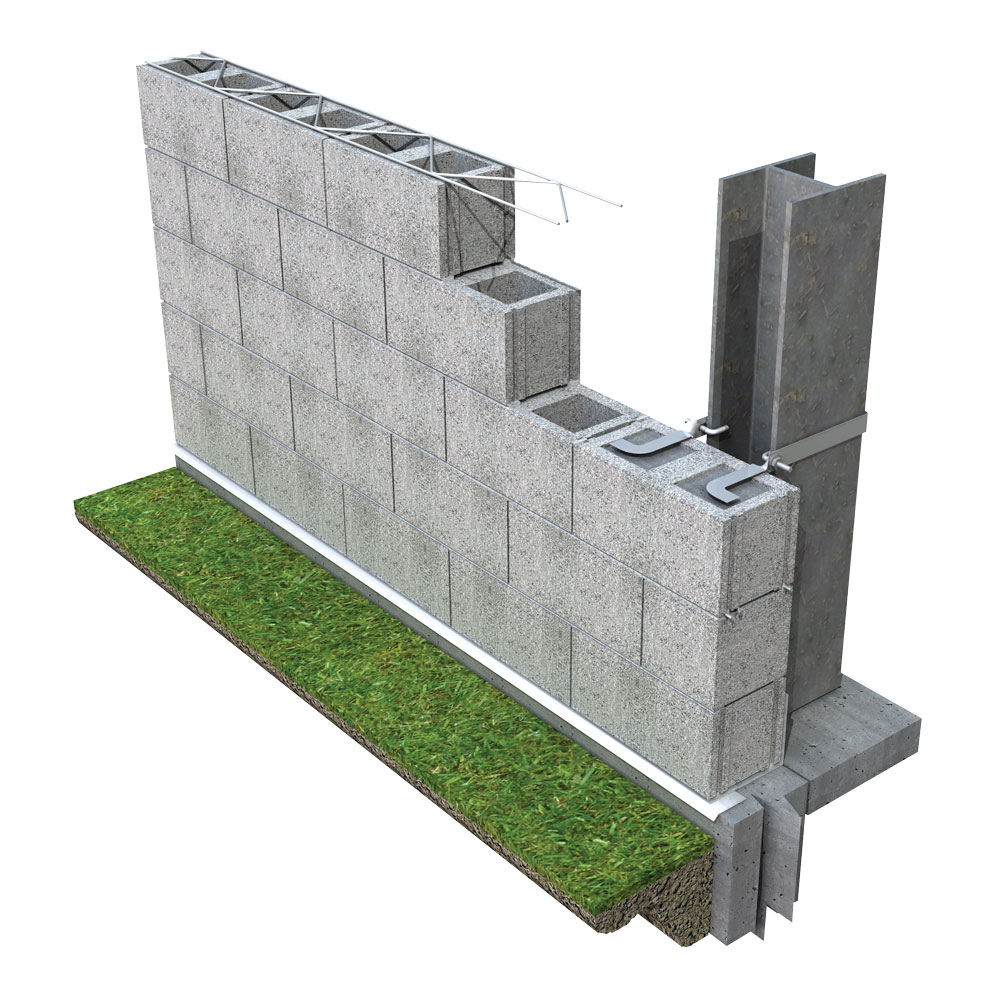

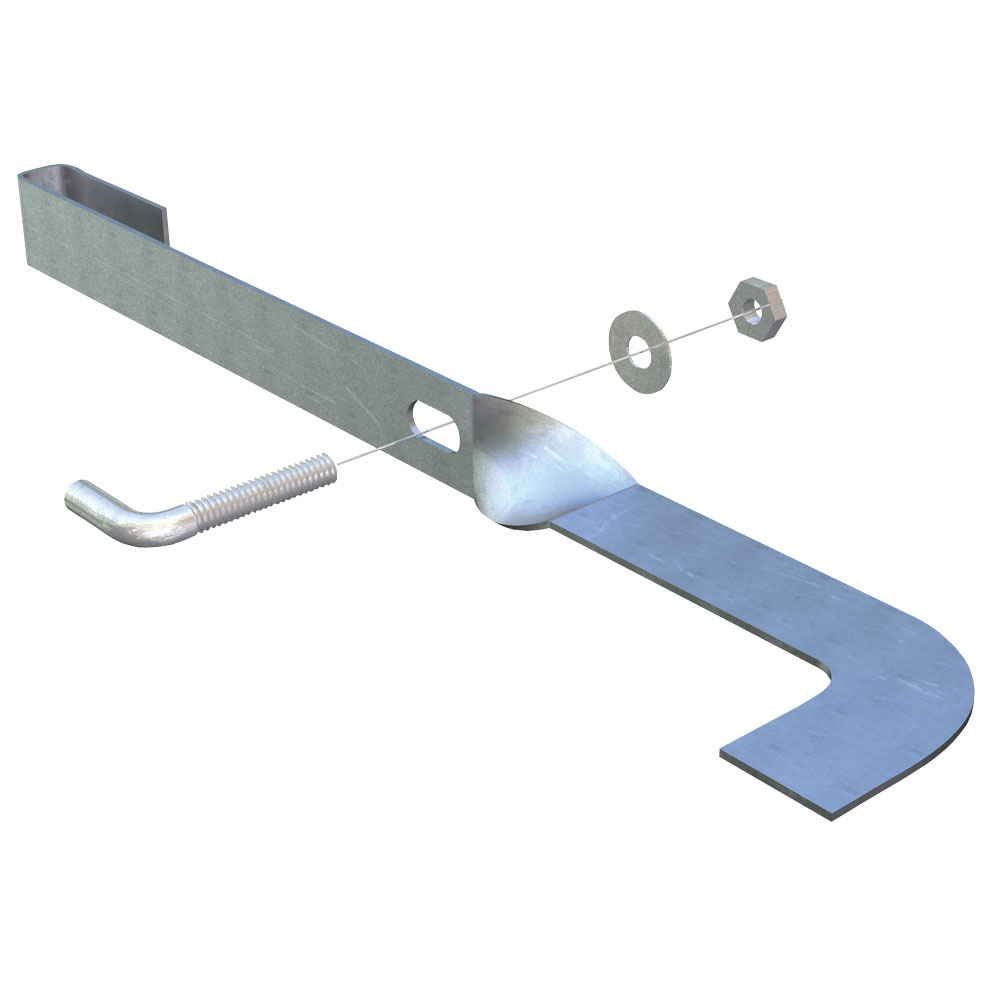

The 356L Column Anchor is for anchoring masonry to structural columns when masonry is parallel to the column web

  • The 356L has a slotted hole to accept Positive Lok Rod.
  • This system anchors masonry to the building frame while restraining both positive and negative wind load actions

DIMENSIONS/GAUGES:

  • Standard 1-1/4” wide x 1/4” thick. Optional 12 gauge thickness also available.
  • Available in any length

AVAILABLE FINISHES:

  • Hot Dip Galvanized
  • Stainless Steel

NOTE:

  • Custom sizes available

Thickness/Gauge

1/4" (HEAVY-DUTY)12 gauge

Backup Type

Structural Steel (Column & Beam)

Finishes/Materials

Hot-Dip GalvanizedType 304 - Stainless SteelType 316 - Stainless Steel (Special Order)
