PRODUCT DESCRIPTION

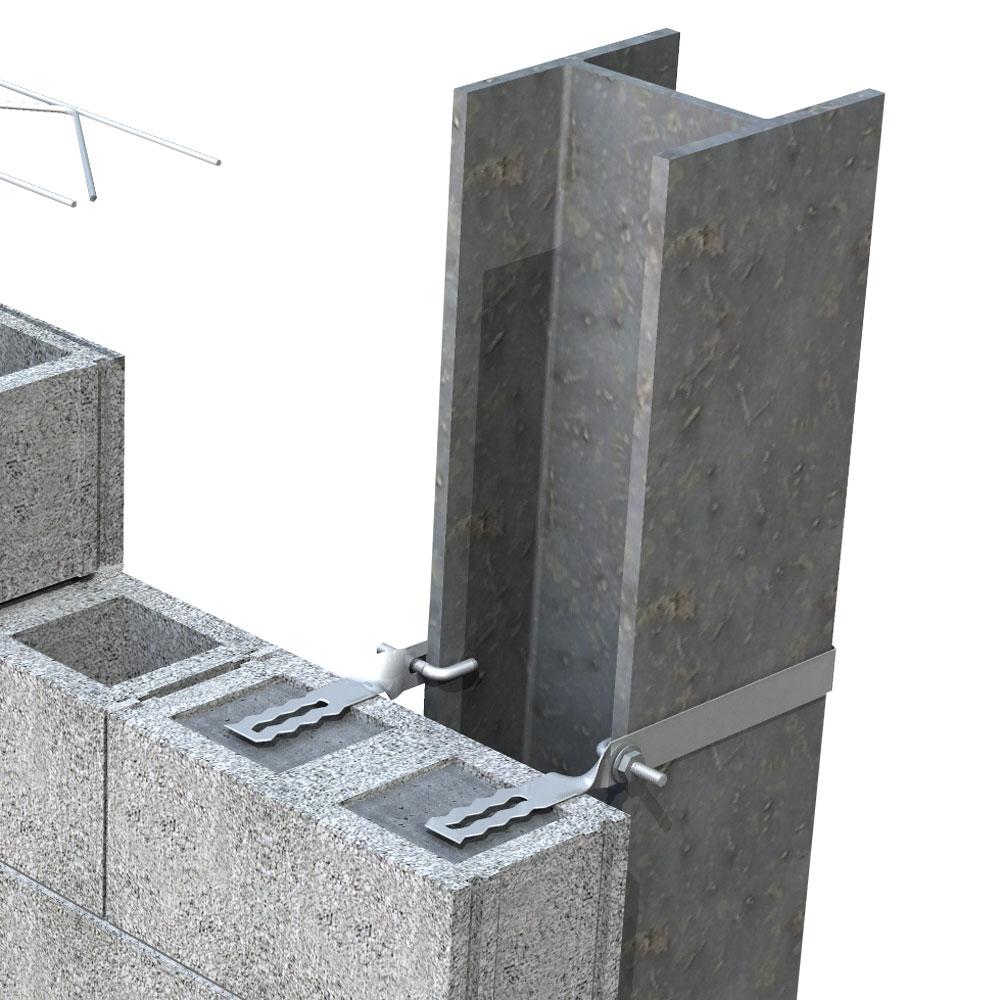

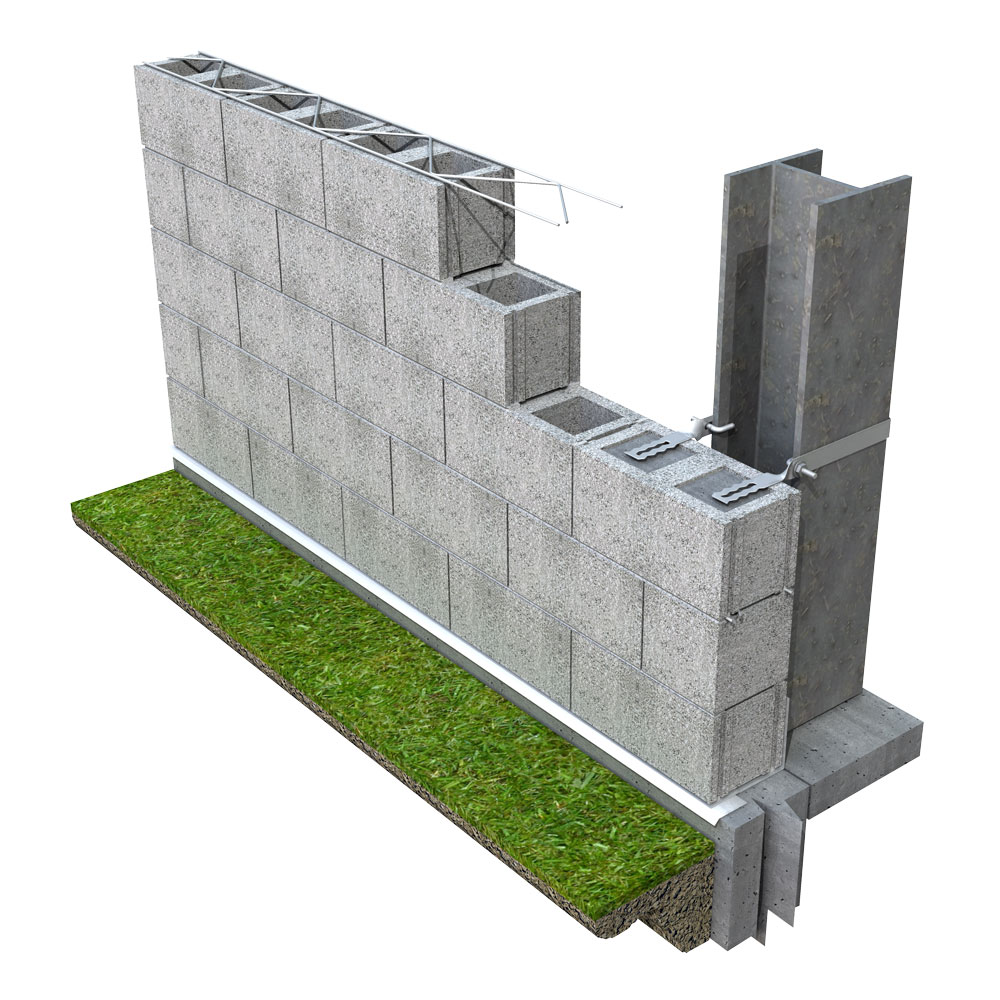

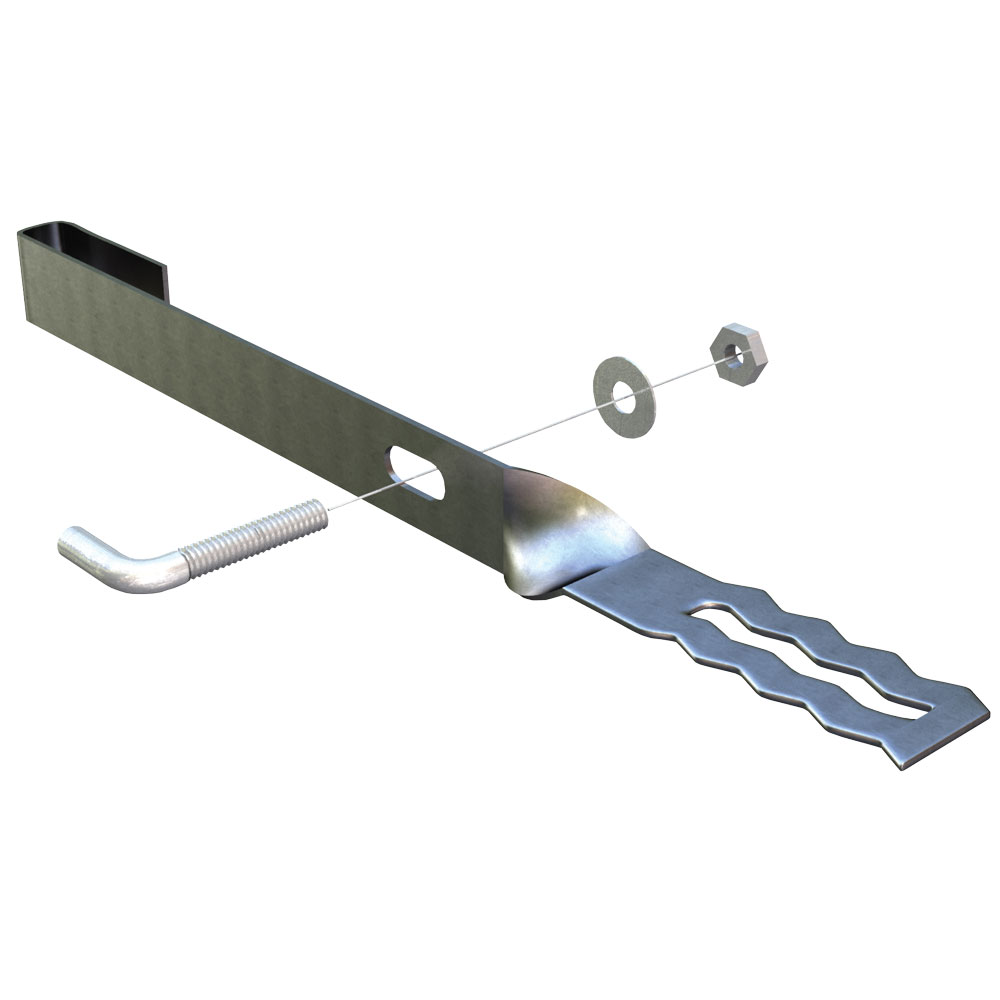

The 353L - Column Anchor anchors masonry to the building frame while restraining both positive and negative wind load actions, it has a slotted hole to accept a Positive Lok Bolt to mechanically engage both sides of flange

DIMENSIONS/GAUGES:

  • 1 1/4" wide x 12 ga., 3/16" or 1/4" thick
  • Mill Galvanized available in 12 gauge thickness only
  • State flange width and overall length of anchor when ordering

AVAILABLE FINISHES:

  • Mill Galvanized
  • Hot Dip Galvanized
  • Stainless Steel

U.S. Patent No. 8,904,731

Thickness/Gauge

1/4" (HEAVY-DUTY)12 gaugeCUSTOM

Widths

1 1/4"

Backup Type

Structural Steel (Column & Beam)

Finishes/Materials

Hot-Dip GalvanizedType 304 - Stainless SteelType 316 - Stainless Steel (Special Order)
