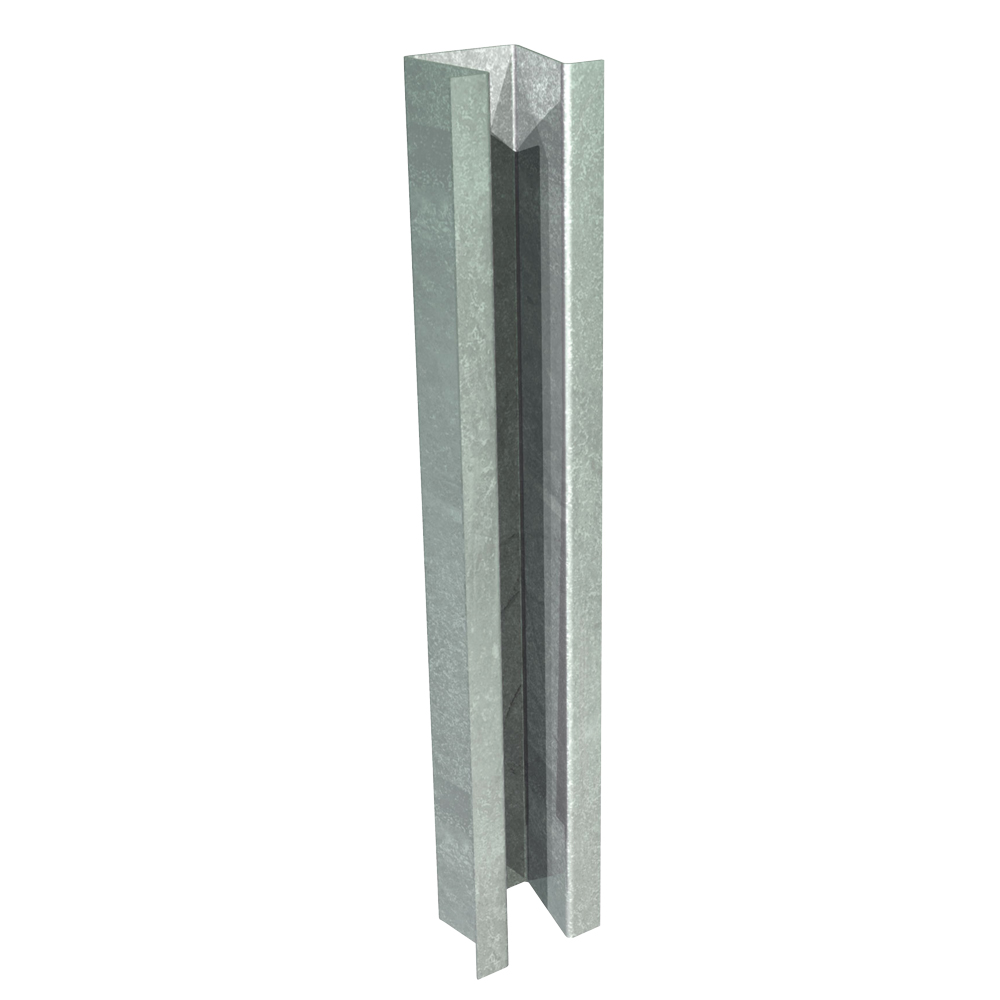

305 DOVETAIL SLOT
Click on the text link below to download
Submittal SheetsPDF Downloads
Click on the text link below to download
Safety Data SheetsPDF Downloads
Click on the text link below to download
LEED / TransparencyPDF Downloads
Click on the text link below to download
CADZIP Downloads

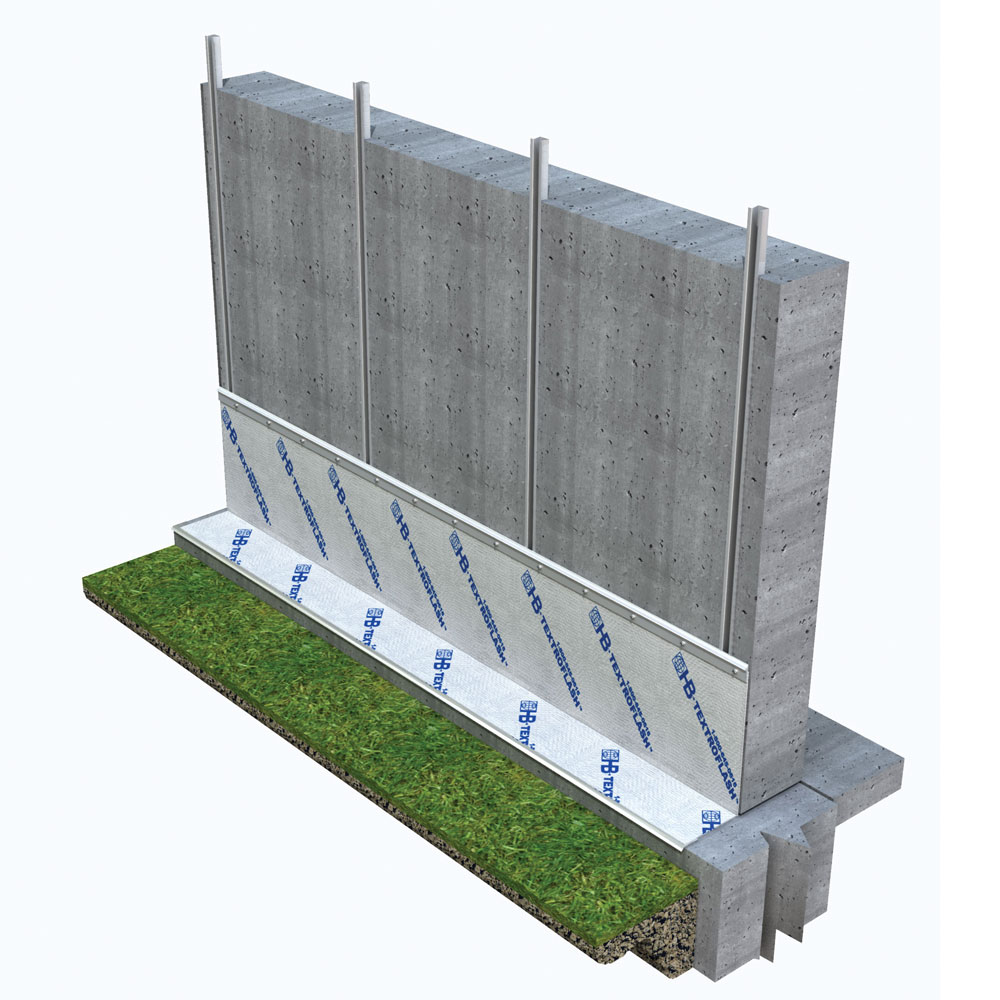

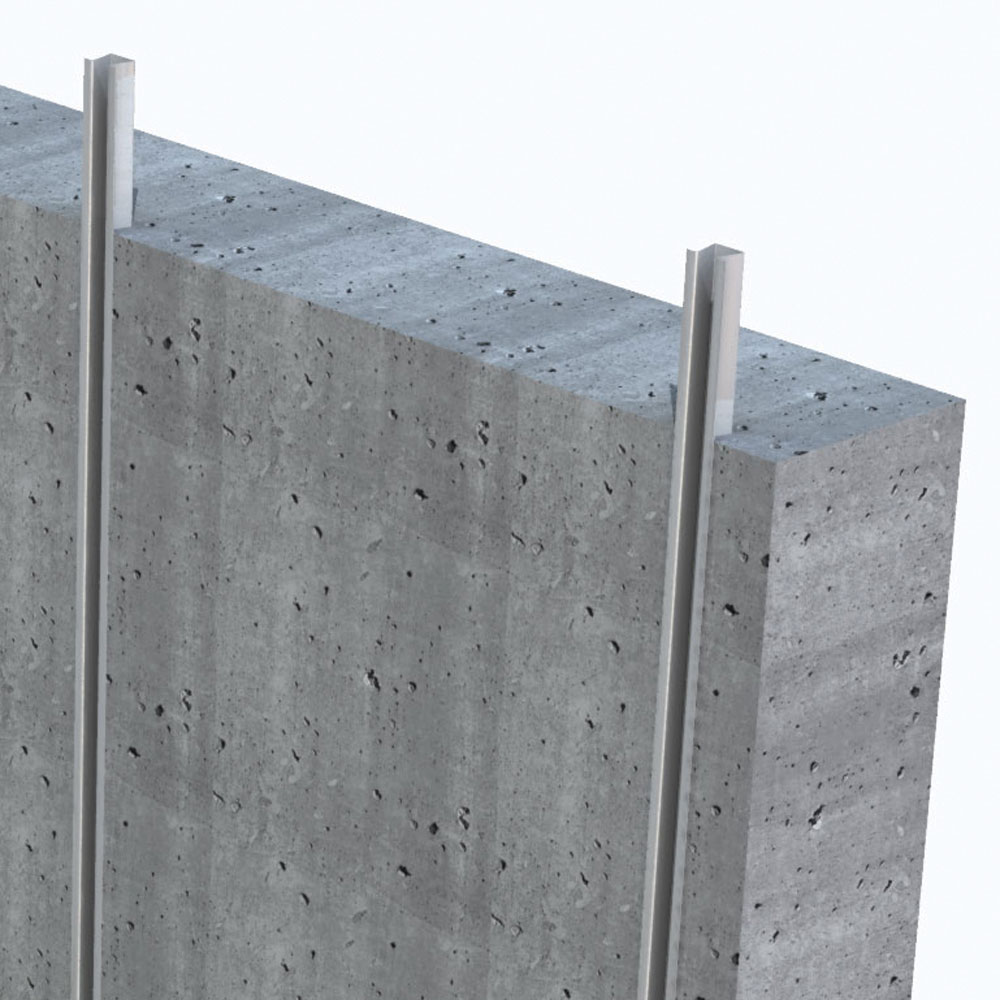

For anchoring masonry to concrete with dovetail ties (eg. 303-SV Seismic-Notch Dovetail Anchor.)
GAUGES:
- #305 Slot available in 22 or 16 ga.
DIMENSIONS:
- Slots are standard 10 ft. lengths foam filled
NOTES:
- Important: We are not responsible for incompatibility if ties or slots are interchanged with those of other manufacturer
3/16"Ø
22 gauge16 gauge
Concrete
Mill GalvanizedHot-Dip GalvanizedType 304 - Stainless SteelType 316 - Stainless Steel (Special Order)
10' (Standard Length)
