PTA SERIES ANCHORS - PTA RN (ROD & NUT)
Click on the text link below to download
Submittal SheetsPDF Downloads
Click on the text link below to download
Safety Data SheetsPDF Downloads
Click on the text link below to download
LEEDPDF Downloads
PTA RN (ROD & NUT) Partition Top Anchors have been developed to provide lateral shear resistance at the upper limit of masonry walls.
- They permit vertical deflection of the slab above, without transferring compressive loads to the masonry wall below.
- Must be used in conjunction with 305 Dovetail Slot.

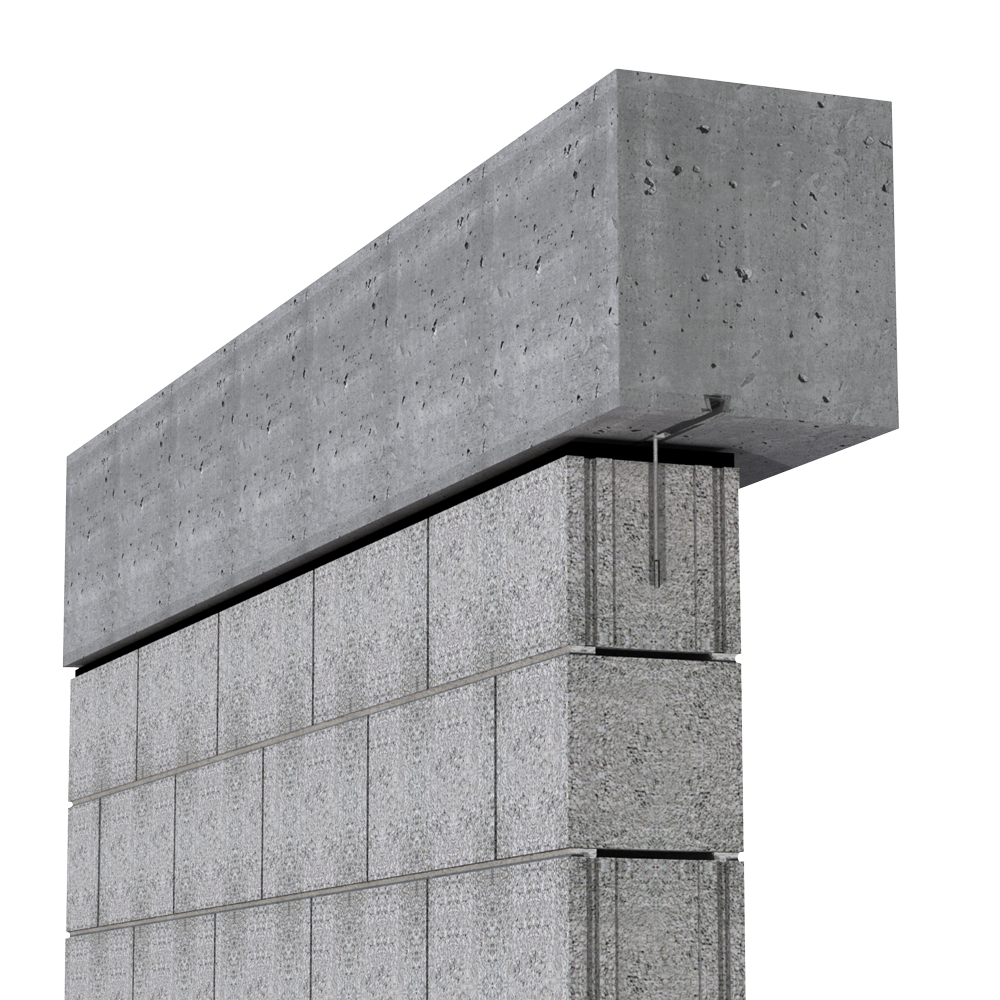

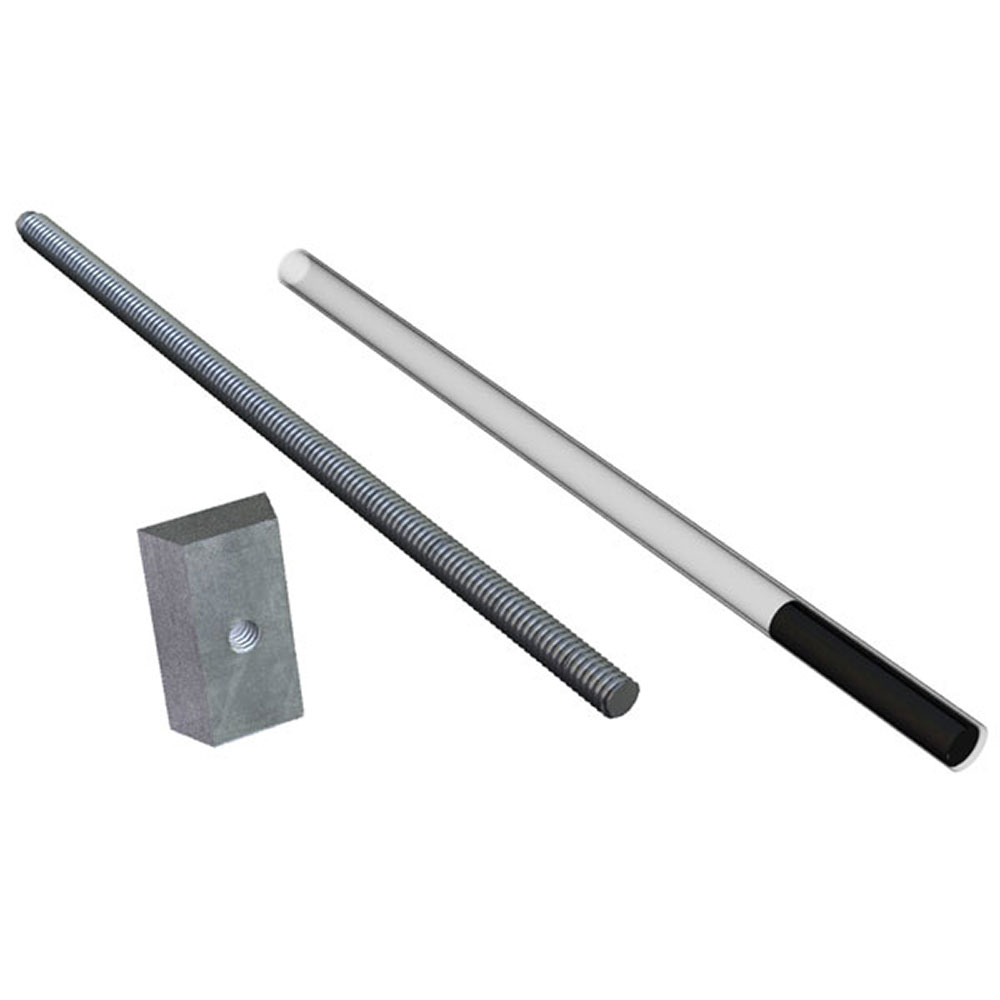

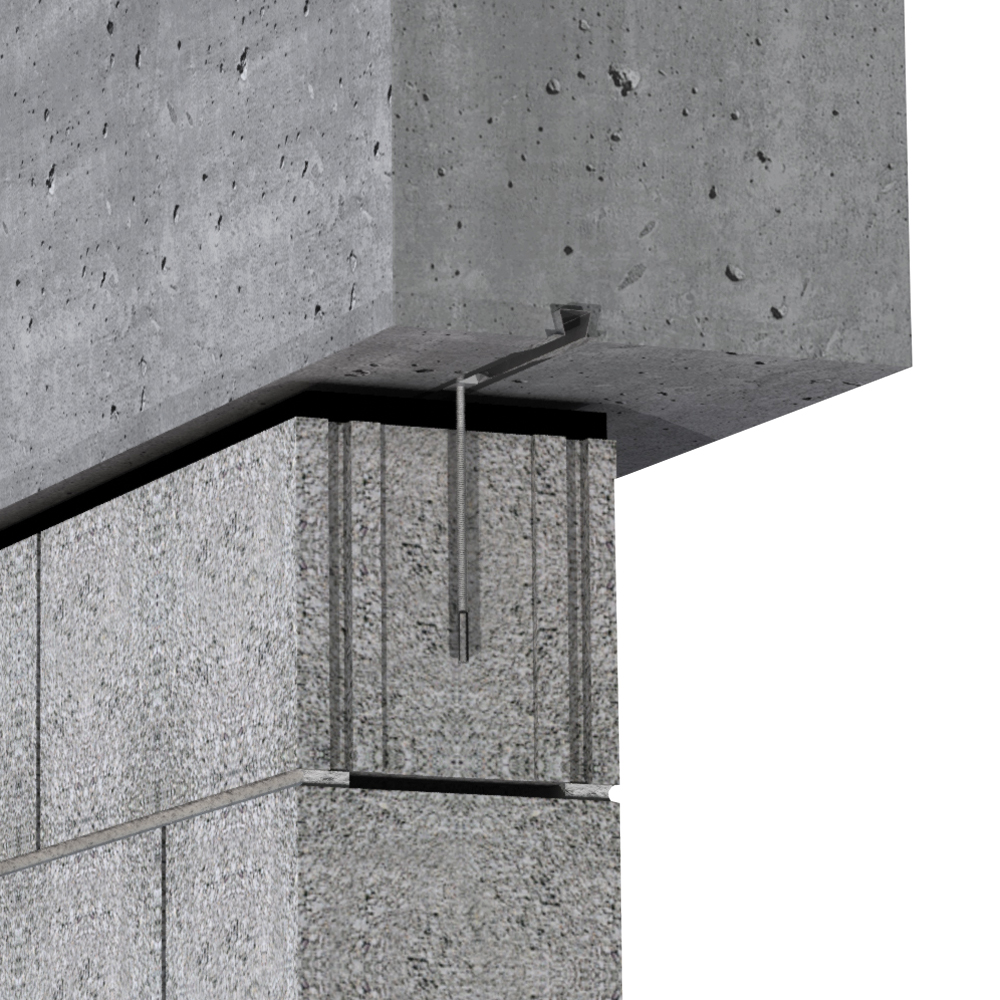

- PTA Tube with expansion filler is placed over rod anchor, which has been attached to concrete in the method illustrated. The vertical joint is then filled with mortar, fully surrounding tube.
- PTA Series Anchorsare suitable for construction using steel or concrete.
GAUGES:
- Rounds are 3/8" diameter
AVAILABLE FINISHES:
- PTA-RN Anchors are available in Mill Galvanized only
NOTE:
- Important: We are not responsible for incompatibility if ties or slots are interchanged with those of other manufacturers
- Special high-load designs can be manufactured on a special order basis, contact our technical department for information
3/8" (Threaded Rod)
Mill GalvanizedType 304 - Special OrderType 316 - Stainless Steel (Special Order)
