MWT - MESH WALL TIE
Click on the text link below to download
Submital SheetsPDF Downloads
Click on the text link below to download
Safety Data SheetsPDF Downloads
Click on the text link below to download
CADZIP Downloads

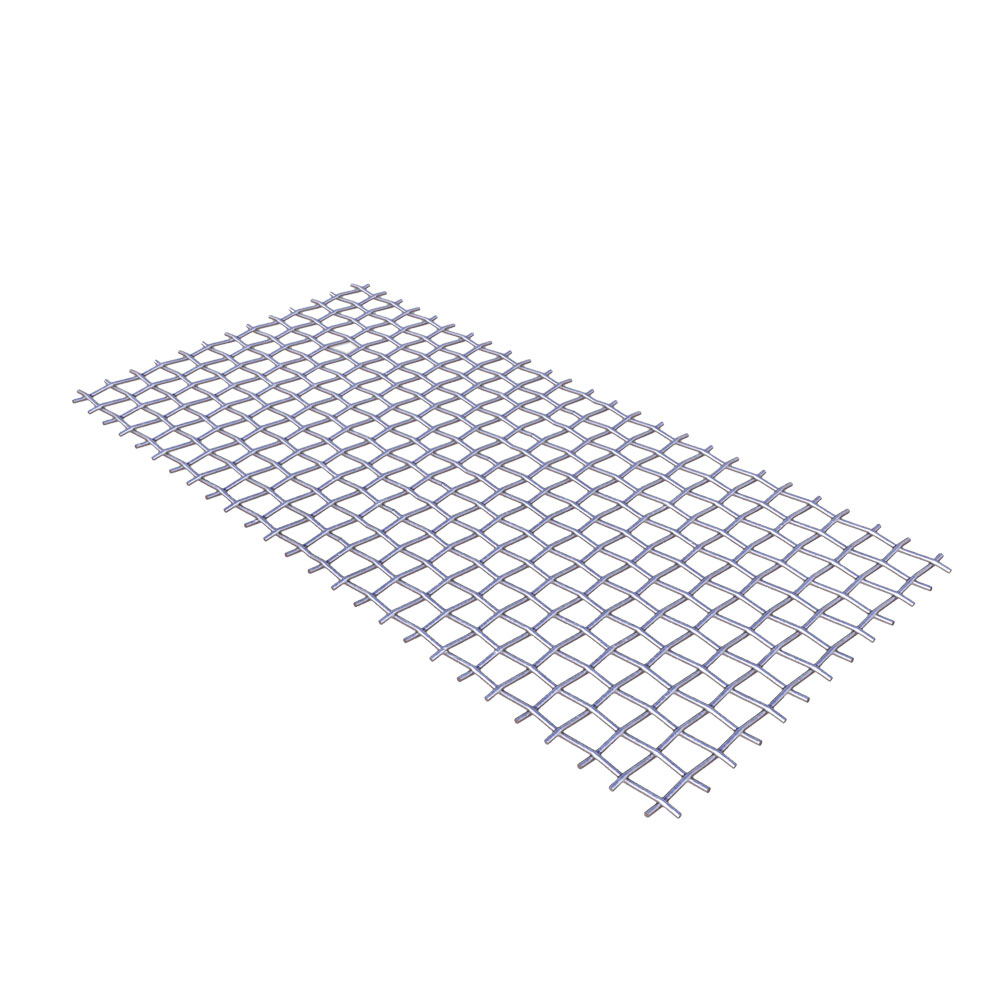

Mesh Wall Tie (MWT) for bonding intersecting masonry walls
- Conforms to ASTM A 153 (Hot-dip Galvanized)
- Conforms to ASTM E 437, Type 304 (Stainless Steel)
- Materials: ASTM A 82 (Cold-drawn Steel Wire), ASTM A 740 (Hardware Cloth)
GAUGES:
- 1/2" square X 16 ga.
AVAILABLE FINISHES:
- Hot Dip Galvanized Wire
- Stainless Steel wire available upon special request
DIMENSIONS:
- WIDTH: 4" WIDE FOR 6" WALL, 6" WIDE FOR 8" WALL, 8" WIDE FOR 10" WALL, 10" WIDE FOR 12" WALL, OTHER
- LENGTH: 8", 12", 100 FT. ROLL, and OTHER
NOTE:
- Cut to any width or length required
| Thickness/Gauge | |||||
|---|---|---|---|---|---|
| 1/2" square x 16 ga. (Standard) | Widths | ||||
| 3" (for 4" block) | 4" (for 6" block) | 6" (for 8" block) | 8" (for 10" block) | 10" (for 12" block) | CUSTOM | Wire Size |
| 1/2" square x 16 gauge (Standard) | Backup Type | ||||
| Structural Steel (Column & Beam) | Finishes/Materials | ||||
| Hot-Dip Galvanized | Type 304 - Stainless Steel | Roll Lengths | |||
| 100 ft. |
