LW-340 MALLEABLE IRON WEDGE INSERTS

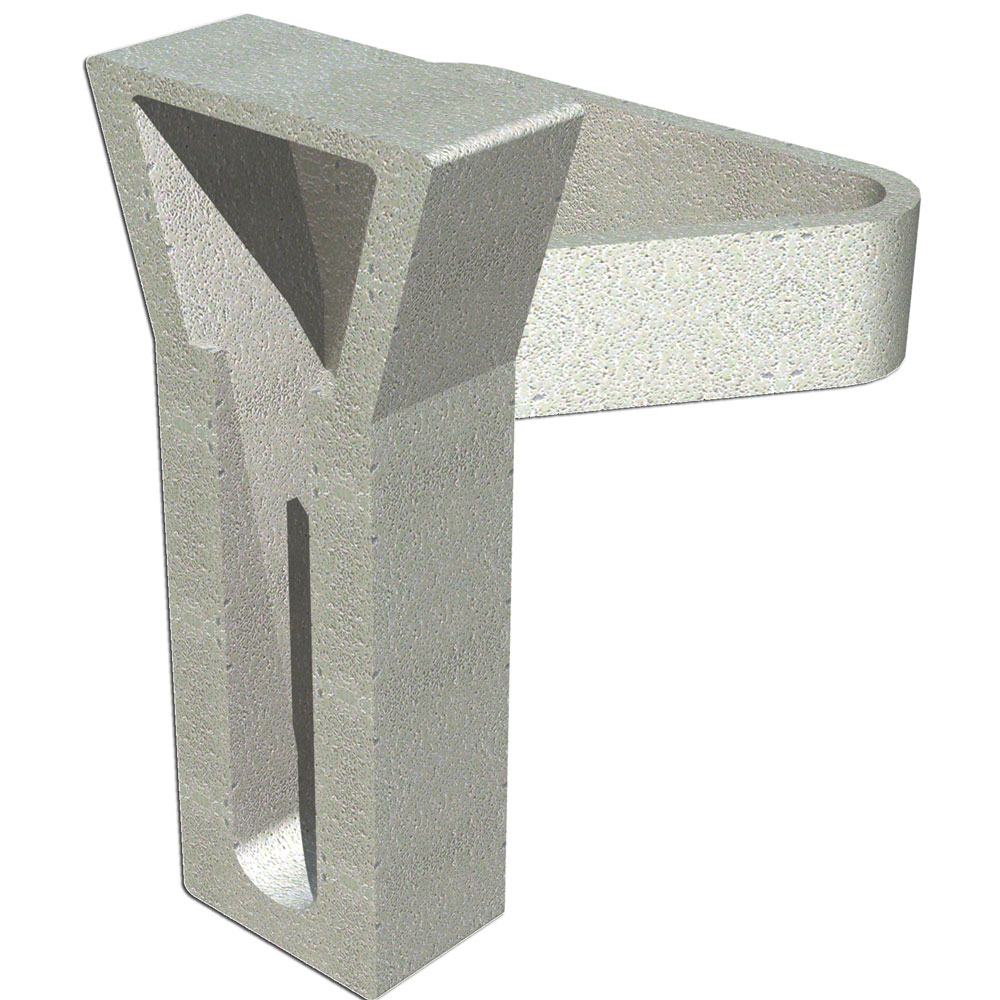

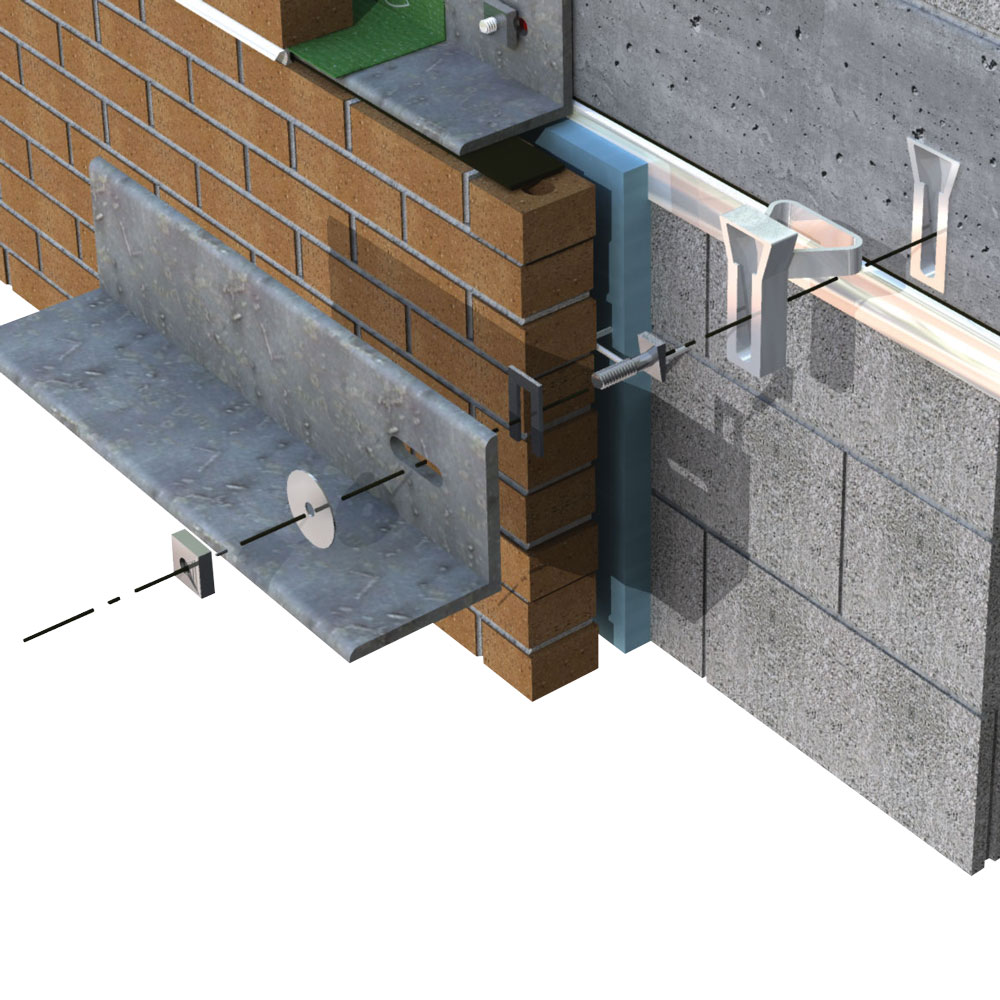

LW-340 Long Wedge Insert is suitable for use at the bottom of the slab or when additional vertical adjustability is needed.

• Wedge inserts are embedded into concrete slabs.
• Nail holes in the back of the insert allow easy nailing to forms.
• When the forms are stripped, the open face of the insert is flush with the concrete.
• The beveled head of the askew head bolt engages the internal wedge shape of the insert and produces an automatic tightening action when a load is placed on it.
• LW-340 can be placed at bottom of slab.
• LW-340 requires a minimum 1 1/2" of concrete above the anchor.

AVAILABLE FINISHES:

• Hot Dip Galvanized.

PERFORMANCE DATA:

All values listed are ultimate capacities in pounds which should be reduced by a minimum safety factor of three to determine the allowable working loads.

ACCESSORY PRODUCT:

Askew Head Bolt

• 3/4” dia. x 2”, 2-1/2”, 3” or 4” long.
• Available Plain, Stainless Steel or Zinc Plated. Hot Galv available on special order.
• Askew Head Bolt Performance Data: Carbon Steel
