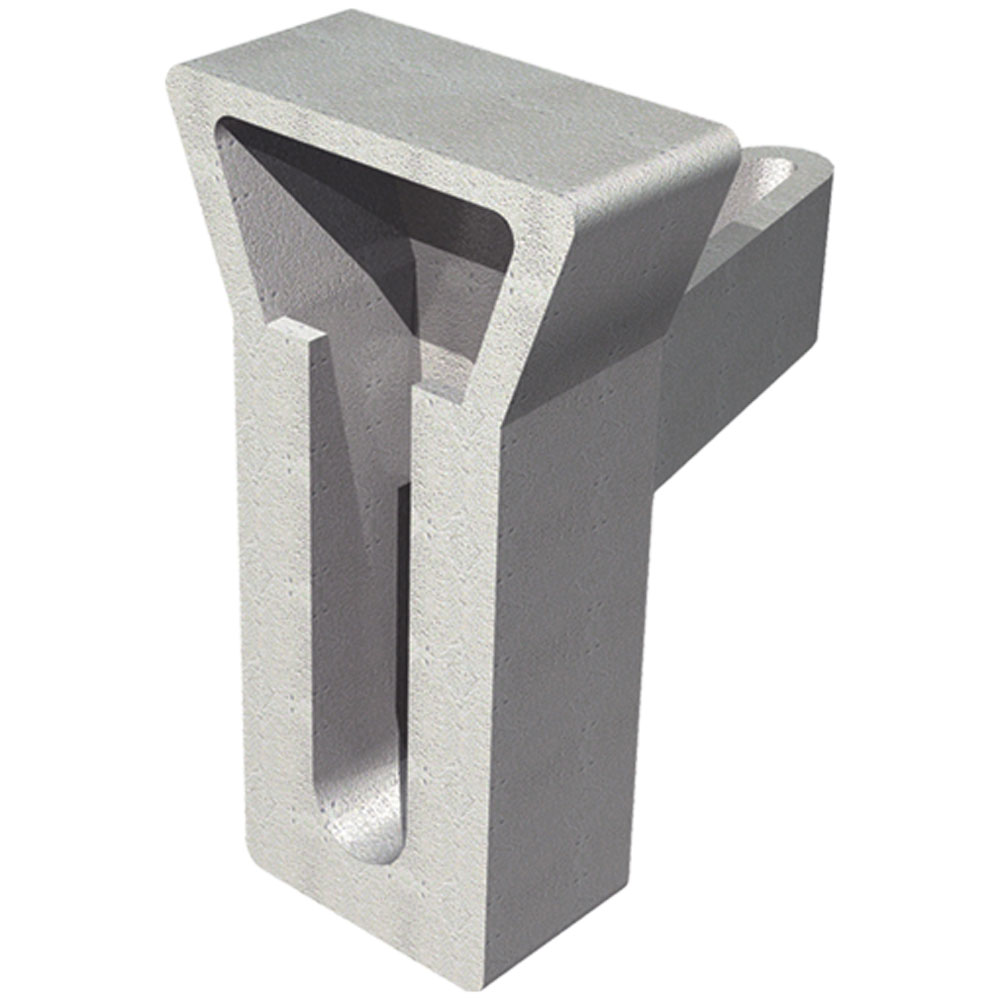

HW-340 MALLEABLE IRON WEDGE INSERTS
Submital SheetsPDF Downloads
Safety Data SheetsPDF Downloads

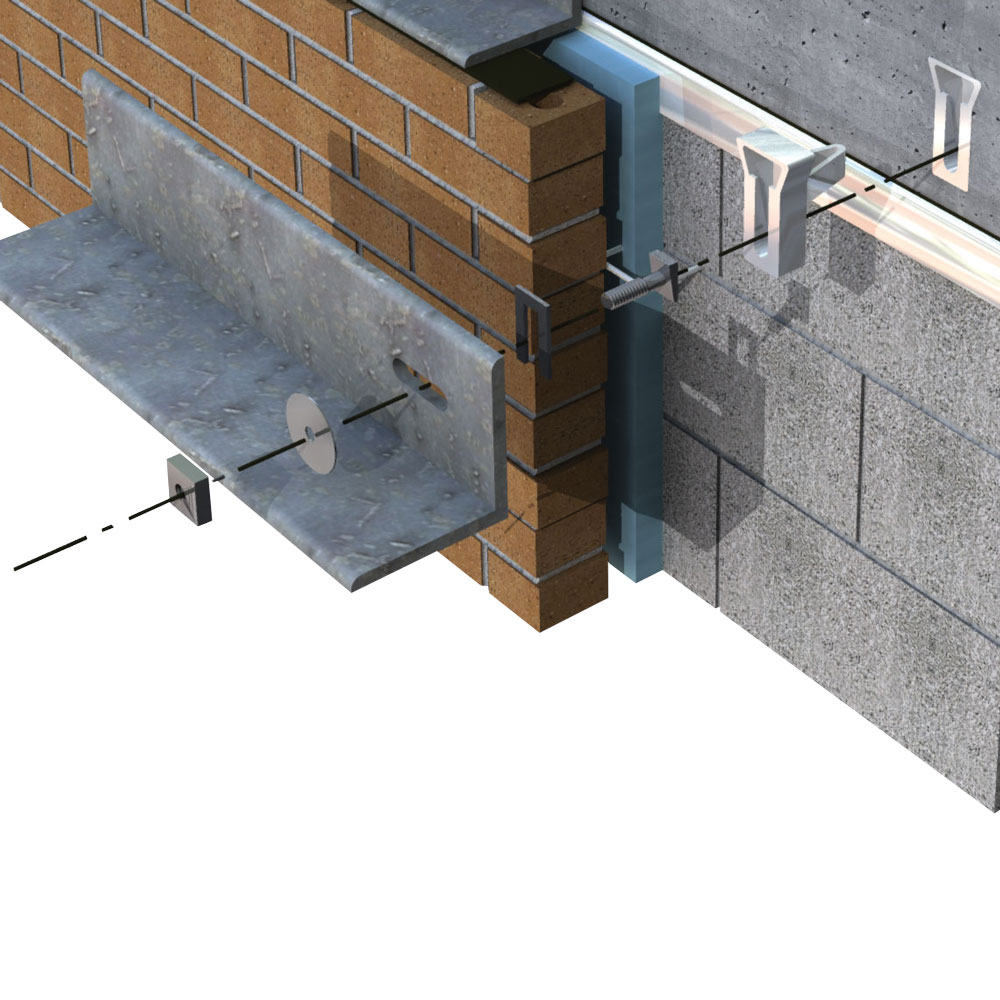

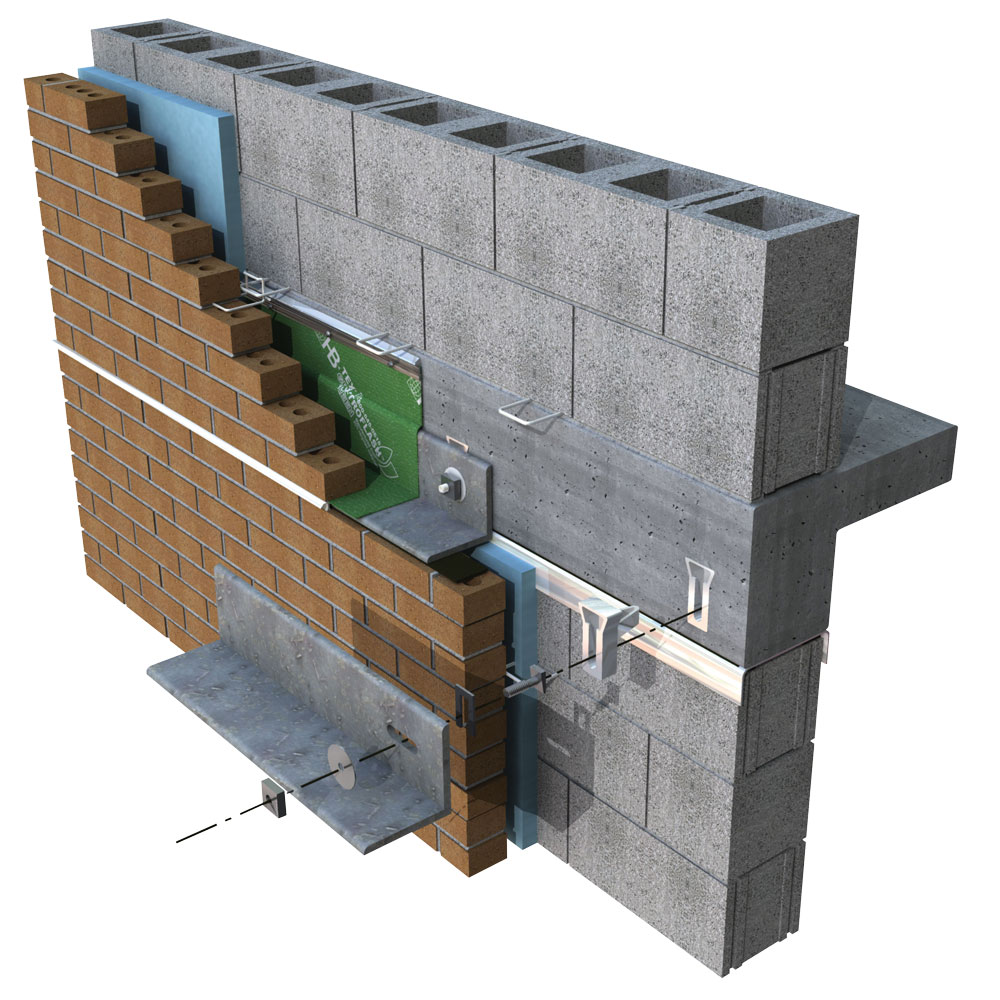

HW-340 Malleable Iron Wedge Inserts are embedded into concrete slabs to allow for secure and adjustable attachment of materials to a concrete structure.
- HW-340 Standard Wedge Insert must be installed at least 1-1/2" from bottom of slab.
- Nail holes in the back of the insert allow easy nailing to forms.
- When the forms are stripped, the open face of the insert is flush with the concrete.
- The beveled head of the askew head bolt engages the internal wedge shape of the insert and produces an automatic tightening action when a load is placed on it.
- Available Hot Dip Galvanized.
|HW-340||16,650 lbs.||13,093 lbs.||4,125 psi||150 ft./lbs.|
All values listed are ultimate capacities in pounds which should be reduced by a minimum safety factor of three to determine the allowable working loads.
- LW-340 Long Wedge Insert is suitable for use at the bottom of the slab or when additional vertical adjustability is needed.
Askew Head Bolt
- 3/4” dia. x 2”, 2-1/2”, 3” or 4” long.
- Available Plain, Stainless Steel or Zinc Plated. Hot Galv available on special order.
- Askew Head Bolt Performance Data: Carbon Steel
|Carbon Steel||60,000 psi minimum Tensile Strength|
|Stainless Steel||70,000 psi minimum Tensile Strength|
