HB RS EZCLAD RAINSCREEN SUPPORT SYSTEM

HB RS EZclad Rainscreen Support System-1
HB RS EZclad Rainscreen Support System-0
HB RS EZclad Rainscreen Support System-1
HB RS EZclad Rainscreen Support System-0
HB RS EZclad Rainscreen Support System-0
HB RS EZclad Rainscreen Support System-1
DOCUMENTS & DOWNLOADS
Submittal SheetsClick on the text link below to download

Submittal SheetsPDF Downloads

SafetydataClick on the text link below to download

Safety Data SheetsPDF Downloads

Megaphone
Ask us a question about this product

Want to share a product?

Or Share on Social

PRODUCT DESCRIPTION

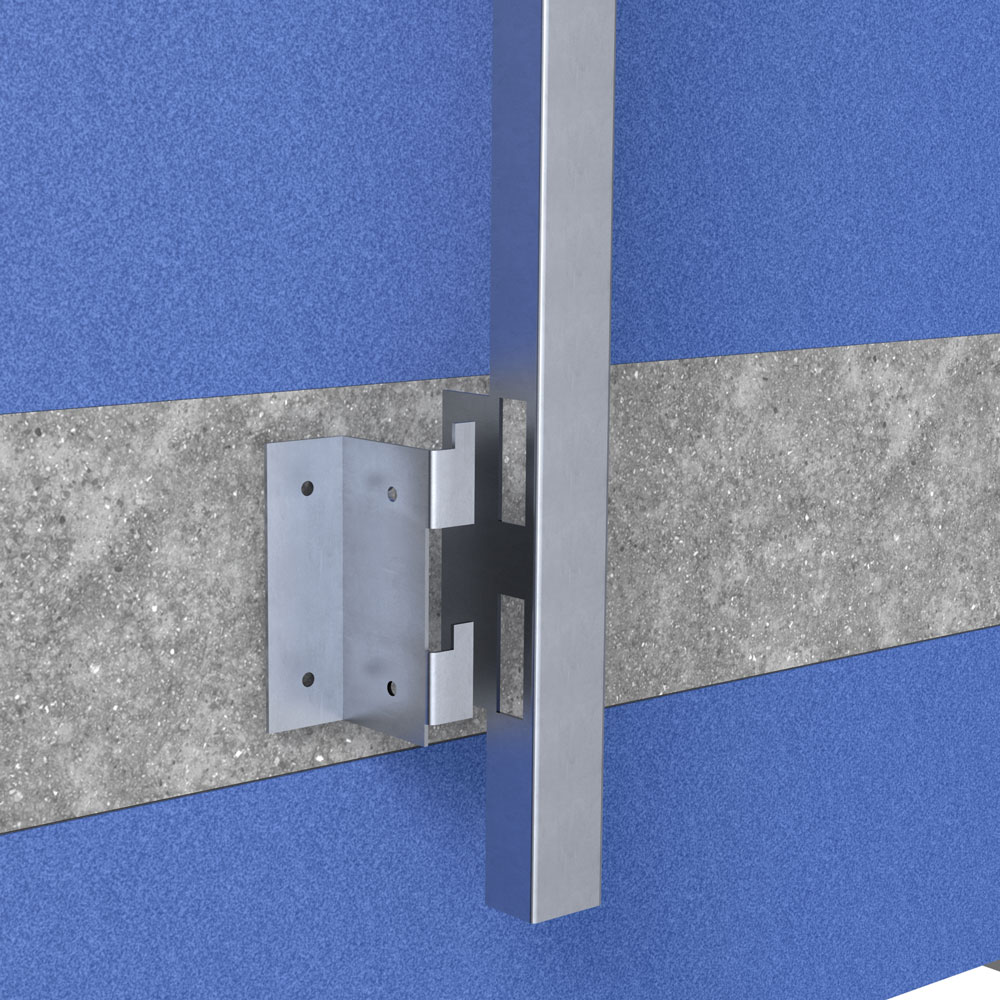

The HB RS EZclad Rainscreen Support System is fully engineered to project conditions by H&B’s team of engineers. The system uses stainless steel structural connecting components, in lieu of aluminum. This reduces conductivity by 93% over pure aluminum, while increasing thermal efficiency.

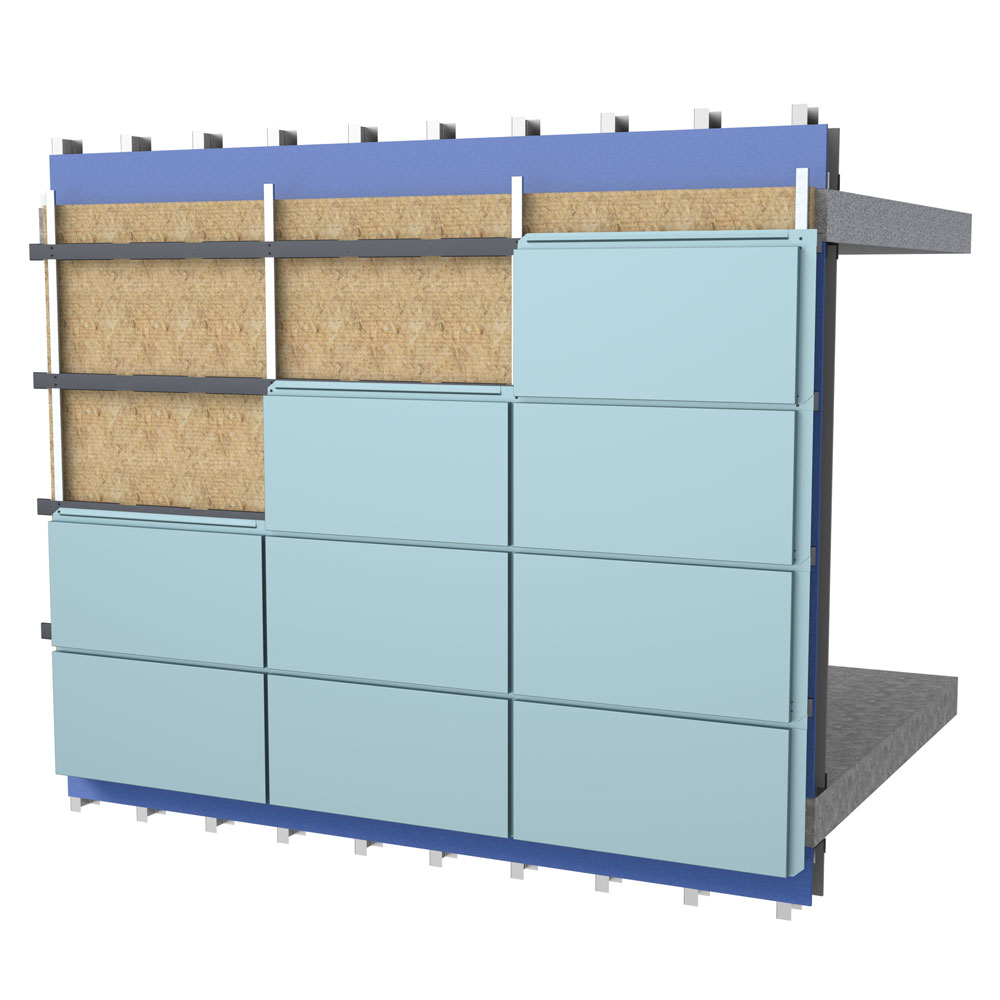

The rail consists of a high-quality aluminum for inward and outward adjustability and fastening flexibility. HB RS EZclad accepts various rainscreen cladding and attachment clips. This system can span 100 inches before a midspan bracket connection is needed, further reducing thermal bridging.

BENEFITS:

  • Customized to specific project conditions
  • Includes structural connection, rail, engineering calculations, and shop drawings
  • Does not interrupt continuous insulation
  • Thermal shims can be added for increased thermal efficiency
  • Can be powder coated or anodized for aesthetics
  • Engineered by Hohmann & Barnard
