PRODUCT DESCRIPTION

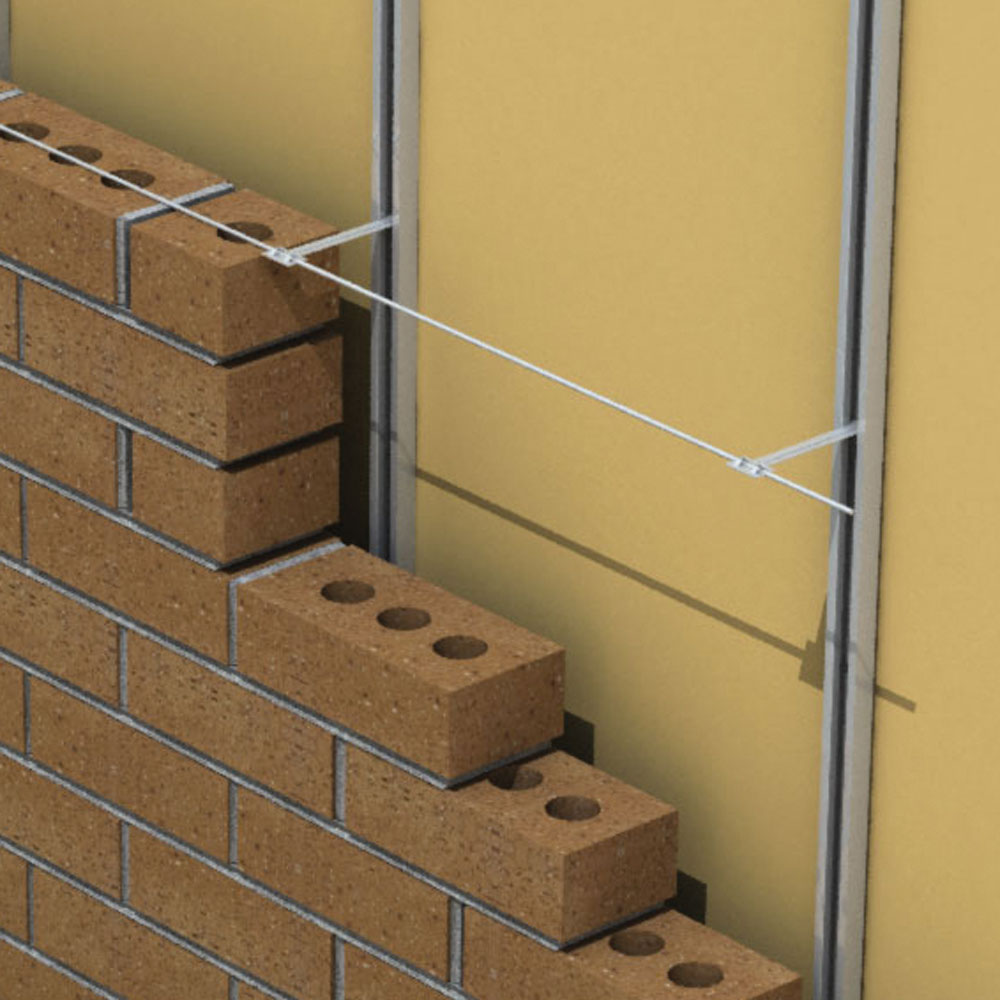

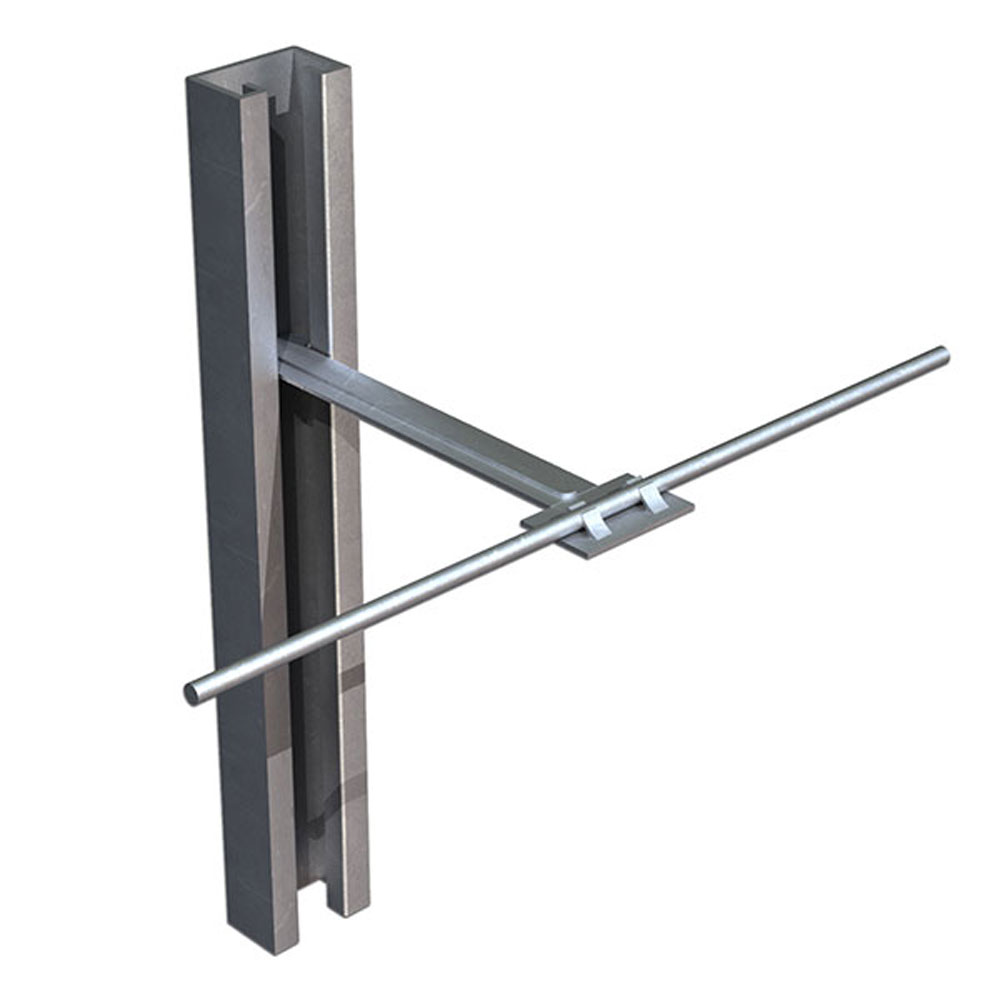

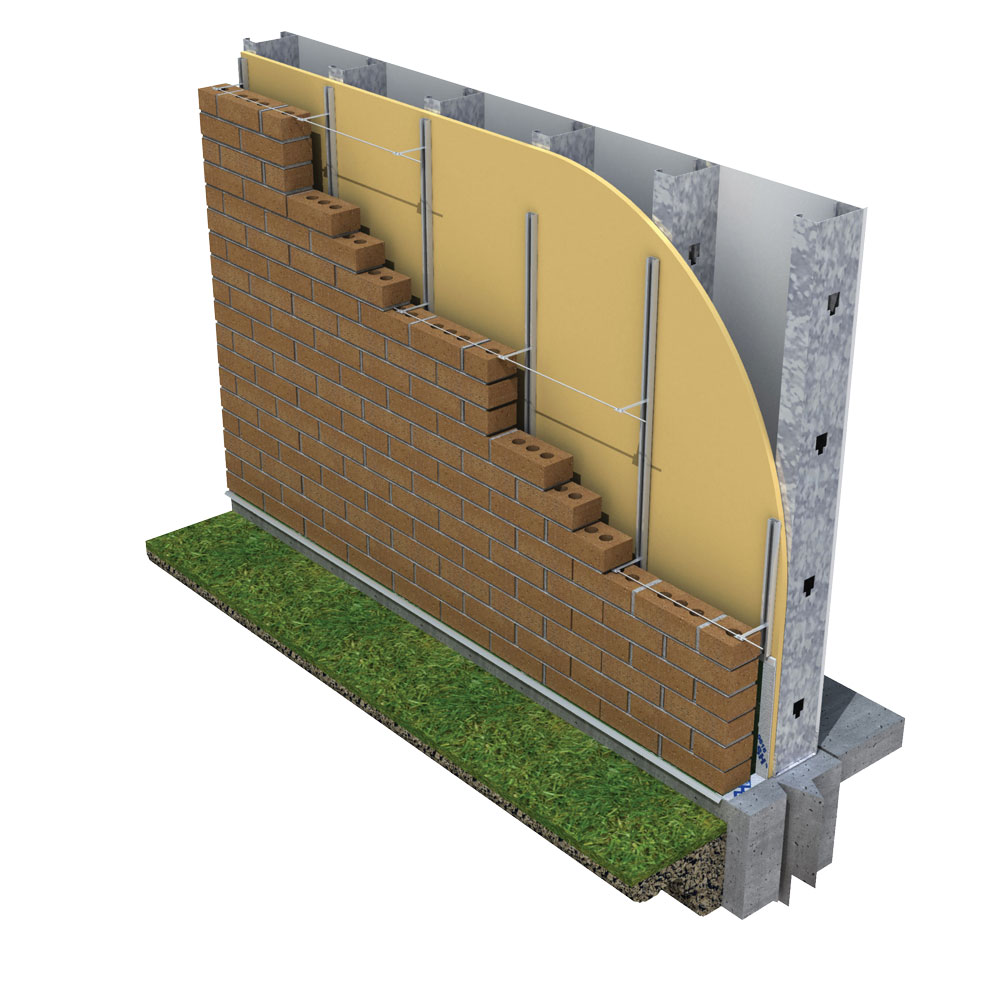

The Channel-Tee Seismic-Notch Anchor System is ideal for use where maximum vertical adjustability is preferred. The Continuous Channel is surface mounted to the back-up. The Seismic-Notch Anchor is then easily inserted into the channel anywhere along the vertical length to conveniently fit wherever the mortar joint lies. Continuous joint reinforcing wire is easily inserted into the seismic notches of each anchor.

DIMENSIONS/GAUGES:

  • Thin 5/8" profile of channel is ideal for tight cavity conditions. Channel provided in 10’ lengths
  • Holes drilled 12" on center in channel
  • Seismic-Notch Anchor available 14 ga. thick by 3", 4" or 5" long.
  • Other sizes available upon request.

AVAILABLE FINISHES (all components):

  • Mill Galvanized
  • Hot Dip Galvanized
  • Stainless Steel
