CAST ALUMINUM BRICK VENTS

Product Image
Product Image
Product Image
Product Image
Product Image
Product Image
Product Image
Product Image
Product Image
Product Image
Product Image
Product Image
GearGear
Submittal Package Generator
MegaphoneMegaphone
Ask us a question about this product

Want to share a product?

Copy product URL

Or Share on Social

PRODUCT DESCRIPTION

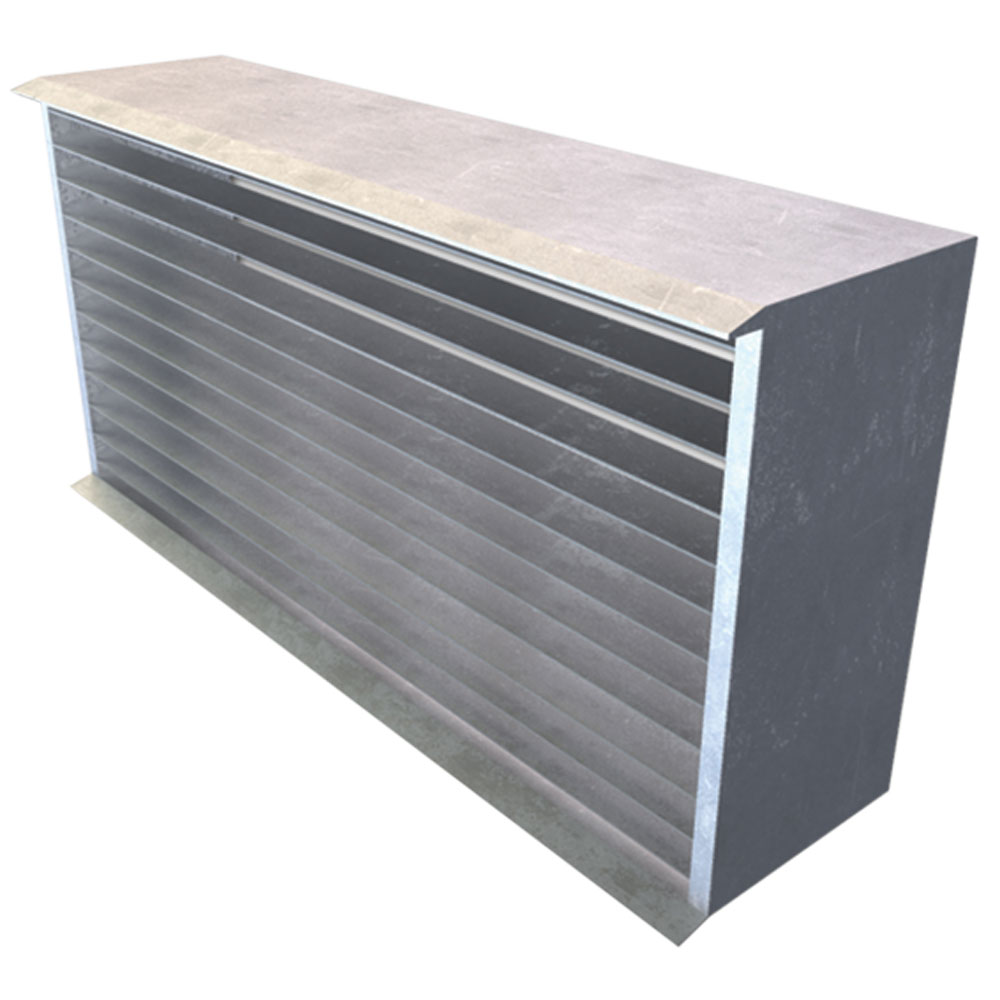

Style "CA" brick vents features:

  • Cast Aluminum
  • Mill Finish*
  • Rear waterstop
  • Load-bearing
  • One piece molded unit
  • Overlapping blades
  • Continuous bottom weepage

GAUGES:

  • Minimum .125" thick

SIZES:

 Nominal Sizes
W x H  x 4" Deep
BVCA8258" x 2-1/4"
BVCA8478-1/4" x 4-15/16"
BVCA8088" x 7-7/8"
BVCA12312" x 2-3/4"
BVCA12412" x 3-1/2"
BVCA12512" x 5"
BVCA12812" x 7-3/4"
BVCA16216-1/2" x 2-3/8"
BVCA160416" x 4"
BVCA16416" x 4-15/16"
BVCA16616" x 6"
BVCA16816" x 7-3/4"

AVAILABLE FINISHES:

  • Cast aluminum vents are standard in mill finish and do not contain mortar ribs.
  • Available in baked enamel at extra charge.

NOTES:

  • All extruded and cast vents can be equipped with operable dampers & ducts.
  • FOR "FREE AREA" INFORMATION, PLEASE DOWNLOAD THE SUBMITTAL SHEET.

Sizes

BVCA825 (8" x 2-1/4" x 4")BVCA847 (8-1/4" x 4-15/16" x 4")BVCA808 (8" x 7-7/8" x 4")BVCA123 (12" x 2-3/4" x 4")BVCA124 ( 12" x 3-1/2" x 4")BVCA125 (12" x 5" x 4")BVCA128 (12" x 7-3/4" x 4")BVCA162 (16-1/2" x 2-3/8" x 4")

Sizes

BVCA1604 (16" x 4" x 4")BVCA164 (16" x 4-15/16" x 4")BVCA166 (16" x 6" x 4")BVCA168 (16" x 7-3/4" x 4")

Finishes/Materials

Aluminum
