PRODUCT DESCRIPTION

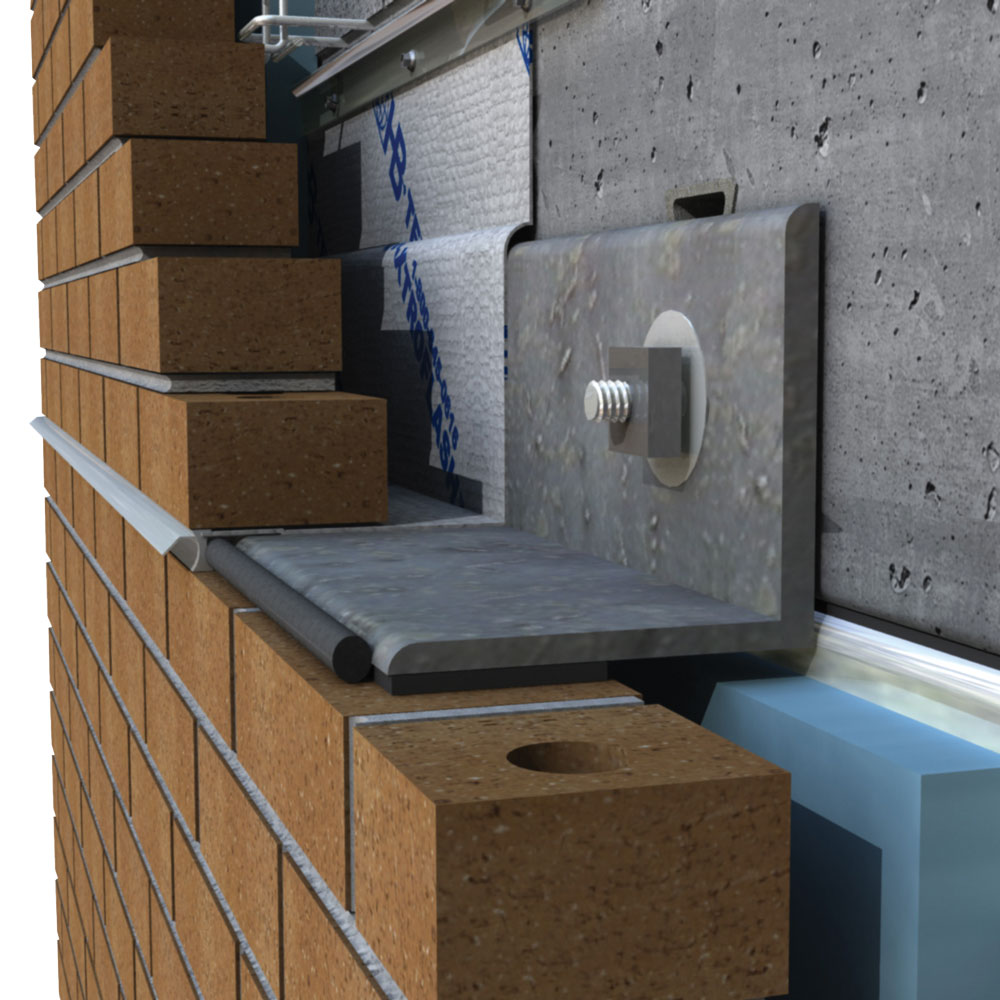

Standard Backer Rod is an ideal non-absorbent compressible backup material for insertion into a joint to, control sealant depth, create a backstop to allow proper sealant tooling, allow proper sealant of the joint surfaces, and yield a proper bond between the back-up material and the sealant. It can also be used as a temporary joint seal.

  • Commonly used for glazing operations, window and door applications, expansion joints, curtain wall joints, partitions, log construction or pavement joints.
  • Standard Backer Rod is an extruded round, closed cell, low density polyethylene foam material with a skin-like outer texture. It is highly flexible and compressible for easy installation.
  • This material is compatible with butyl, polysulfide, acrylic, polyurethane, silicone and most other cold sealants.

MATERIAL CONFORMANCE:

  • ASTM D1622
  • ASTM D1621
  • ASTM C5090
  • ASTM C335

DIMENSIONS:

  • Available from 1/4" DIA to 6" DIA

Sizes

1/4" DIA (4000 FT/BOX)3/8" DIA (2100 FT/BOX)1/2" DIA (2500 FT/BOX)5/8" DIA (1550 FT/BOX)3/4" DIA (1100 FT/BOX)1" DIA (600 FT/BOX)1 1/4" DIA (400 FT/BOX)1 1/2" DIA (420 FT/BOX)2 1/2" DIA (162 FT/BOX)2" DIA (252 FT/BOX)3" DIA (102 FT/BOX)

Sizes

4" DIA (54 FT/BOX)CUSTOM
