365 - BENT GRIPSTAY™ CHANNEL SLOT ANCHOR
Click on the text link below to download
Submittal SheetsPDF Downloads
Click on the text link below to download
Safety Data SheetsPDF Downloads
Click on the text link below to download
LEED / TransparencyPDF Downloads
Click on the text link below to download
CADZIP Downloads

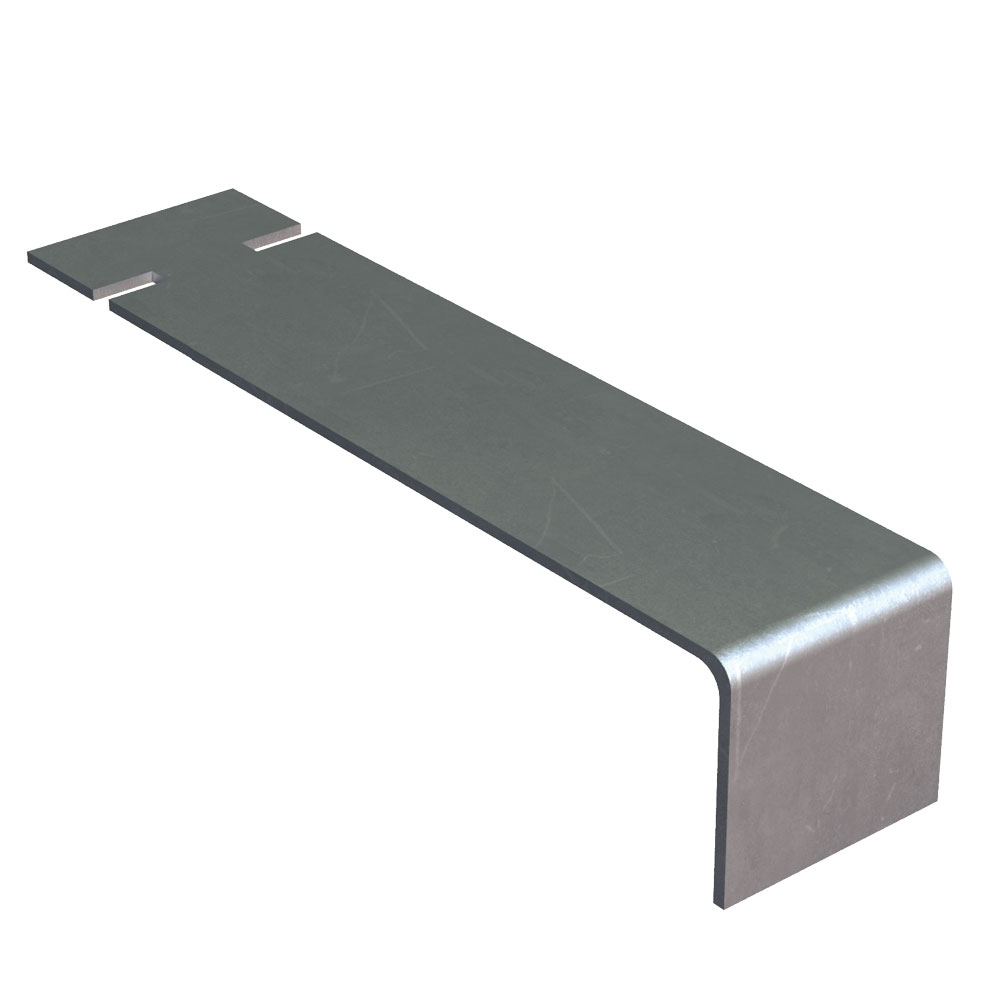

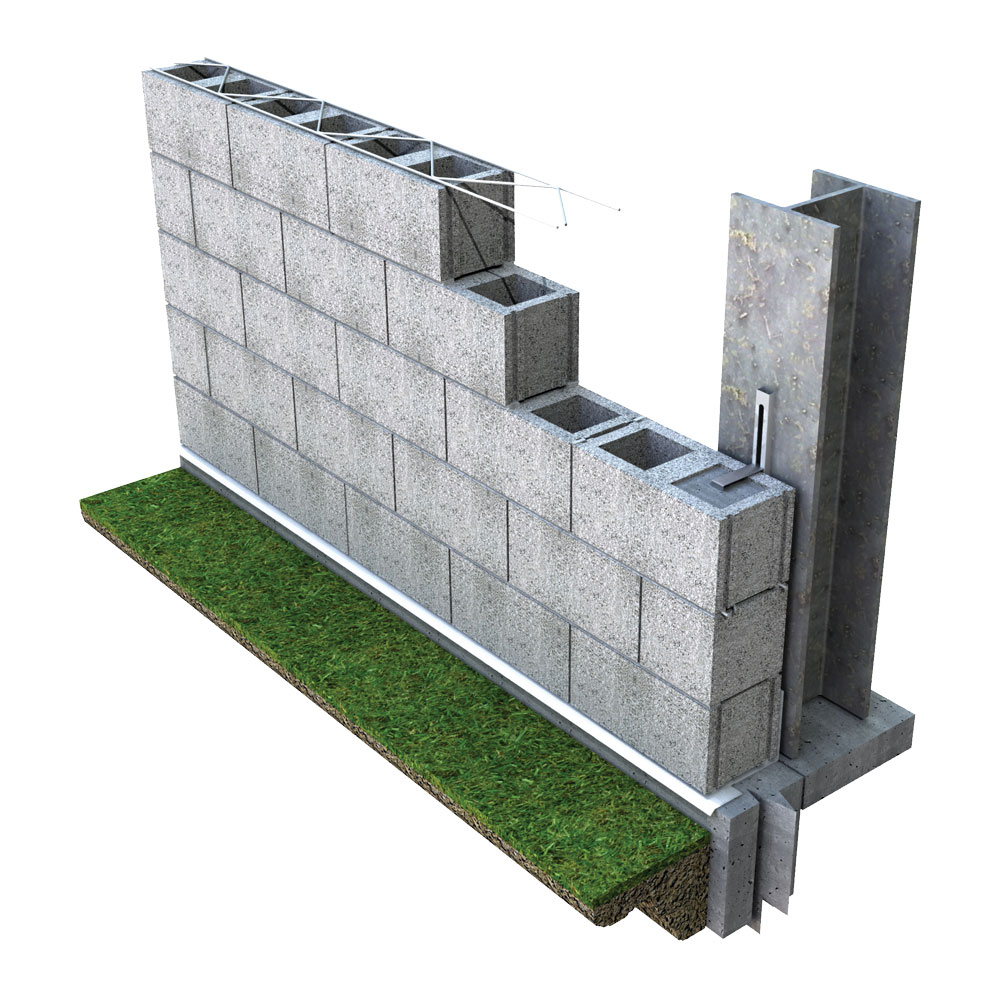

The 365 Bent Gripstay™ Channel Slot anchor ties masonry to steel columns, concrete or existing walls
- The 365 has standard 1" bend.
- Longer bends available upon request

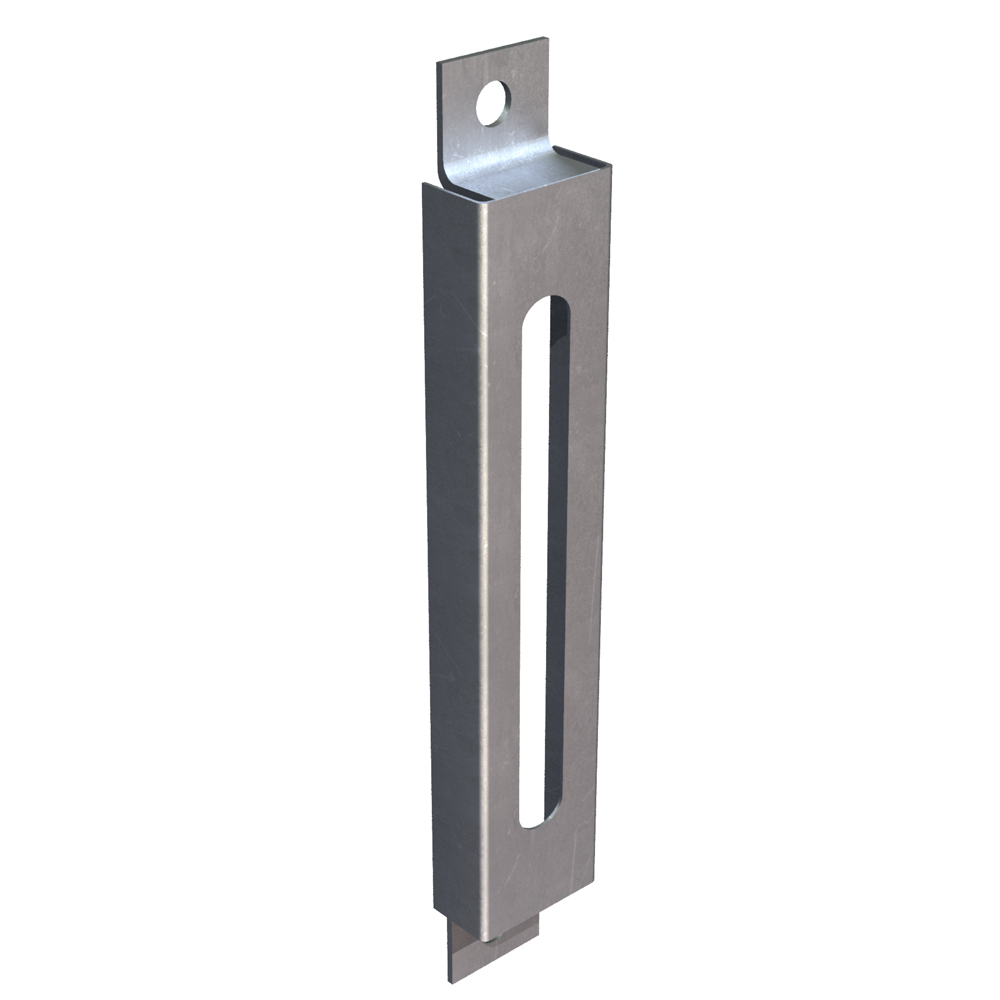

- For use with all H&B Gripstay Channels.
GAUGES:
- 1 1/4" wide x 16 ga., 14 ga. or 12 ga. thick
AVAILABLE FINISHES:
- Mill Galvanized
- Hot Dip Galvanized
- Stainless Steel
DIMENSIONS:
- Available in any length (length taken from face of channel)
CUSTOM (standard lengths 2 1⁄2" - 8 1⁄2")
12 gauge14 gauge16 gauge
Structural Steel (Column & Beam)
Hot-Dip GalvanizedType 304 - Stainless SteelType 316 - Stainless Steel (Special Order)
1"
