PRODUCT DESCRIPTION

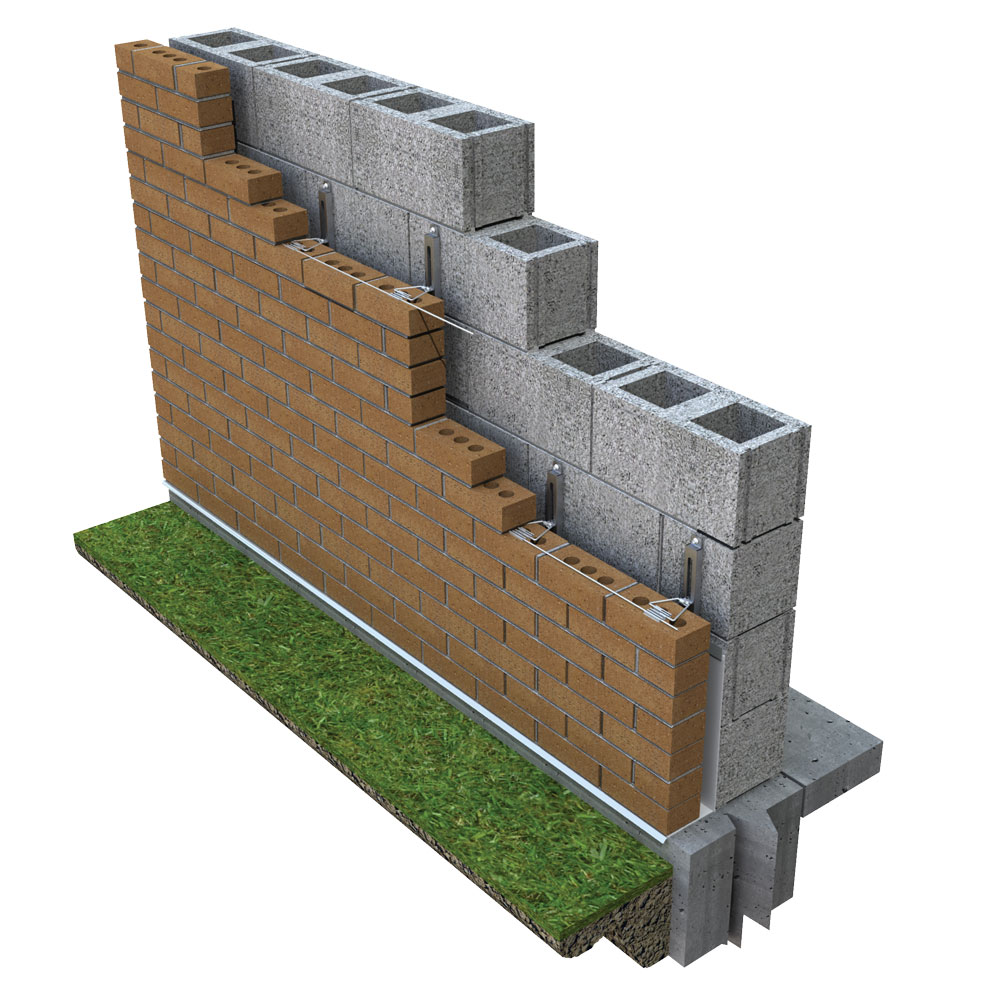

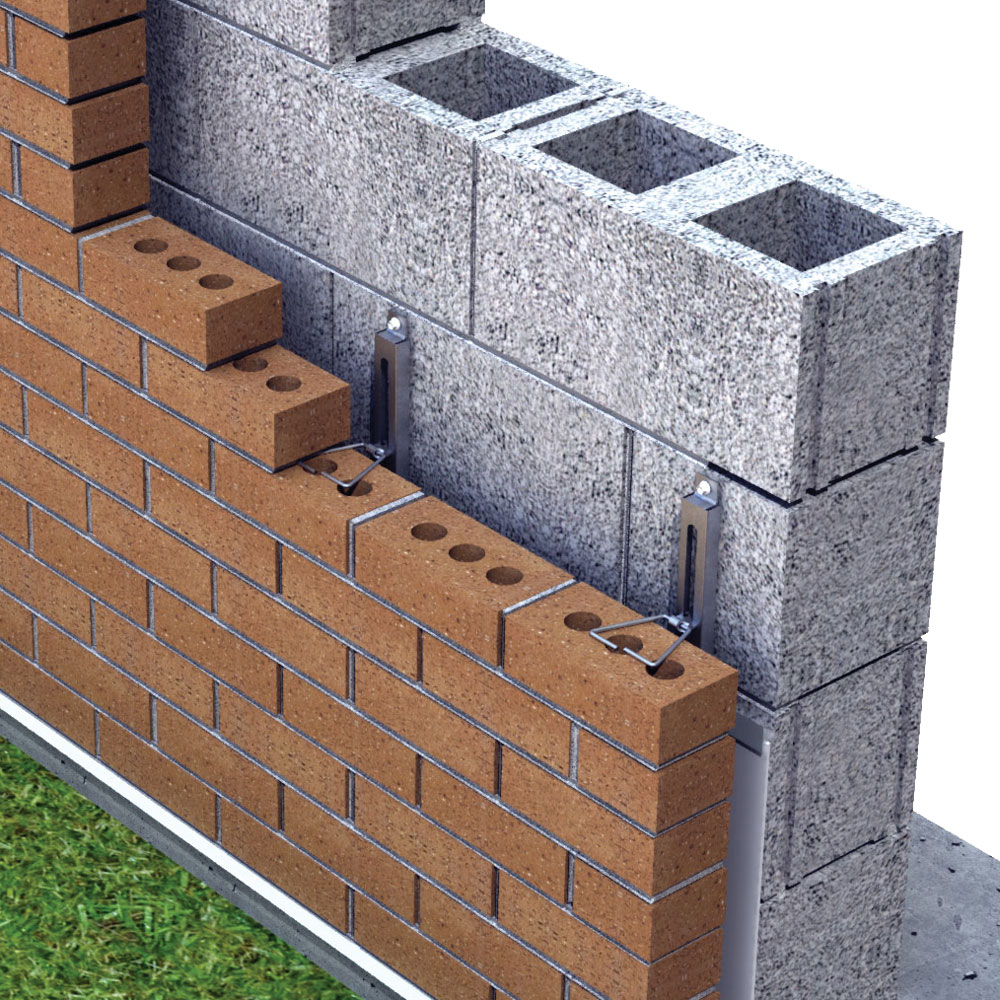

The 363 - Flexible Gripstay™ Channel Anchor Head permits horizontal and vertical movement of the masonry wall while restraining the wall from moving laterally out of plane.

DIMENSIONS:

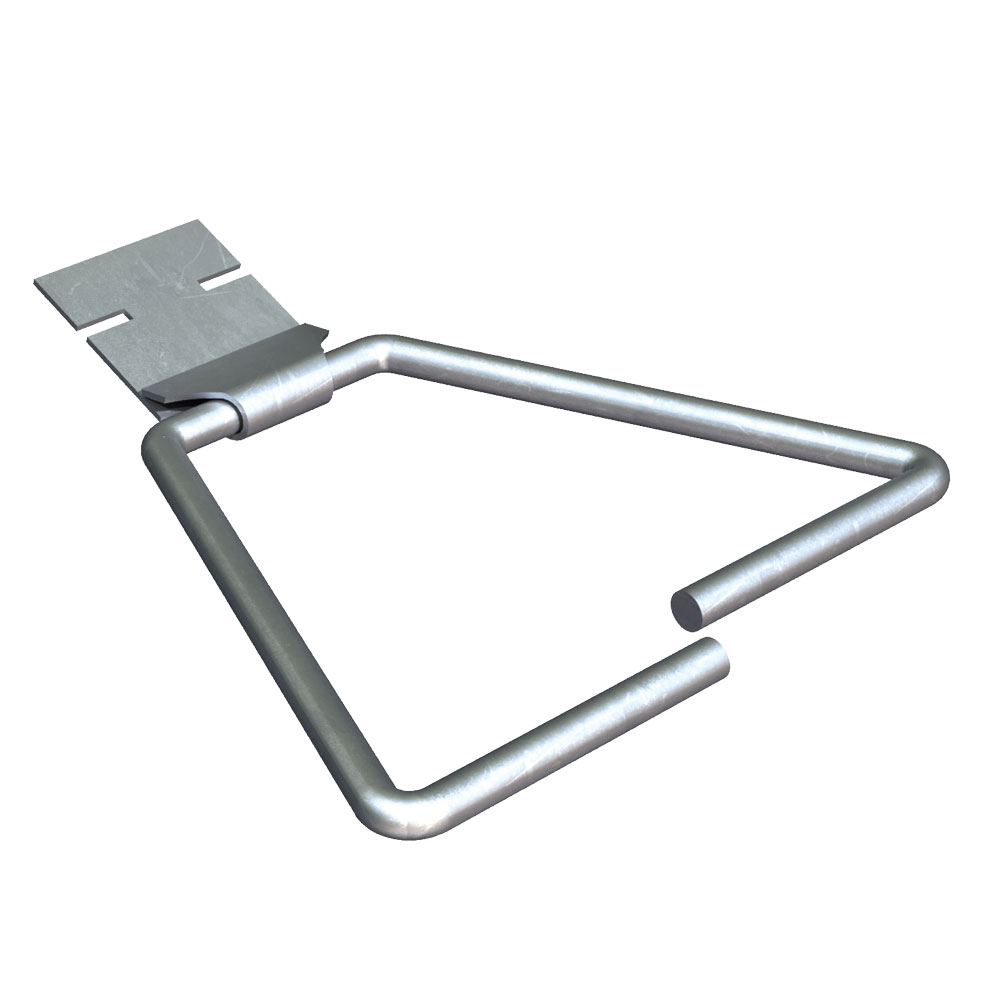

  • Gripstay™ head is 14 ga. thick x 1-1/4" wide (Standard)
  • Vee Wall Tie is 3/16" dia. x 3", 3 1/2", 4", 4 1/2", or 5"
  • Other sizes available upon request

AVAILABLE FINISHES:

  • Hot-Dip Galvanized
  • Stainless Steel

Finishes/Materials

Hot-Dip GalvanizedType 304 - Stainless SteelType 316 - Stainless Steel (Special Order)

Lengths

3"3 1/2"4"4 1/2"5"CUSTOM

Thickness/Gauge

12 gauge

Backup Type

BrickCMUConcreteStructural Steel (Column & Beam)

Wire Diameter

3/16" Ø
