354 - NOTCHED COLUMN ANCHOR (CORRUGATED TYPE)
Click on the text link below to download
Submittal SheetsPDF Downloads
Click on the text link below to download
Safety Data SheetsPDF Downloads
Click on the text link below to download
CADZIP Downloads

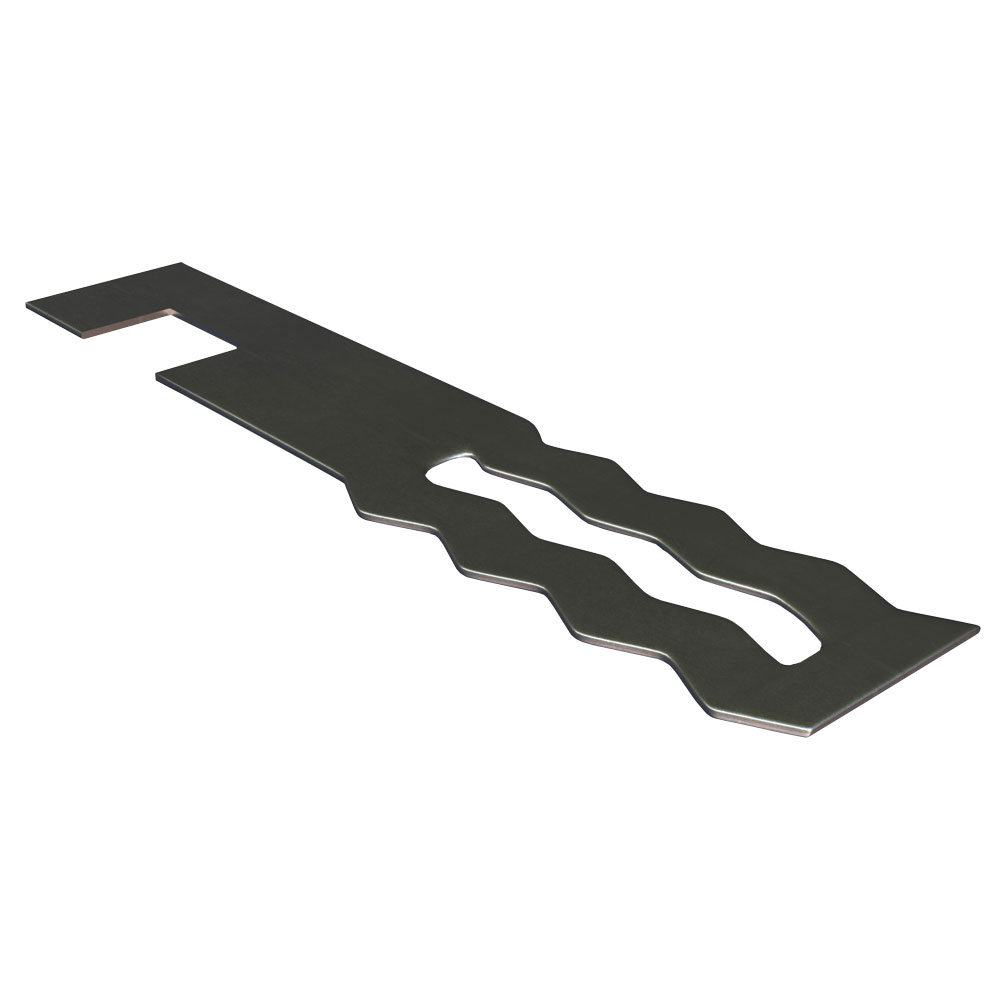

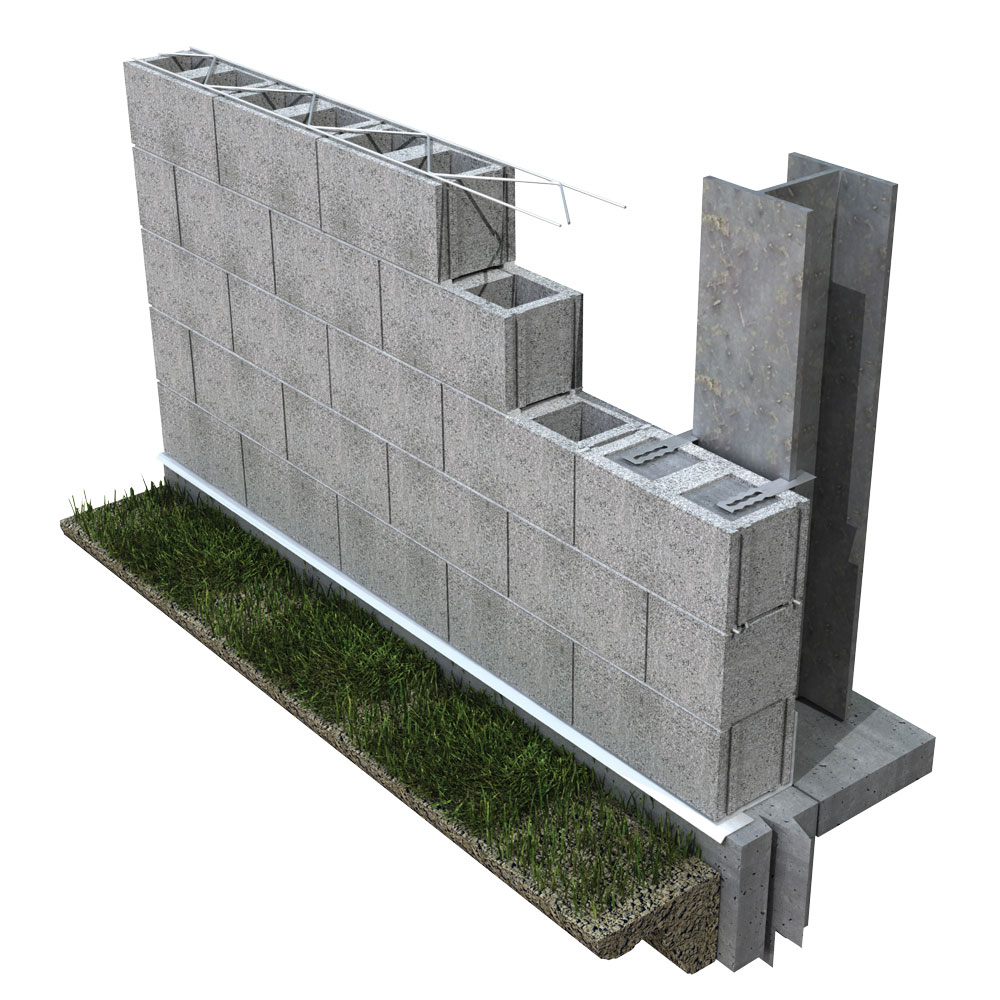

The 354 - Notched Column Anchor (Corrugated Type) is for anchoring masonry to structural columns when masonry is parallel to the column flange
DIMENSIONS/GAUGES:
- Standard Notch is 1" long, beginning 1" from end
- Standard size is 1 1/2" wide x 12 ga. thick
- Available in any length (length taken under notch)
AVAILABLE FINISHES:
- Mill Galvanized
- Hot Dip Galvanized
- Stainless Steel
NOTE:
- Also available in any other width, thickness or notch size upon request.
U.S. Patent No. 8,904,731
CUSTOM
12 gaugeCUSTOM
1 1/2"CUSTOM
Structural Steel (Column & Beam)
Hot-Dip GalvanizedType 304 - Stainless SteelType 316 - Stainless Steel (Special Order)
