345-BT- FLEXIBLE TIE
Click on the text link below to download
Submittal SheetsPDF Downloads
Click on the text link below to download
Safety Data SheetsPDF Downloads
Click on the text link below to download
LEED / TransparencyPDF Downloads
Click on the text link below to download
CADZIP Downloads

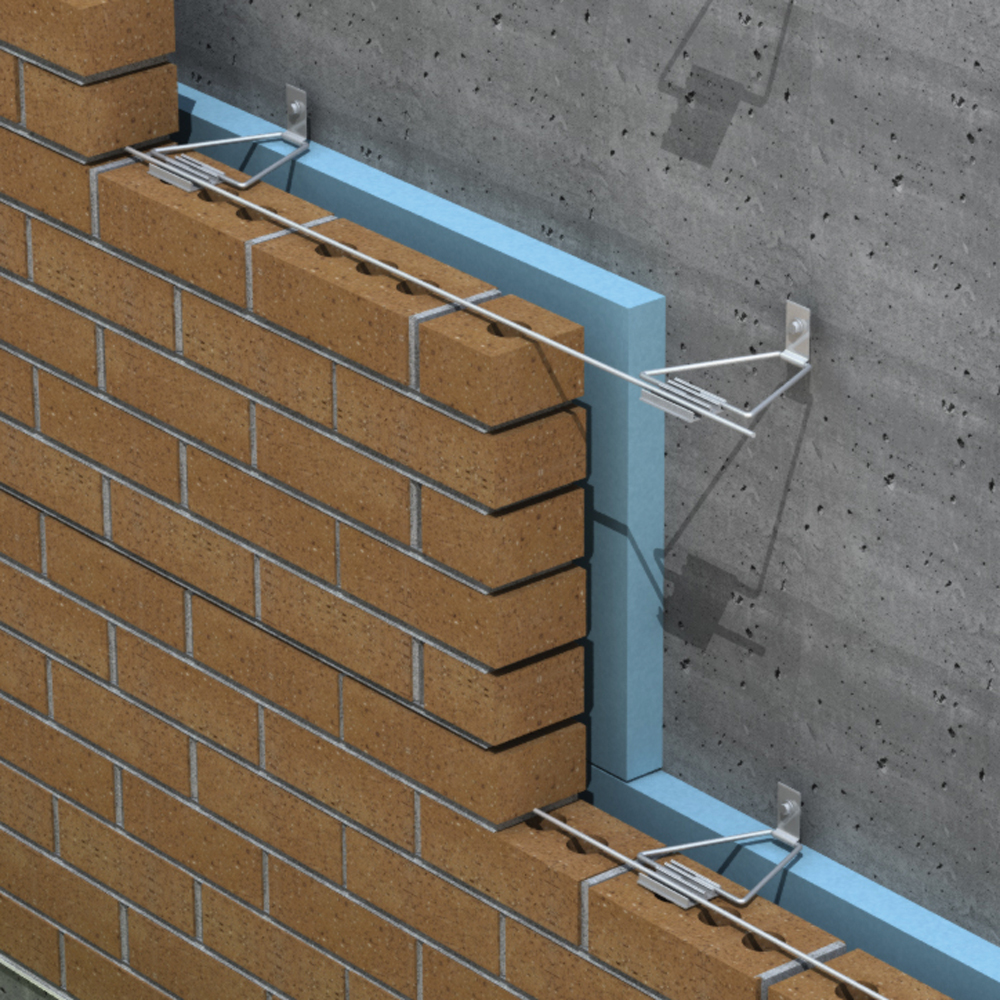

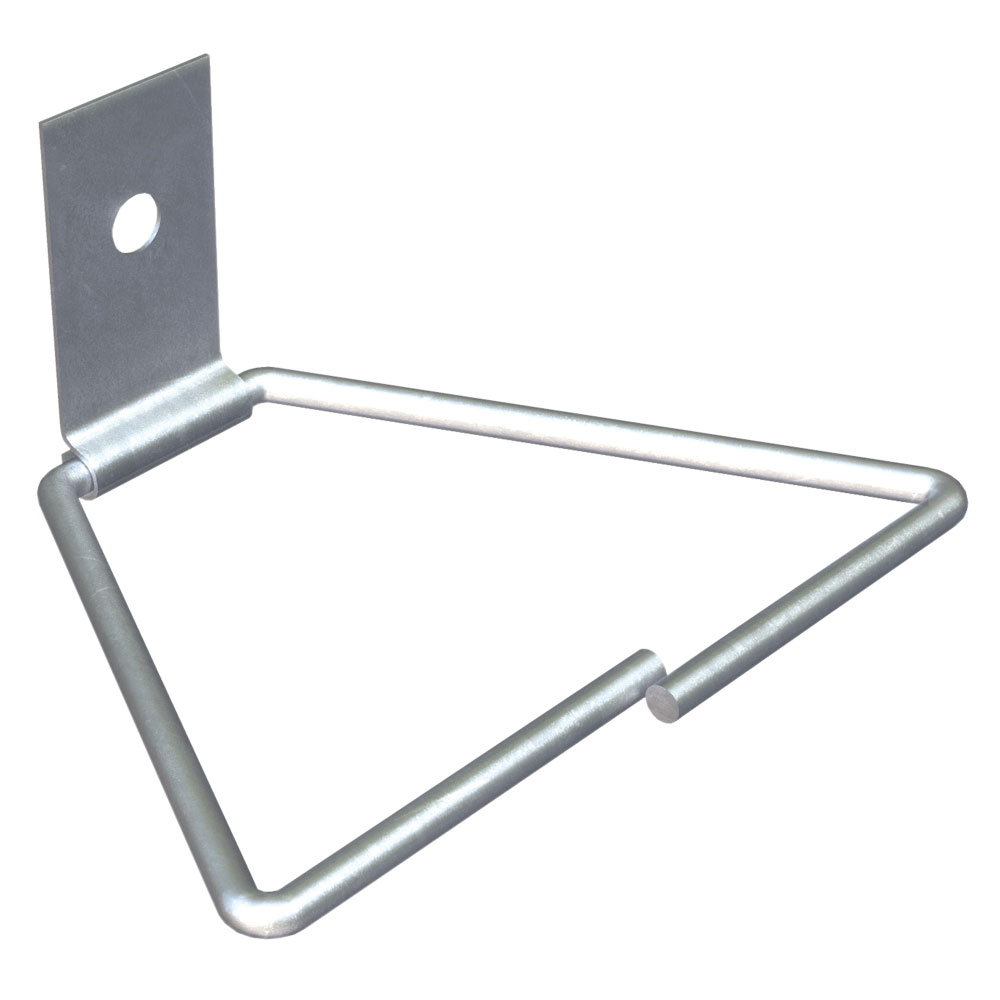

The 345-BT Flexible Tie is for tying masonry to concrete or CMU backup with a flexible (not rigid) connection. Comprised of a Vee Byna-Tie® with a wrap-around metal strap
GAUGES/DIMENSIONS:
- Standard
- Sheet steel is 3/4” wide x 12 ga. thick with 5/16” hole
- Vee Byna-Tie® portion is 3/16” diameter x 3”, 3-1/2”, 4”, 4-1/2”, 5”, 6” or 7” long
- Other, custom, sizes available upon request.
0"
9/32"Ø (STANDARD)
3"3 1/2"4"4 1/2"5"6"7"CUSTOM
12 gauge
BrickCMUConcreteWood StudMetal Stud
3/16" Ø1/4" Ø
Hot-Dip GalvanizedType 304 - Stainless SteelType 316 - Stainless Steel (Special Order)
1/2"
