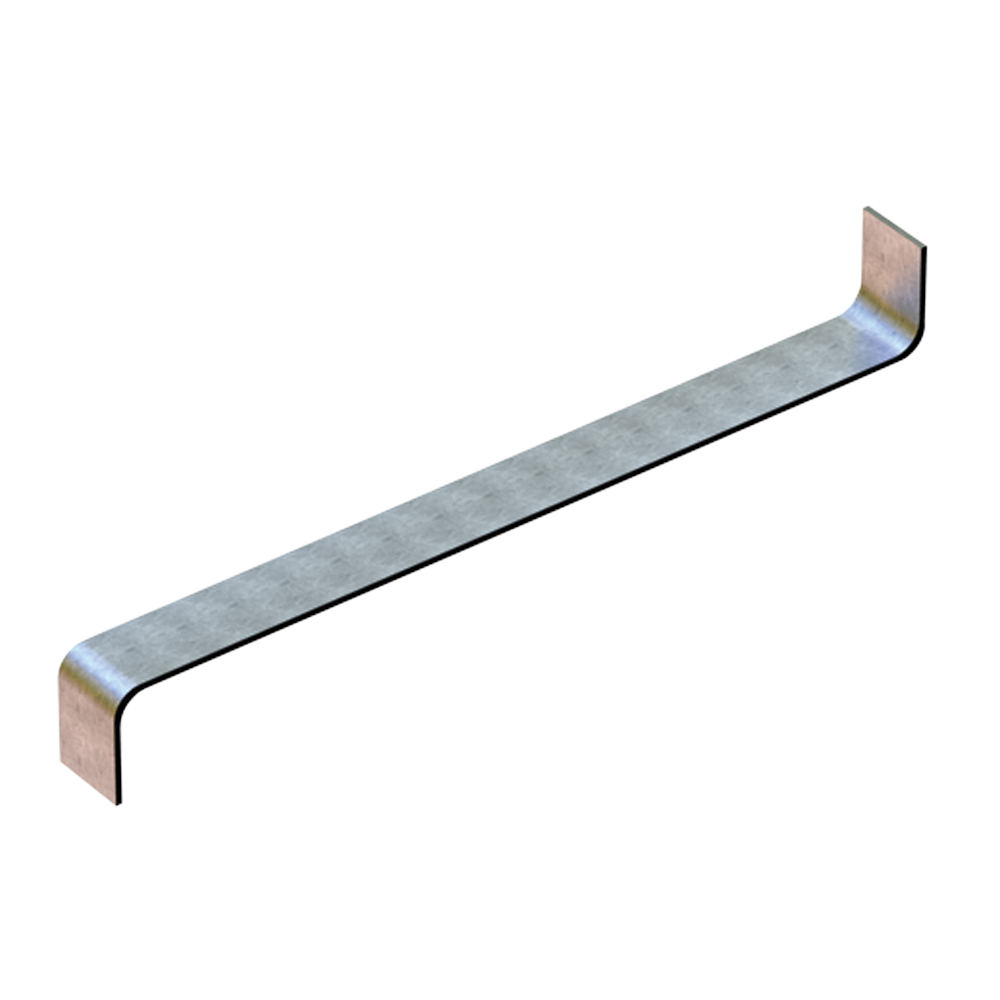

344 RIGID PARTITION ANCHOR
Click on the text link below to download
Submittal SheetsPDF Downloads
Click on the text link below to download
Safety Data SheetsPDF Downloads
Click on the text link below to download
LEEDPDF Downloads
Click on the text link below to download
CADZIP Downloads

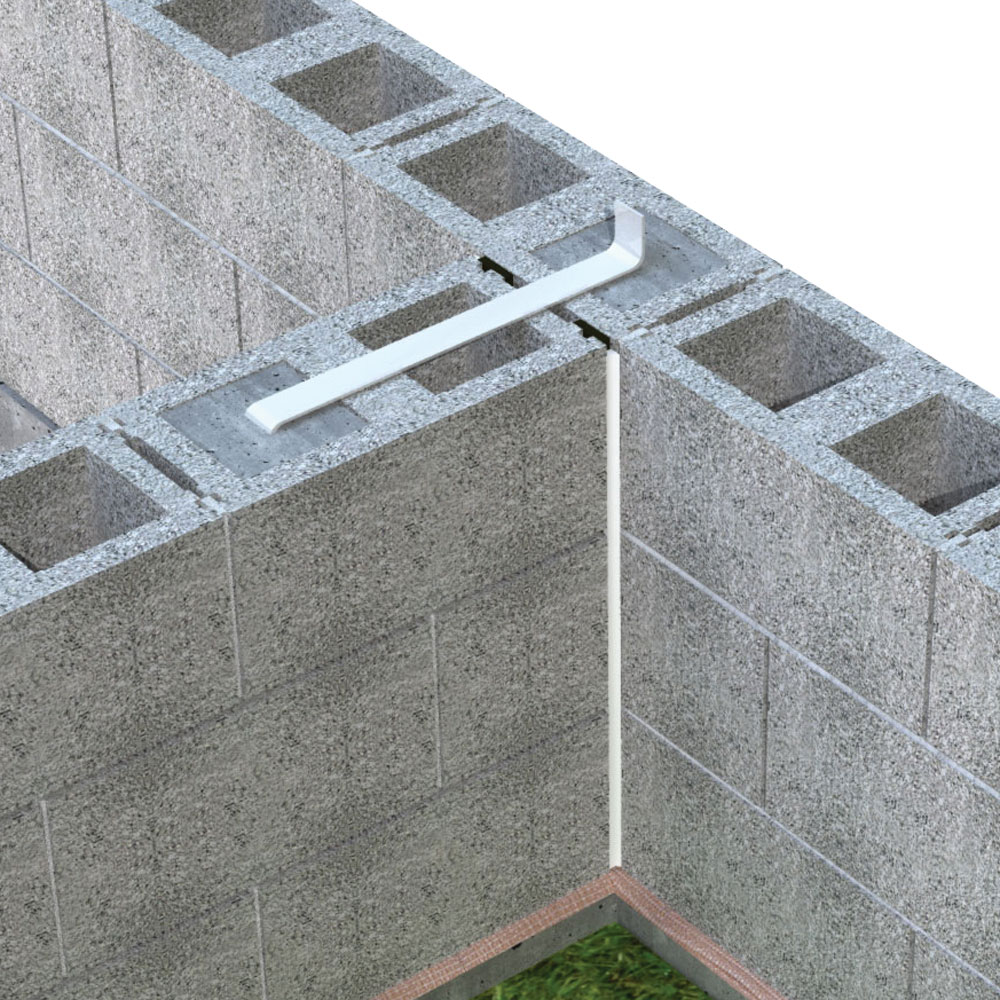

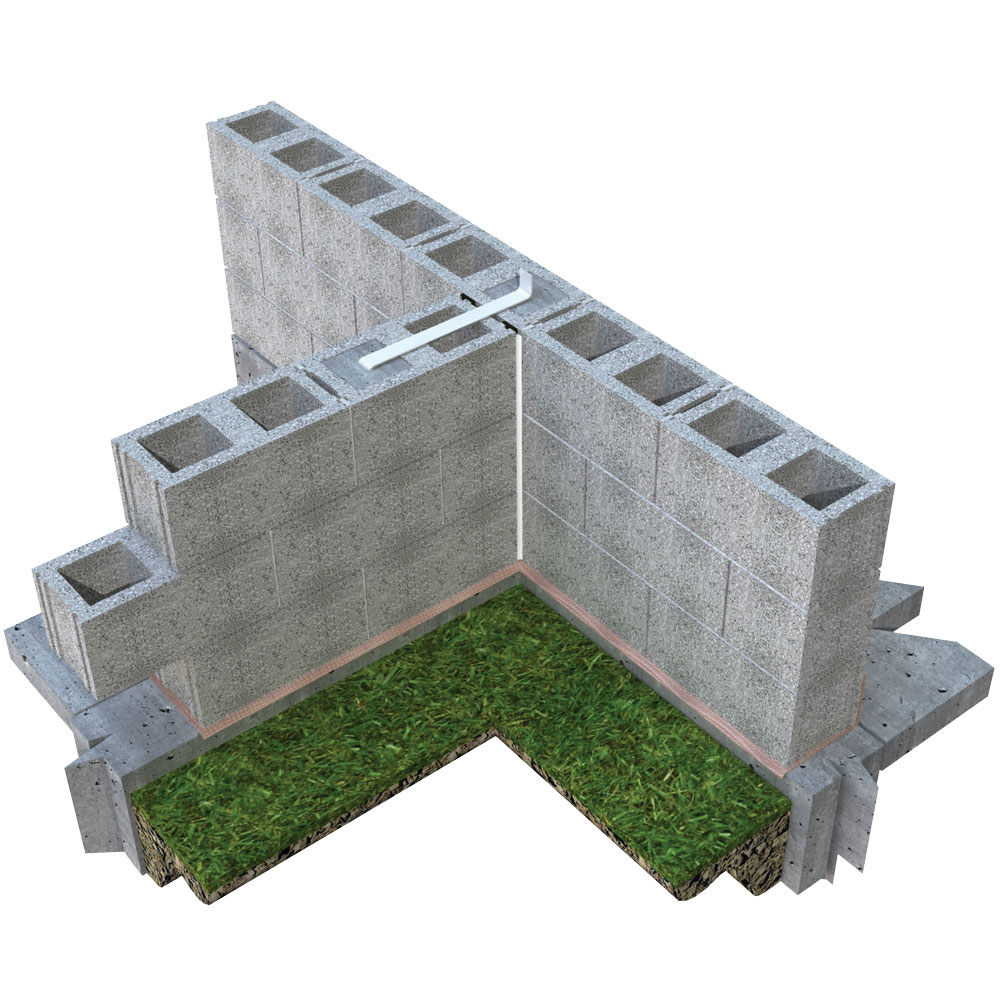

The 344 - Rigid Partition Anchor is for anchoring load bearing walls at intersections
AVAILABLE FINISHES:
- Plain Steel
- Hot Dip Galv.
- Stainless Steel
DIMENSIONS:
- Made to order from 1/8", 3/16", 1/4" or 3/8" bar stock. 1", 1-1/4", 1-1/2" or 2" wide by any length (state when ordering)
- Standard Bends are 2"
- Other sizes available upon request
24" (Standard)CUSTOM
1/8"1/4"3/16"CUSTOM
1"1 1/4"1 1/2"2"
Plain SteelHot-Dip GalvanizedType 304 - Stainless SteelType 316 - Stainless Steel (Special Order)
2" (Standard)
