280 LOOP-LOK™ LADDER REINFORCEMENT
Click on the text link below to download
Submittal SheetsPDF Downloads
Click on the text link below to download
Safety Data SheetsPDF Downloads
Click on the text link below to download
CADZIP Downloads

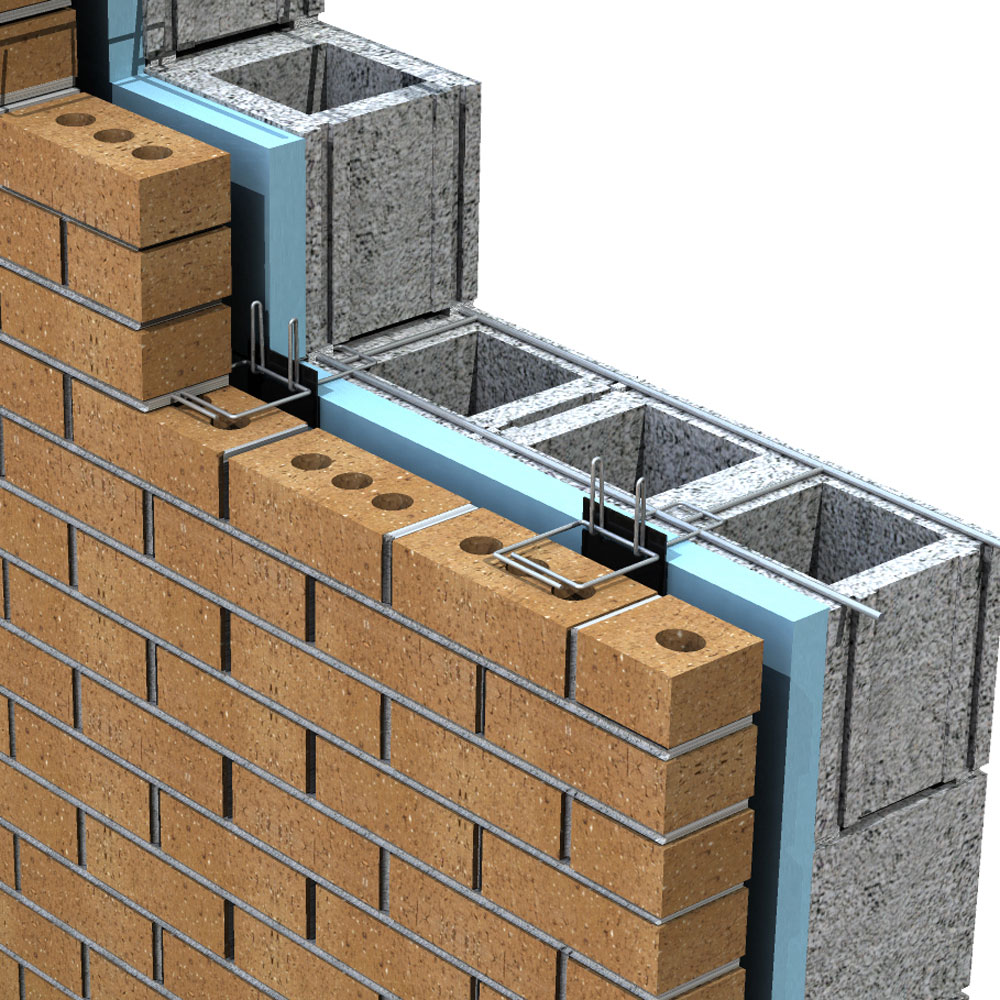

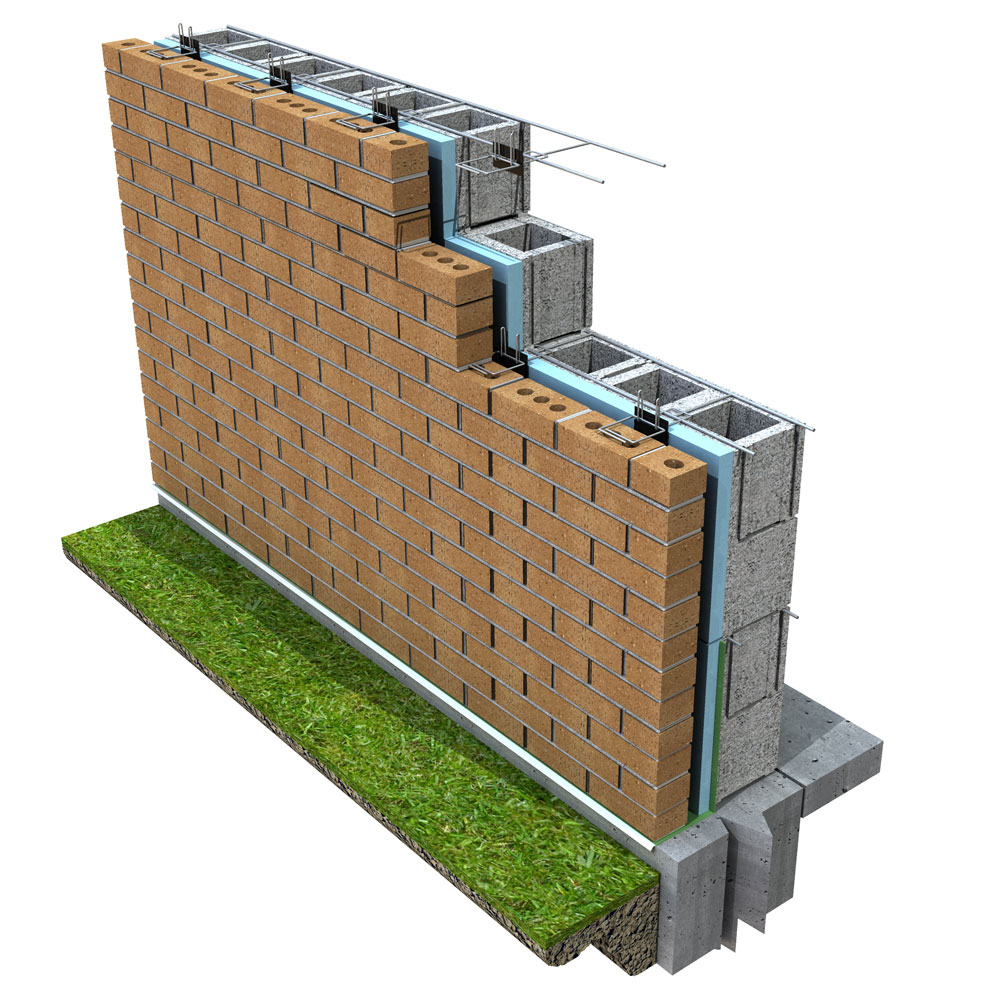

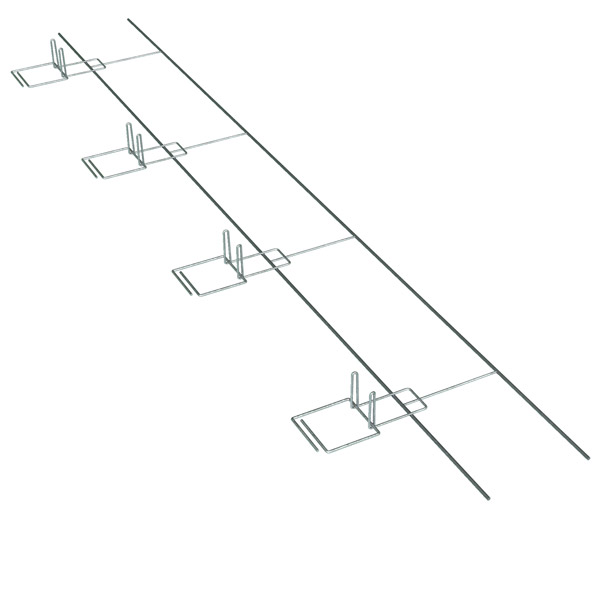

280 Dub'l Loop-Lok™ reinforcement improves upon other systems of adjustable masonry reinforcement. No other system offers all of the following features:
- Allows in-plane vertical and horizontal movement of masonry wythes while restraining tension and compression.
- Loops welded shut to maintain allowable tolerance and system integrity.
- Unlike horizontal eyelets, vertical loops will not clog with mortar as construction progresses.
- Loops extend one direction only to allow simple placement of insulation.
- 100% protection against separation of Wire Tie from reinforcement.
- Also available with the Seismiclip® Interlock System (280 S.I.S.), suitable for seismic zones.
- Fabricated in conformance with ASCE/ACI 530 building code requirements for masonry structures and ASTM A 951 (standard specification for masonry joint reinforcement).
- Optional Feature! Special loop with 2 ¼" vertical adjustability. Ideal for Econo or Utility Bricks. (Request when ordering.)
GAUGES:
- Reinforcing for interior wythe can be STANDARD WEIGHT (9 ga x 9 ga), EXTRA HEAVY (3/16" Side Rods x 9 ga Cross Rods) or SUPER HEAVY DUTY (all 3/16")
- Loops and Ties are 3/16" dia. standard
AVAILABLE FINISHES:
- Hot Dip Galvanized
- Stainless Steel
Veneer Cavity Wall Multi-Wythe
Hot-Dip GalvanizedType 304 - Stainless SteelType 316 - Stainless Steel (Special Order)
(S) Standard Weight: 9 Gauge Side Rods x 9 Gauge Cross Rods(EH) Extra Heavy: 3/16"Ø Side Rods x 9 Gauge Cross Rods(SHD) Super Heavy Duty: 3/16"Ø Side Rods x 3/16"Ø Cross Rods
4"6"8"10"12"14"16"
CMU
0.751.752.252.753.253.754.255.75CUSTOM
