2-SEAL™ TIE

Product Image
2-seal tie veneer anchor product image
Product Image
Product Image
Product Image
Product Image
2-seal tie veneer anchor product image
2-seal tie veneer anchor product image
Product Image
Product Image
Product Image
Product Image
GearGear
Submittal Package Generator
MegaphoneMegaphone
Ask us a question about this product

Want to share a product?

Copy product URL

Or Share on Social

PRODUCT DESCRIPTION

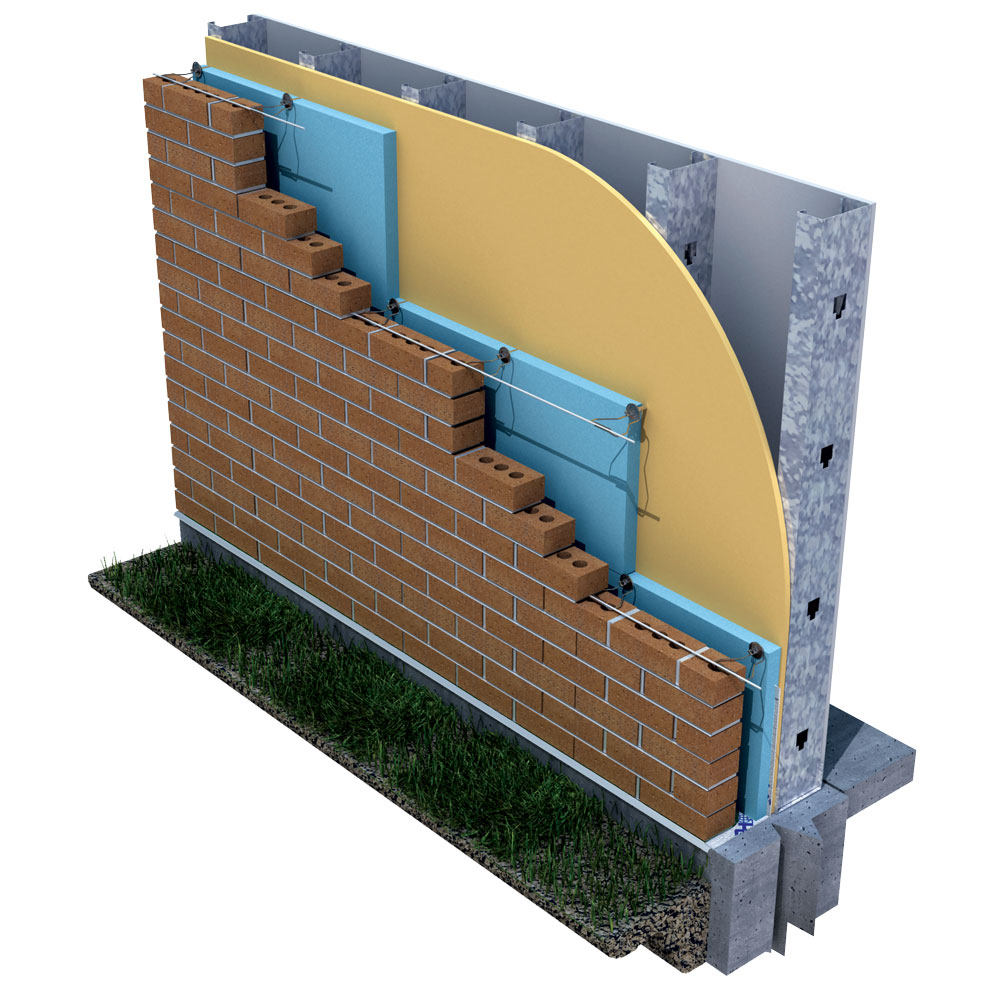

The 2-SEAL™ TIE is an innovative single screw veneer tie for metal stud construction

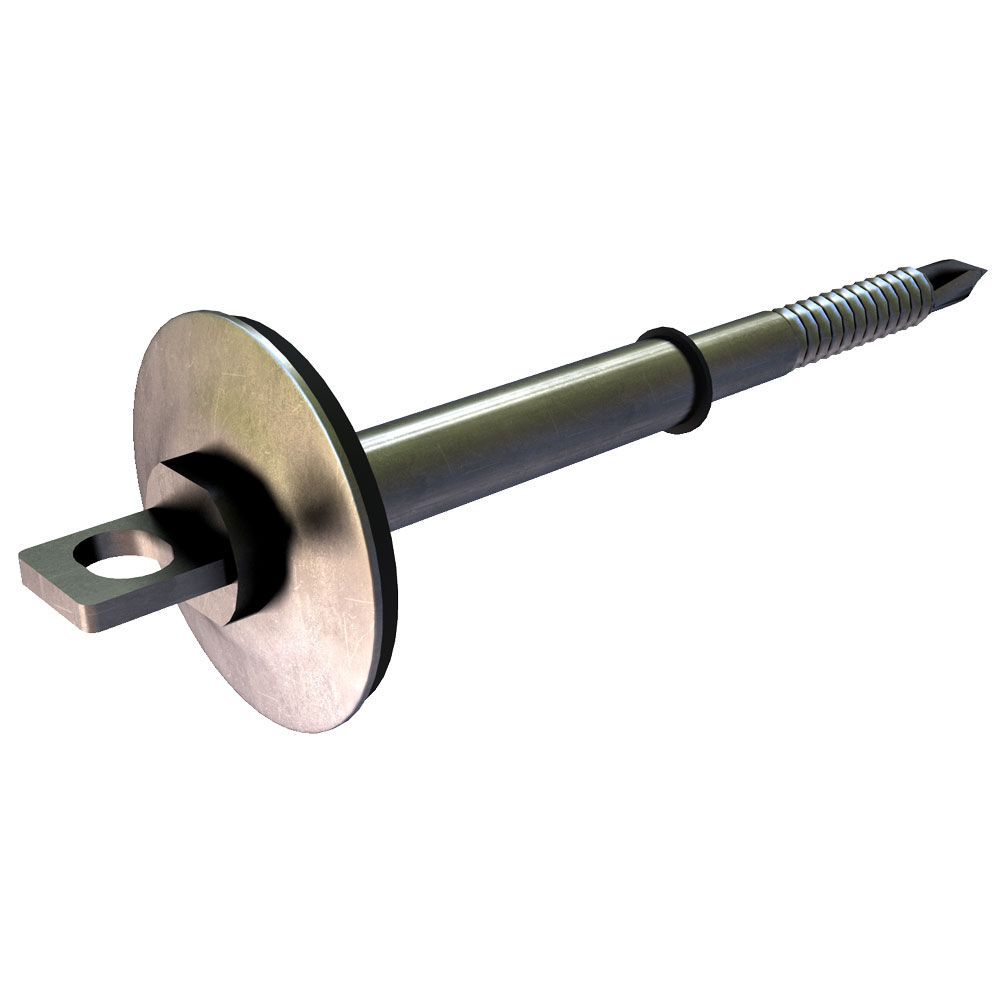

  • Fabricated from carbon steel with a premium quality organic polymer coating, the 2-SEAL™ TIE has a dual-diameter barrel with factory-installed EPDM washers to seal both the face of the insulation and the air/vapor barrier
  • This is an improvement over single barrel types which only seal at the insulation and render the vapor barrier susceptible to air and moisture infiltration if not precisely installed (perfectly perpendicular to the stud)
  • #12 screw integrated into the dual-diameter barrel
  • Barrel portion available in 5/8", 1", 1-1/2", 2", 2-1/2", 3", 3-1/2", 4", 4-1/2", 5", 5-1/2", 6", and 6-1/2" lengths to accommodate thickness of insulation and/or wallboard.

AVAILABLE FINISHES:

NOTES:

  • 2-Seal™ Chuck Adapter required for installation.

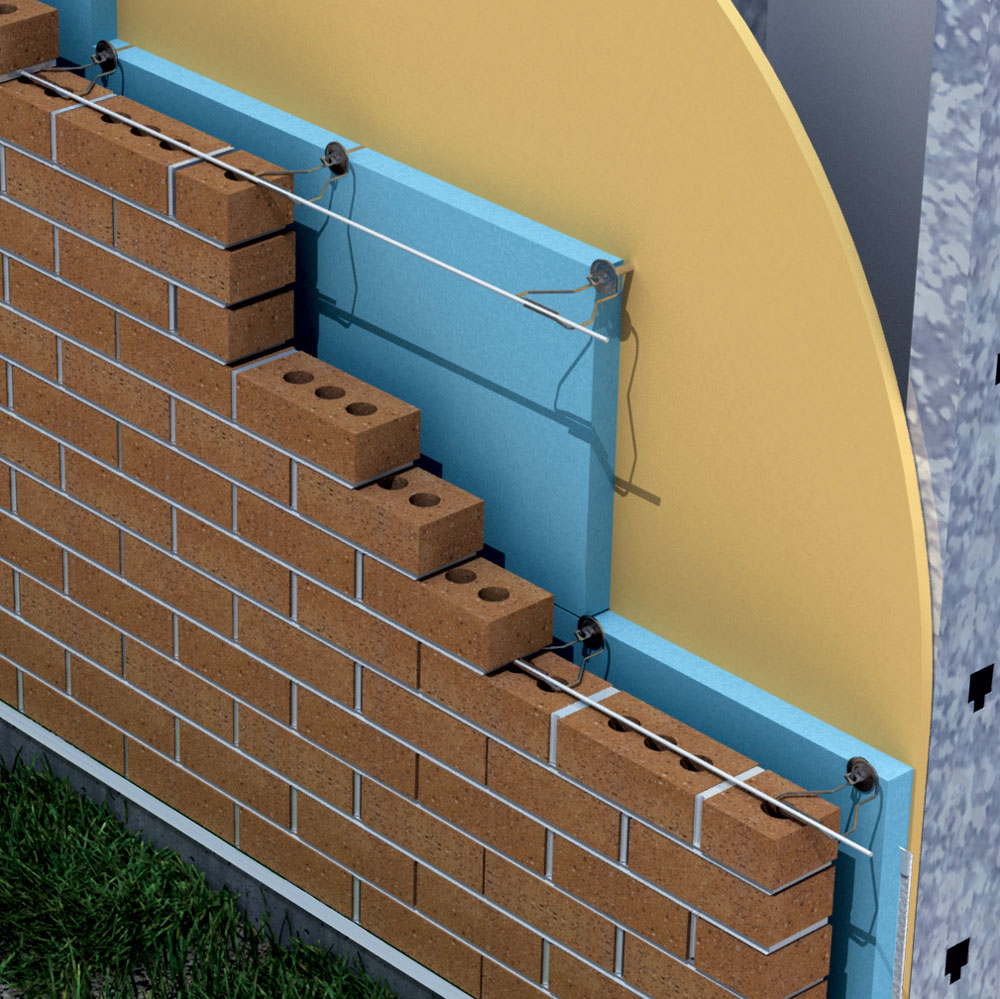

  • The projecting eyelet accepts a 3/16" x 3", 4" or 5" long 2-Seal Byna-Lok Wire Tie (see below) for the masonry veneer wall mortar joint. The 2-Seal Byna-Lok Wire Tie is adaptable for seismic zones with the simple addition of 9 gauge or 3/16" continuous wire (just drop into the integral track formed by the swaged, overlapping legs of the wire tie.)
  • U.S. Patent No. 8,037,653
  • Canadian Patent No. 2,690,819

Vertical Adjustability

1 1/4"

Sizes

5/8"1"1 1/2"2"2 1/2"3"3 1/2"4"4 1/2"5"5 1/2"6"6 1/2"

Backup Type

Metal Stud

Finishes/Materials

Polymer Coated with Zinc Alloy (Barrel)

Minimum Air Space Requirement

3/4"
