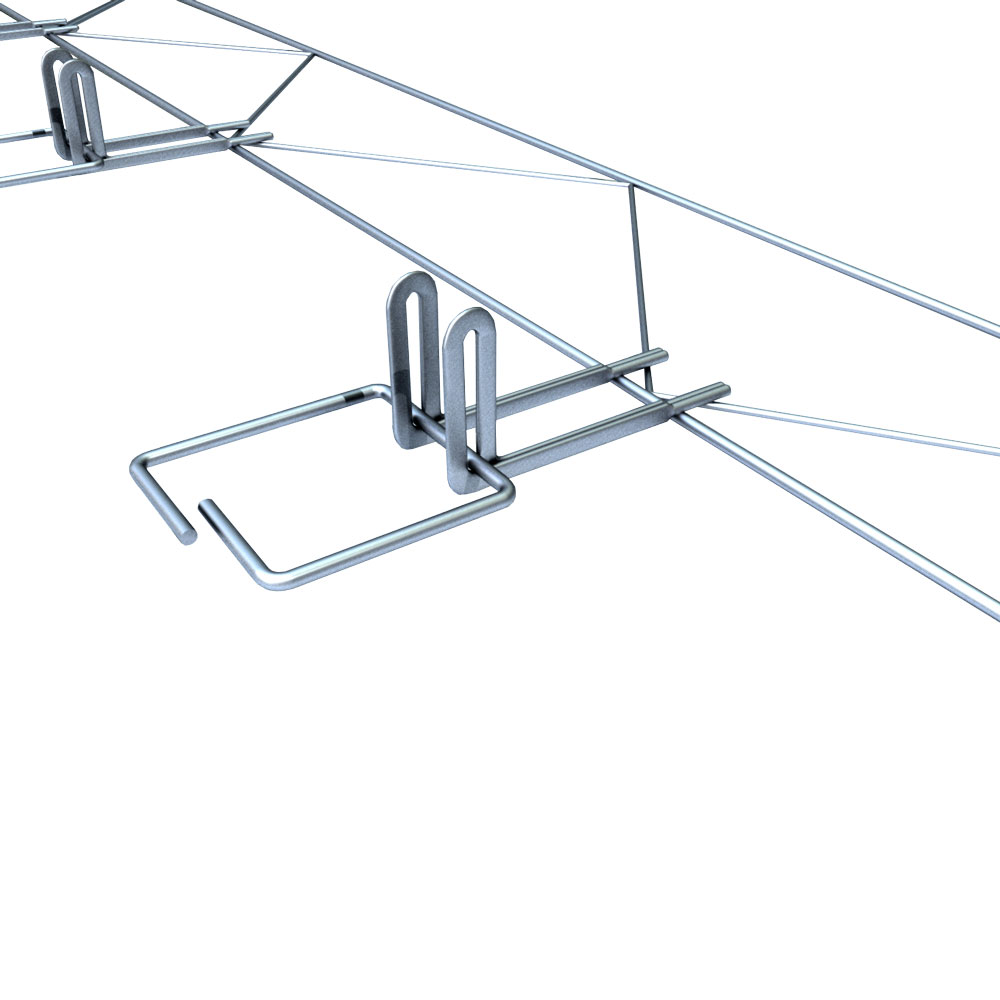

180 LOOP-LOK™ TRUSS REINFORCEMENT

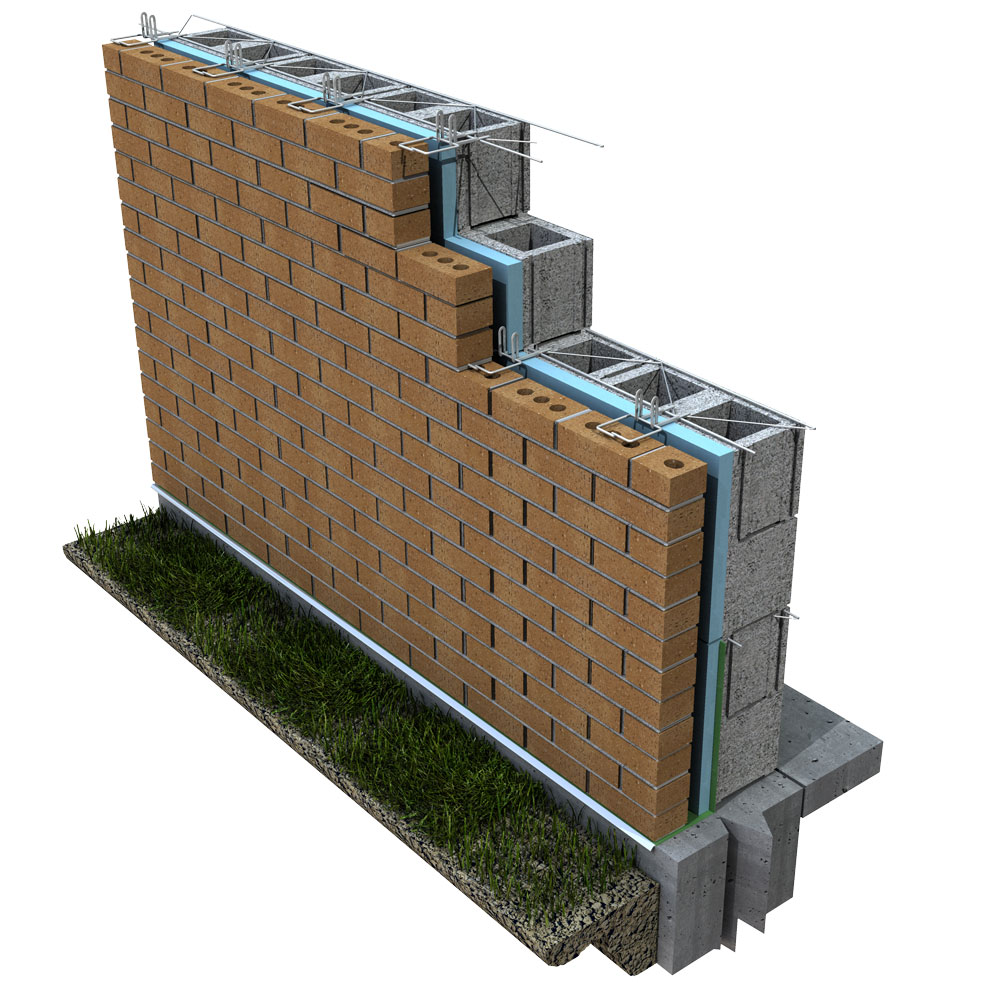

180 Dub'l Loop-Lok™ Truss allows in-plane vertical and horizontal movement of masonry wythes while restraining tension and compression.

• Loops welded shut to maintain allowable tolerance and system integrity.
• Unlike horizontal eyelets, vertical loops will not clog with mortar as construction progresses.
• Loops extend one direction only to allow simple placement of insulation.
• 100% protection against separation of Wire Tie from reinforcement.
• Also available with the Seismiclip® Interlock System (#180 S.I.S.), suitable for seismic zones.
• Fabricated in conformance with ASCE/ACI 530 building code requirements for masonry structures and ASTM A 951 (standard specification for masonry joint reinforcement).

GAUGES:

• Reinforcing for interior wythe can be STANDARD WEIGHT (9 ga side rods x 9 ga cross rods), EXTRA HEAVY (3/16" side rods x 9 ga Cross Rods), or SUPER HEAVY DUTY (3/16" side rods x 3/16" cross rods)
• Loops and Ties are 3/16" dia. standard.

AVAILABLE FINISHES:

• Mill Galvanized
• Hot Dip Galvanized
• Stainless Steel

NOTE:

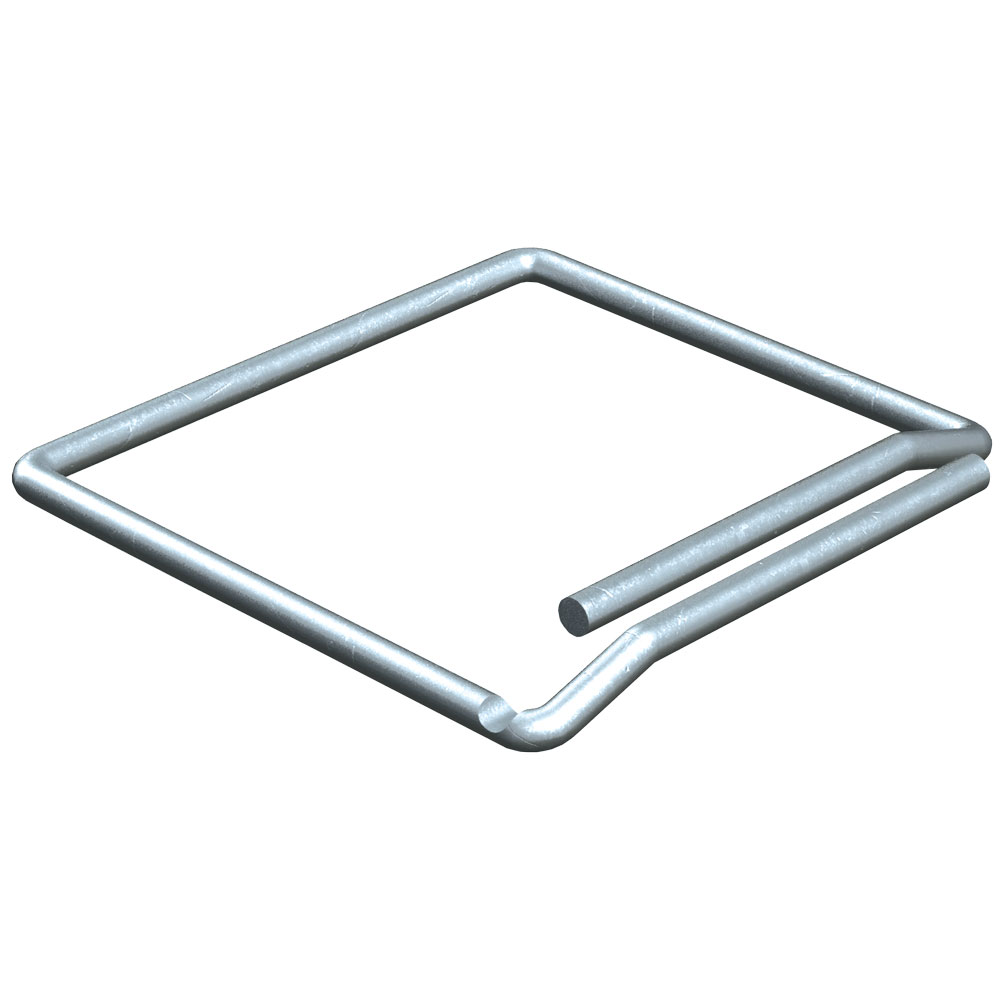

• For Seismic Applications see: 180 S.I.S. Dub'l Loop-Lok™ Seismiclip® Interlock System, 180-BL Dub'l Loop-Lok™ with Byna-Lok™ Wire Tie
