SLIP-SET™ STABILIZER CONTROL JOINT ANCHOR
Click on the text link below to download
Submital SheetsPDF Downloads
Click on the text link below to download
Safety Data SheetsPDF Downloads
Click on the text link below to download
LEEDPDF Downloads
Click on the text link below to download
CADZIP Downloads
The Slip-Set™ Stabilizer bonds masonry walls and restrains lateral (shear) movements while allowing expansion and control joints to perform as designed

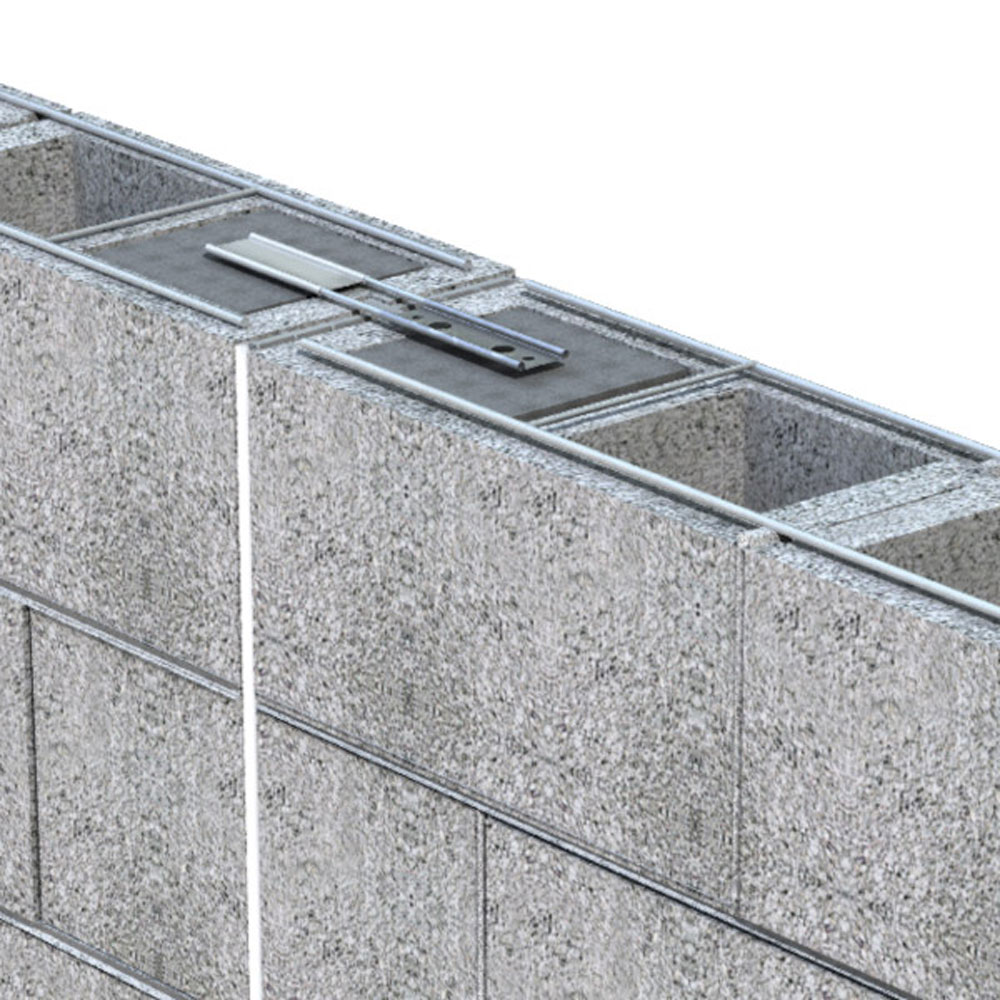

- Slide tube onto rods in field. When installed into mortar joint, rods will be free to slide in tube to allow control joints to perform, yet unwanted lateral movement will be restrained
- Use style 'H' to connect level horizontal mortar joints.

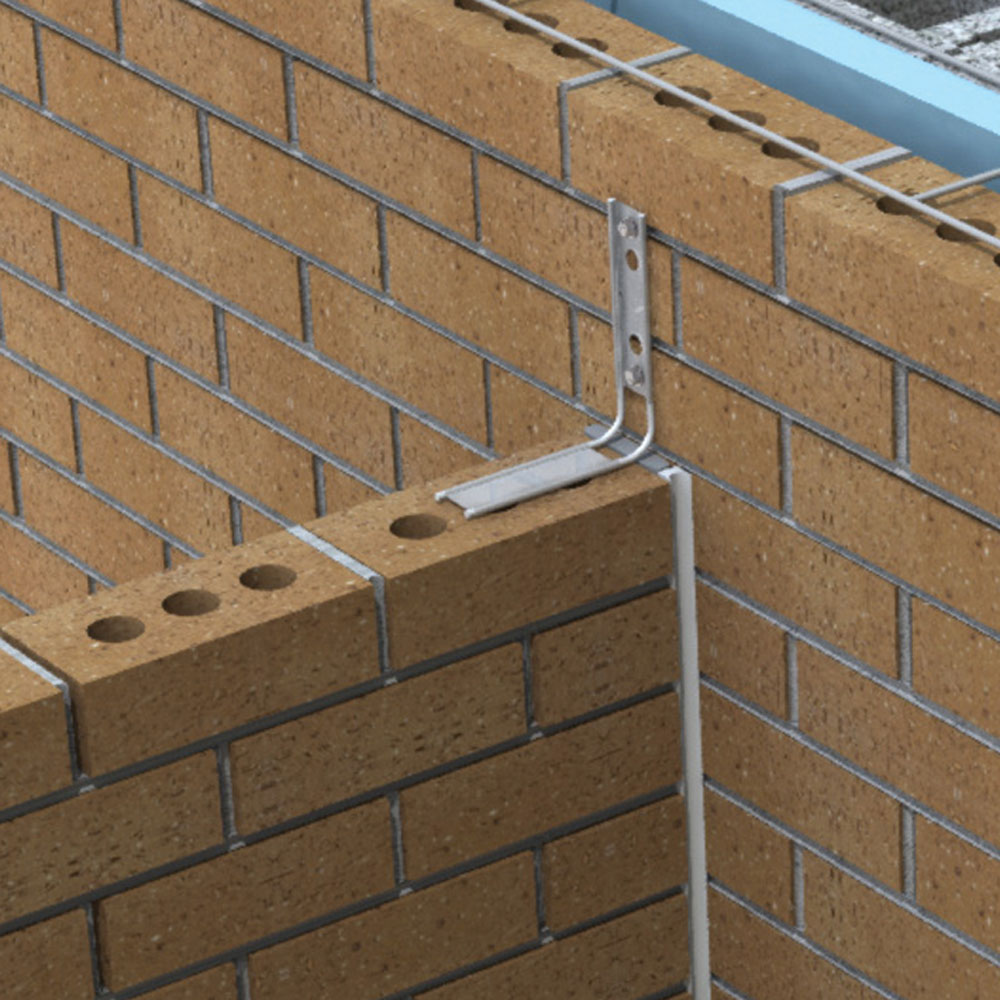

- Field bend to connect intersecting walls or new walls to existing walls.
GAUGES:

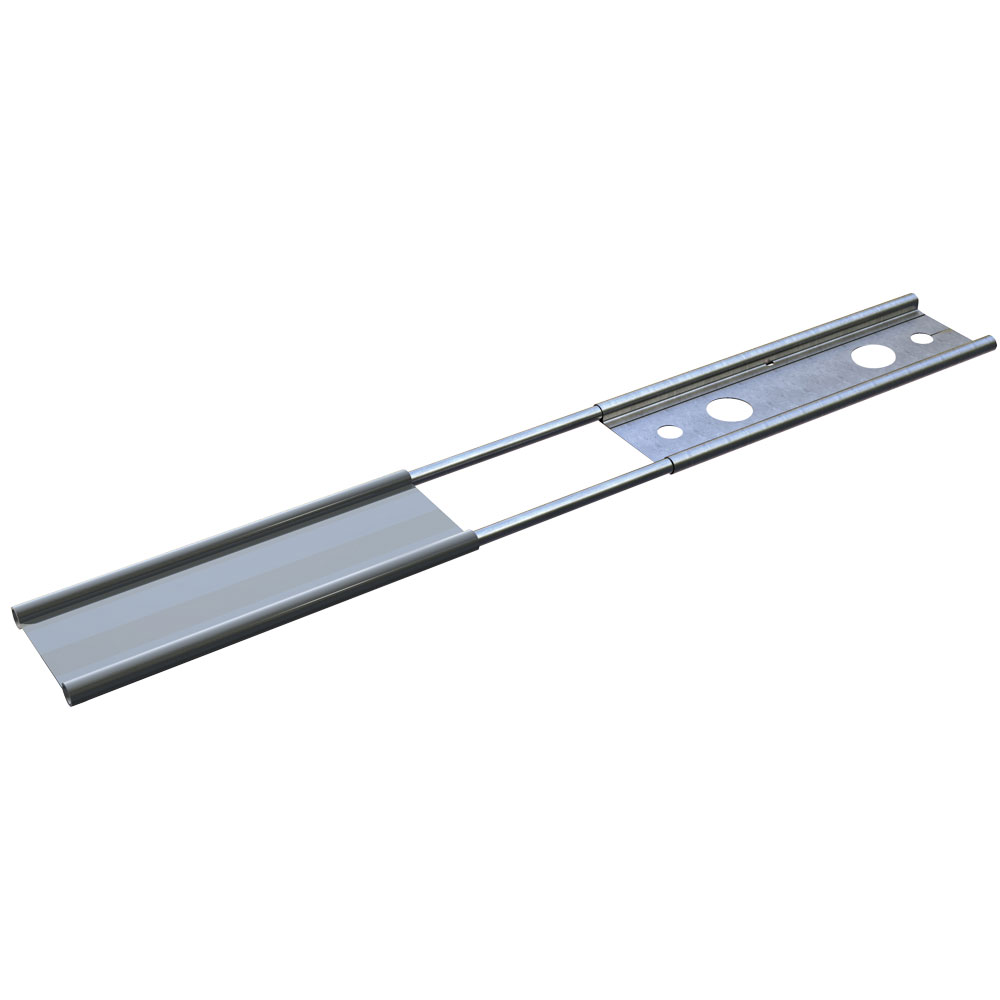

- Metal end piece with two integrated 9 gauge rods and a 4" long loose PVC "Slip-Tube"
AVAILABLE FINISHES:
- Mill Galv./Hot Dip Galv./Stainless Steel
Mill Galvanized x PVC Slip TubeHot-Dip Galvanized x PVC Slip TubeStainless Steel x PVC Slip TubeStainless Steel x SS Slip Tube
